Construction Views - Toshiba RAV-182B-PE Service Manual

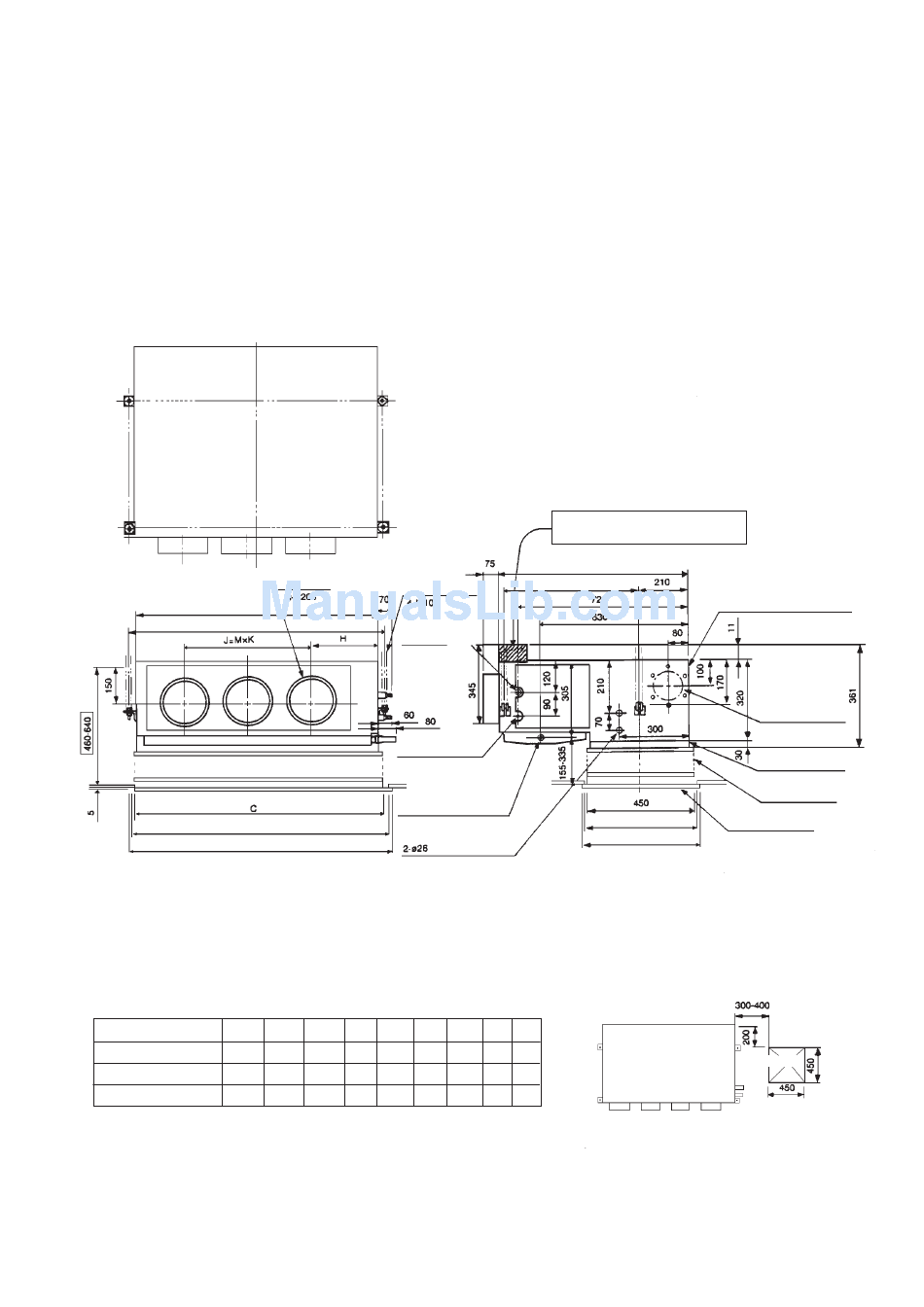

2.1 Indoor unit
RAV-182B-PE
RAV-242B-PE
RAV-362B-PE
RAV-462B-PE
Unit dimension: A
Hanging bolt pitch: B
Ceiling opening: D
Panel outer dimension: E
Model A
RAV-182B-PE 700
1000
RAV-242B-PE
RAV-362/462B-PE 1350
Tel: 01823 665660
Heronhill - for all your Toshiba requirements

2. CONSTRUCTION VIEWS

Air outlet
Hanging bolt
Povided at site
Refrigerant pipe
connection port
(Larger side ø F)
Refrigerant pipe
connection port
(Smaller side ø G)
Drain pipe connection port
(Inner diameter: 32)
(Port diameter: 25 nominal,
for PVC pipes)
Wiring connection port
B F G H J
750 12.7 6.4 252 280
1050 15.9 9.5 252 580
1400 19.0 9.5 252 930
www.heronhill.co.uk
Thermal insulator height 11mm
around supply air port
Unit dimension: 800
Hanging bolt pitch: 565
Ceiling opening: 470
Panel outer dimension: 500
Ensure that there is sufficient space around the
indoor units for installation and servicing.
(Unit: mm)
K M N
280 1 2
290 2 3
310 3 4
- 11 -
6-ø4 Mounting screw hole ø 160
ø 125 Knockout
hole (rear)
(Fresh air inlet)
Long-life filter kit
(Option)
Suction canvas
(Option)
Ceiling panel
(Option)
[Indoor unit]
Inspection hole
Provide an inspection
hole around here.
