Technical guide
Vitosol 100
Type s2.5
Vitosol 200
Viessmann solar panels
the right solution for every application
Using solar energy to heat domestic hot water and to provide
central heating backup
5822 135 6 GB
5/2004
Vitosol 100
Type 5DI
Vitosol 250
Vitosol 100

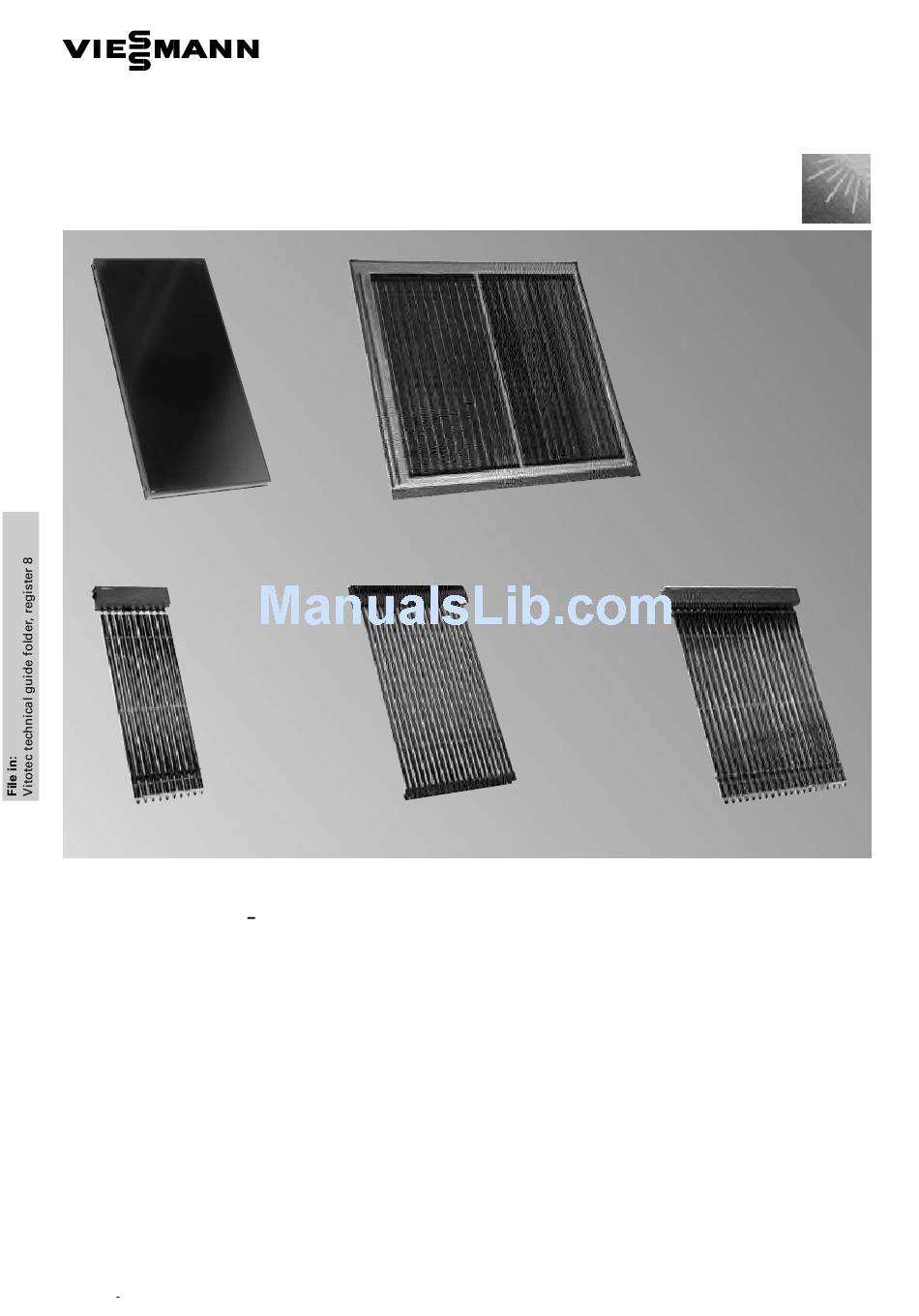

Flat collector
for installation on flat and pitched roofs, for roof integration
and for freestanding installation
Large area flat collector
for roof integration on pitched roofs with roof tiles
Vitosol 200
Direct flow vacuum tube collector for installation on pitched and
flat roofs and on walls
Vitosol 250
Highly efficient direct flow vacuum tube collector for installation
on pitched and flat roofs and on walls
Vitosol 300
Vacuum tube collector, based on the heat pipe principle, for
installation on pitched and flat roofs and for freestanding installation
VITOSOL
Vitosol 300
