The Polycom CX5000 device

Inspect the Polycom CX5000 device and become familiar with its components, as
shown below in Figure 3.

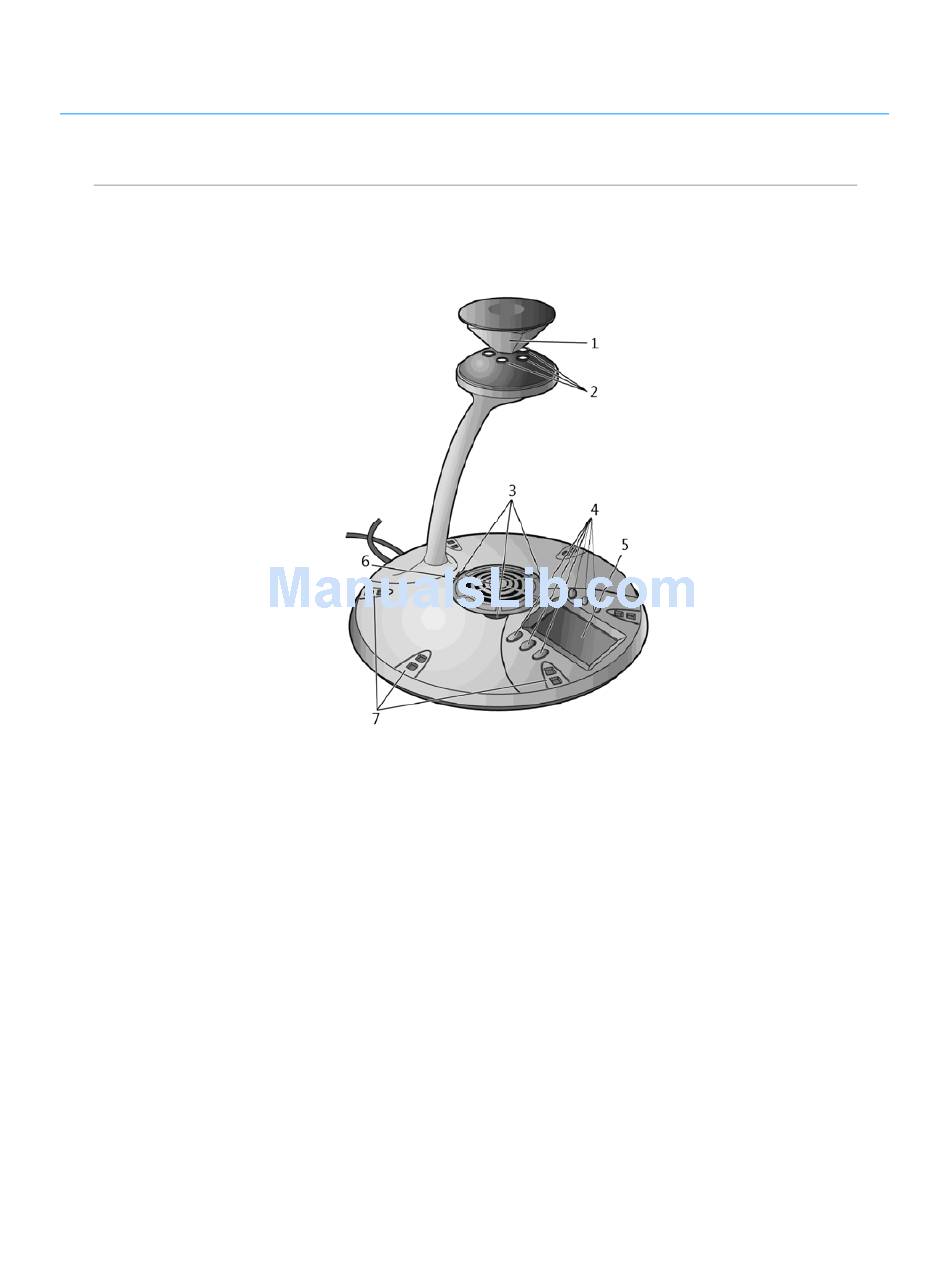

Figure 3. Polycom CX5000 device
1. Mirrors. Five mirrors reflect the light into the cameras.
2. Cameras. Five small cameras capture the images from around the
3. Light-emitting diode (LED) status lights. Three status lights
4. Control buttons. Six buttons control speaker volume, mute, phone on/off
5. Liquid crystal display (LCD) touch screen. The LCD dial pad works just
6. Loudspeaker. A centrally located loudspeaker provides the audio
7. Microphones. Six microphones located every 60
room.
indicate phone connection, audio/video activity, mute, and incoming
calls.
hook, flash, and information.
like your phone pad for ease of dialing and quick view of call status.
received from the remote conference.
device pick up the audio in the room.
°
around the
