ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tools, assembly requires a Phillips screwdriver
wrench , and a rubber mallet

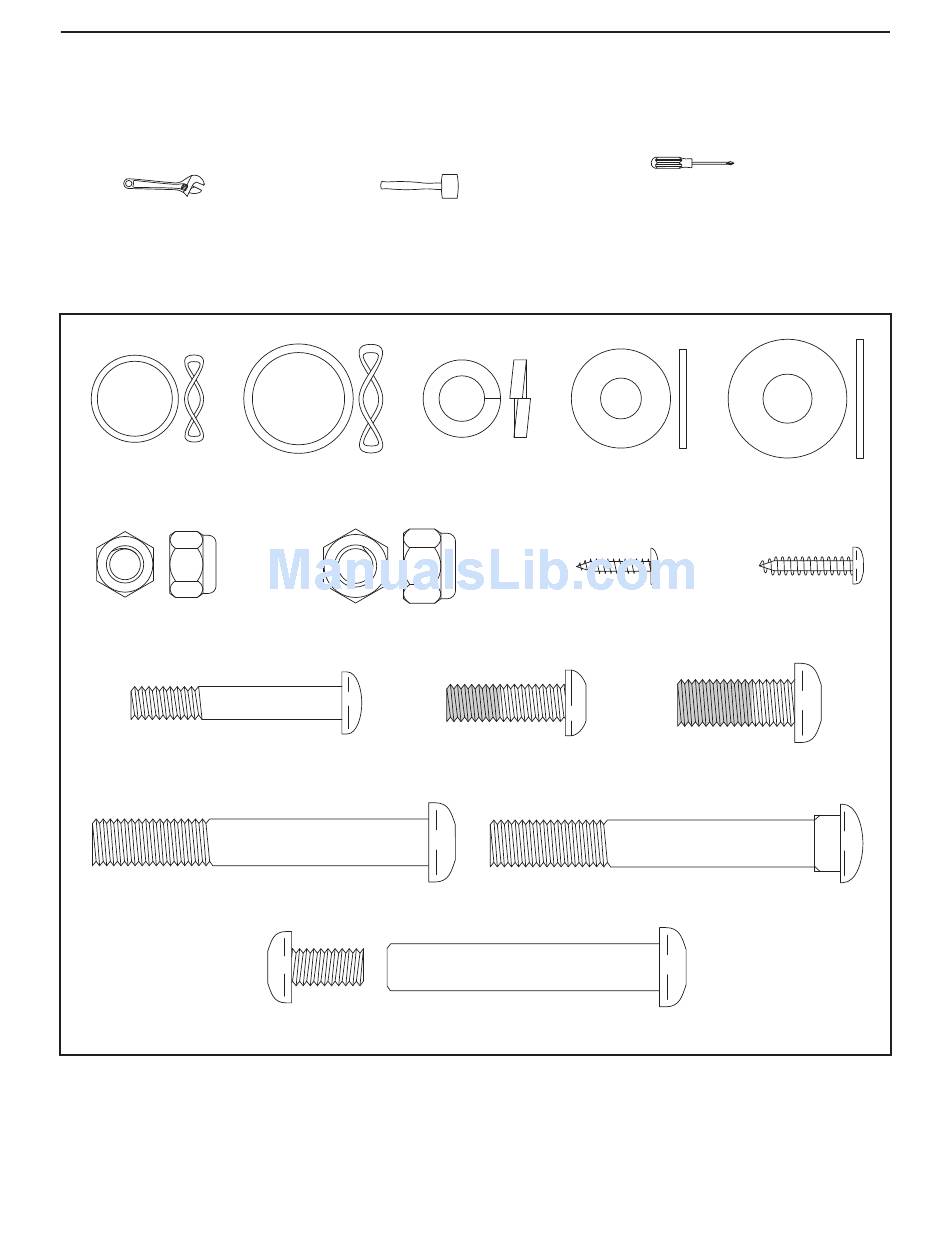

Use the drawings below to identify the small parts used for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled.
Wave Washer
(43)–2
M8 Locknut (38)–8
M8 x 45mm Button Bolt (50)–4
M10 x 74mm Button Bolt (28)–2
23mm Wave
Washer (81)–2 Washer (59)–5
M10 Locknut (33)–6
M10 Bolt Set (74)–2
.
M10 Split Upper Body Arm
Washer (55)–2
M4 x 16mm
Screw (52)–4
M8 x 25mm Patch
Screw (56)–2
M10 x 75mm Carriage Bolt (34)–4
5
, an adjustable
Spring Bracket
Washer (35)–2
M4 x 19mm
Screw (26)–2
M10 x 25mm Patch
Screw (40)–5
