Part Names

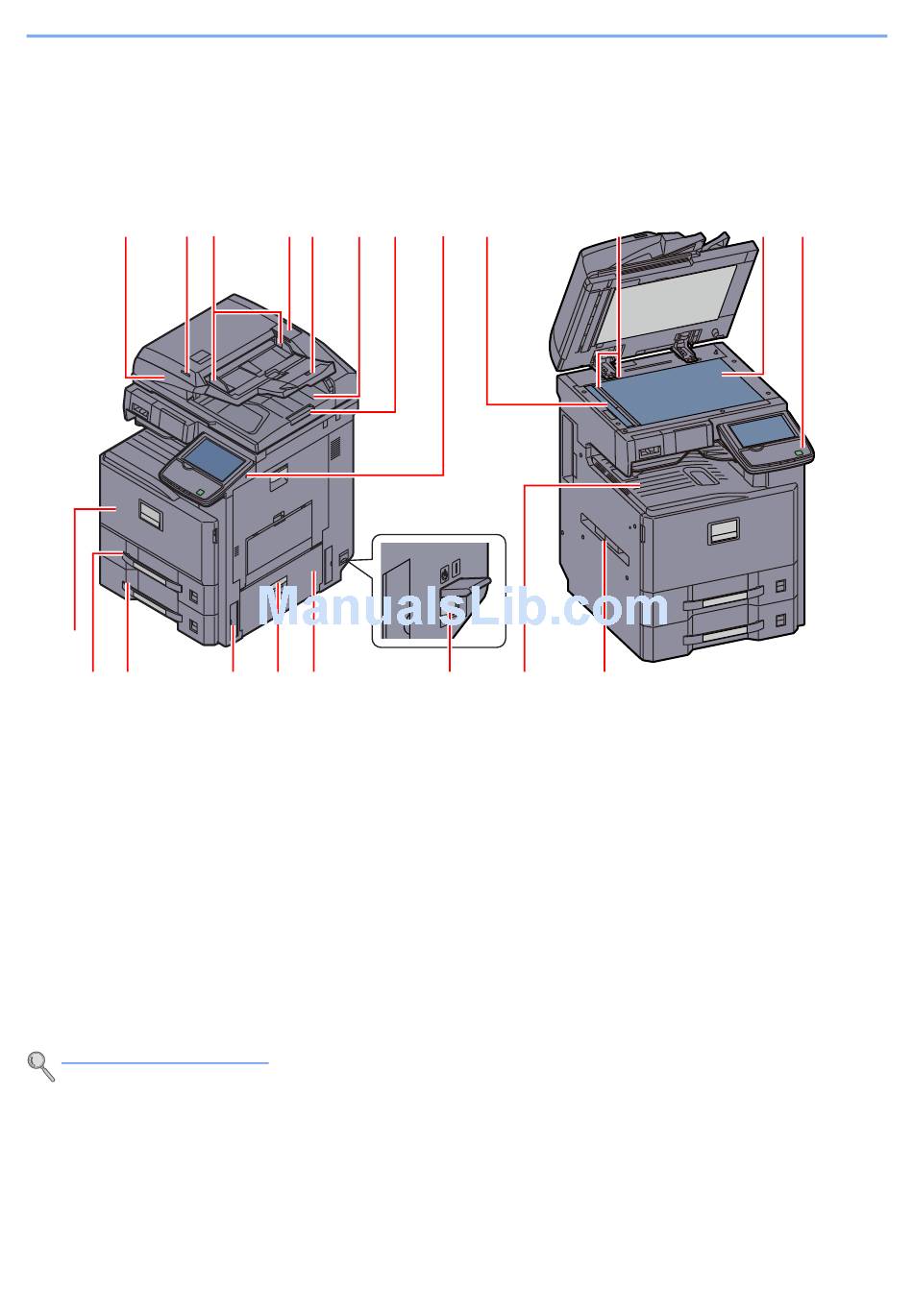

Machine Exterior

1 2
13
14 15
1 Document Processor (Option)
2 Original Loaded Indicator
3 Original Width Guides
4 Cleaning Cloth Compartment
5 Original Table
6 Original eject table
7 Original stopper
8 USB Port (A1)
9 Slit Glass
10 Original Size Indicator Plates
Optional Equipment (page 11-2)
3 4 5 6 7
16 17 18
8 9 10
19 20 16
11 Platen
12 Operation Panel
13 Front Cover
14 Cassette 1
15 Cassette 2
16 Handles
17 Right Cover 2 Handle
18 Right Cover 2
19 Main Power Switch
20 Inner Tray
