Troubleshooting Of Card Loading Error - Epson Stylus Photo R1800 Service Manual

EPSON Stylus Photo R1800/R2400
Occurrence
Phenomenon Detail
Timing
During printing Printing starts but paper is not
fed.
The card size paper is loaded
correctly, but Card Loading
Error is displayed.
Troubleshooting

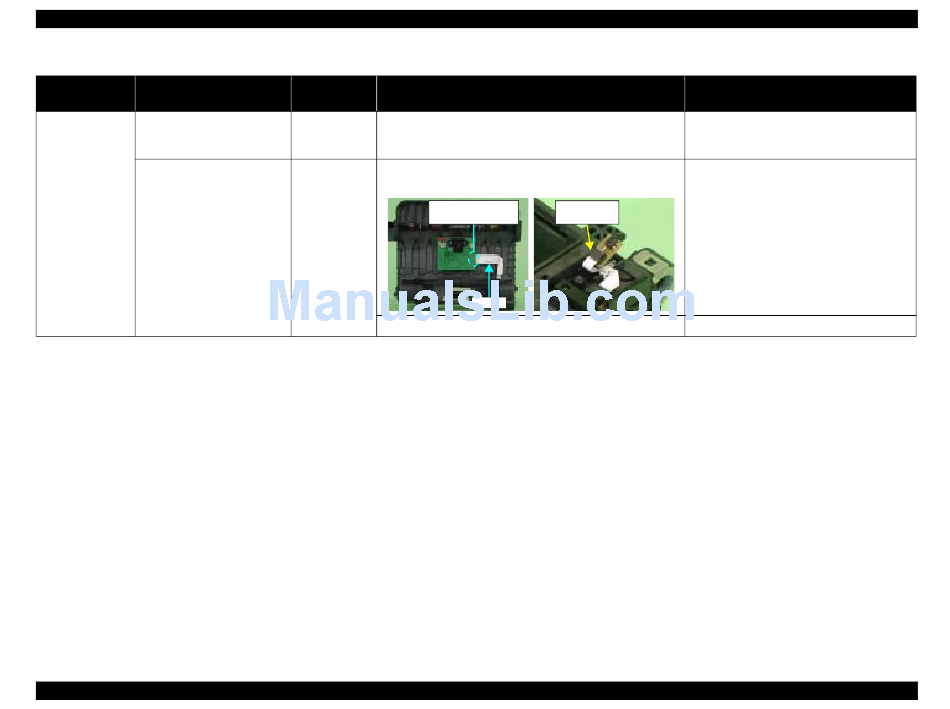

Table 3-6. Troubleshooting of Card Loading Error
Faulty Part/
Part Name
– 1. Check that the card size paper is loaded in the portrait
orientation.
PW sensor 1. Check that the PW Sensor FFC is connected to the CR
Encoder Board and PW Sensor Connectors.
CR Encoder Board
Connector
2. Check the PW Sensor or PW Sensor FFC for damages.
Overview
Check Point
PW Sensor
Connector
FFC
Revision B
Remedy
1. Load the cards of the same size correctly,
and press the Paper Switch to eject the
jammed paper.
1. Connect the FFC to the CR Encoder Board
or PW Sensor.
2. Replace the PW Sensor with a new one.
45
