EPSON Stylus Photo R1800/R2400
6. Remove the two C.B.S. M3 x 6 screws that secure the Ink System Unit.
Front
1

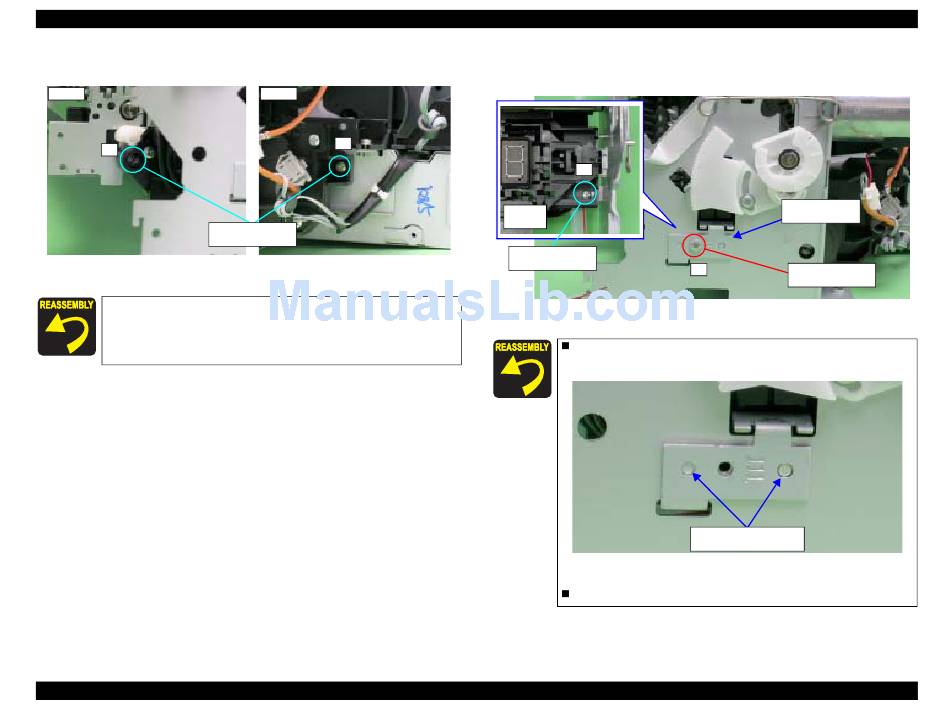

Figure 4-98. Screws that Secure the Ink System Unit
Tighten the screws in the order shown in
Disassembly And Assembly
Rear
2
2) C.B.S. 3x6
(8±1 kgf.cm)
Figure 4-98.
7. Remove the two C.B.S. M3 x 6 screws that secure the Right Support
Frame, and remove the Right Support Frame from the Main Frame.
2
Upper
surface
2) C.B.S. 3x6
(8±1 kgf.cm)
Figure 4-99. Removing the Right Support Frame
Align the positioning holes on the Right Support Frame
with the Guide Pins on the Main Frame.
Figure 4-100. Installing the Support Frame (Right)
Tighten the screws in the order shown in
Disassembly
Revision B
Right Support
Frame
2) C.B.S. 3x6
1
(8±1 kgf.cm)
Positioning Holes and
Guide Pins
Figure 4-99.
110
