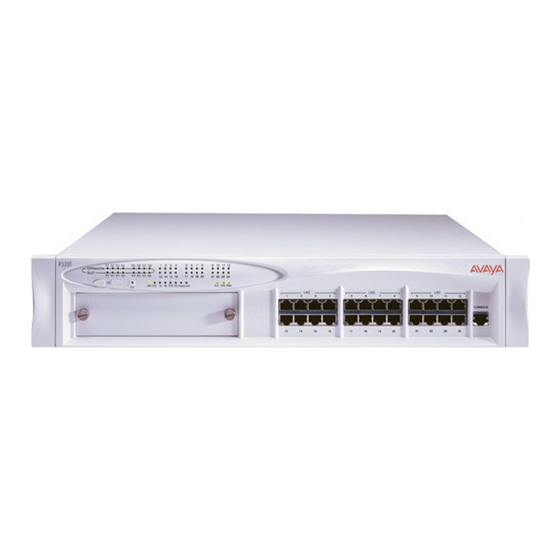

Avaya
Installation and Configuration Guide
A
P333T-PWR
VAYA
-
P
E
S
S
OWER OVER
THERNET
TACKABLE
WITCH
S
V
4.0
OFTWARE
ERSION
April 2003

Advertisement

Table of Contents
loading

Related Manuals for Avaya P333T-PWR

Summary of Contents for Avaya P333T-PWR

  • Page 1 Avaya Installation and Configuration Guide P333T-PWR VAYA OWER OVER THERNET TACKABLE WITCH OFTWARE ERSION April 2003...

  • Page 3: Table Of Contents

    Avaya P333T-PWR Overview ................1 Introduction ......................1 Avaya P330 Family Features ................1 Avaya P333T-PWR Power Over Ethernet Stackable Switch ....... 2 Load Detection ..................2 Avaya P330 Network Management ..............2 Avaya P330 Device Manager (Embedded Web) ........ 2 Avaya P330 Command Line Interface (CLI) ........
  • Page 4 Stacking Switches (Optional)................21 Installing the X330STK Stacking Sub-module in the P330 ....21 Connecting Stacking Sub-modules .............21 Installing Expansion Sub-modules ..............24 Installing the Expansion Sub-module into the Avaya P330 ...24 Making Connections to Network Equipment ..........25 Prerequisites ..................25 Port Types ....................25 Chapter 6 Powering Up the Avaya P330.................
  • Page 5 Establishing Switch Access................39 Establishing a Serial Connection ..............39 Configuring the Terminal Serial Port Parameters ......39 Connecting a Terminal to the Avaya P330 Serial port ....39 P330 Sessions ....................40 Assigning P330’s IP Stack Address ............... 40 Establishing a Telnet Connection ..............
  • Page 6 Ethernet Configuration CLI Commands ...........60 Ethernet Implementation in the Avaya P333T-PWR .......61 Power Over Ethernet Stackable Switch............62 Load Detection ..................62 How the P333T-PWR Detects a Powered Device ....62 Specific Resistance Signature (IEEE 802.3af) ......63 Capacitor Signature ..............63 PD Connected ................63 “Plug and Play”...
  • Page 7 MAC Security CLI Commands ............81 LAG........................83 LAG Overview ..................83 LAG CLI Commands ................83 LAG Implementation in the Avaya P330 Family of Products ..84 Port Redundancy ..................... 85 Port Redundancy Operation ............... 85 Intermodule Port Redundancy ............86 Port Redundancy CLI Commands .............
  • Page 8 Table of Contents Adding an Expansion Sub-module to Avaya P330 ......103 Replacing an Existing Expansion Sub-module .......103 Saving Configuration Definitions .........104 Without Saving Configuration Definitions ......104 Replacing the Stacking Sub-module............104 Chapter 18 Updating the Software .................. 105 Software Download ..................105 Obtain Software Online ..............105...

  • Page 9: Safety Information

    Changes or modifications to this equipment not expressly approved by Avaya Inc. could void the user’s authority to operate the equipment. Conventions Used in the Documentation...

  • Page 10: Notes, Cautions And Warnings

    You should ensure that you are qualified for this task and have read and understood all the instructions © 2003 Avaya Inc. All rights reserved. All trademarks identified by the ® or TM are registered trademarks or trademarks, respectively, of Avaya Inc. All other trademarks are the property of their respective owners.

  • Page 11: Overview Of The P330

    Avaya P333T-PWR VAYA 1: O P330 ECTION VERVIEW OF THE...

  • Page 13: Chapter 1 Avaya P333T-Pwr Overview

    Ethernet, Fast Ethernet, and Gigabit Ethernet connectivity. An Avaya P330 stack can contain up to 10 switches and up to 3 backup power supply units. The stacked switches are connected using the Avaya X330STK stacking Modules which plug into a slot in the back of the Avaya P330. They are connected using the X330SC or X330LC cable (if the stack is split between two racks).

  • Page 14: Avaya P333T-Pwr Power Over Ethernet Stackable Switch

    The P333T-PWR is pre-configured to supply power according to the automatic load detection process, so you can use it right out of the box.

  • Page 15: Avaya Multi-Service Network Manager™ (Msnm)

    Avaya P333T-PWR Overview Avaya Multi-Service Network Manager™ (MSNM) When you need extra control and monitoring or wish to manage other Avaya network equipment, then the Avaya Multi-Service Network Manager network management suite is the answer. This suite provides the ease-of-use and features necessary for optimal network utilization.
  • Page 16 Chapter 1 Avaya P333T-PWR Overview management. Avaya P333T-PWR User’s Guide...

  • Page 17: Chapter 2 Standards And Compatibility

    Chapter 2 Standards and Compatibility Avaya P330 Standards Supported The Avaya P330 complies with the following standards. IEEE • 802.3x Flow Control on all ports • 802.1Q VLAN Tagging support on all ports • 802.1p Priority Tagging compatible on all ports •...
  • Page 18 SMON (RFC 2613) support for groups — Data Source Capabilities — Port Copy — VLAN and Priority Statistics • Bridge MIB Groups - RFC 2674 — dot1dbase and dot1dStp fully implemented. — Support for relevant MIB objects: dot1q (dot1qBase, dot1qVlanCurrent) Avaya P333T-PWR User’s Guide...

  • Page 19: Chapter 3 Specifications

    Inline Power Supply Requirements Input voltage 44 to 56 VDC Power dissipation 400 W max - external power source Input current 15 A max Environmental Operating Temp. -5 to 50°C (23 to 122°F) Relative Humidity 5% to 95% non-condensing Avaya P333T-PWR User’s Guide...

  • Page 20: Safety

    Approved according to: • CLEI Code: According to Tecordia (Bellcore) KS-22022 Standard • NEBS Level 3 (optional mounting brackets) Interfaces • • RS-232 for terminal setup via RJ45 connector on front panel. Basic MTBF • 140,000 hrs minimum Avaya P333T-PWR User’s Guide...

  • Page 21: Stacking Module

    1000Base-SX X330L1 1000Base-LX Laser Safety The Avaya X330S1/S2 multi-mode transceivers and the Avaya X330L1/X330L2 single mode transceivers are Class 1 laser products. They comply with IEC 825-1 and Food and Drug Administration (FDA) 21 CFR 1040.10 and 1040.11. The transceivers must be operated under recommended operating conditions.

  • Page 22: Laser Classification

    Transmit power (9 µm SMF): Min. -9.5 dbm, Max. -3 dbm Transmit power (62.5 µm and 50 µm MMF): Min. -11.5 dbm, Max. -3 dbm Receive power (9 µm SMF, 62.5 µm and 50 µm MMF): Min. -20 dbm, Max. -3 dbm Avaya P333T-PWR User’s Guide...

  • Page 23: Fast Ethernet Fiber Expansion Module

    Fast Ethernet Fiber Expansion Module Table A.3 Fiber Fast Ethernet Expansion Module Number of Name Interface Ports X330F2 100Base-FX Ethernet/Fast Ethernet Expansion Module Table A.4 Ethernet/Fast Ethernet Expansion Module Number of Name Interface Ports X330T16 10/100Base-T Avaya P333T-PWR User’s Guide...

  • Page 24: Gbic Expansion Module

    The Avaya X330G2 Expansion Module is the GBIC (1.25 Gbit/s Gigabit Ethernet) Expansion Module for the Avaya P330 family of stackable switches. Note: In order to use this module the Avaya P330 switch must must have Embedded S/W Version 2.2 or higher.

  • Page 25: Avaya Approved Gbic Transceivers

    Chapter 3 Avaya Approved GBIC Transceivers Caution: All Avaya approved GBICs are 5V. Do not insert a 3.3V GBIC. Avaya supplies the following two GBIC transceivers for the Avaya P330 X330G2 Expansion Modules. You can order these directly from your local Avaya...

  • Page 26: Agency Approval

    500m, Multimode fiber, can also be OC-3 reduced range • X330-OC12S1: 15 km, Single-mode fiber, can also be OC-3 The ATM Modules can be installed in the following Avaya P330 Family switches: • Avaya P333T Hardware Version C/S 1.3 and higher, with Embedded S/W 2.4 and higher.

  • Page 27: Safety Information

    WAN Expansion Modules Avaya X330WAN is a series of WAN Edge Router expansion modules for the P330 Stackable Switching System . X330WAN enables you to connect your Avaya P330 switch to a WAN. X330WAN is part of Avaya’s Converged Networks Solution that includes IP telephones, data switches and IP exchanges.
  • Page 28 The X330W-2USP contains 2 USP (Universal Serial Ports), one 10/100Base-T Fast Ethernet port and one Console port. An Avaya P330 stack can have X330WAN access router modules inserted in each of the switches in the stack with an expansion slot. A maximum stack configuration of 10 P334T switches using the X330WAN provides 490 Fast Ethernet 10/100 ports, and 20 E1/T1 or USP ports.

  • Page 29: Installing The P330

    Avaya P333T-PWR VAYA 2: I P330 ECTION NSTALLING THE...

  • Page 31: Chapter 5 Installation

    Philips (cross-blade) screwdriver Site Preparation Avaya P330 can be mounted alone or in a stack in a standard 19-inch equipment rack in a wiring closet or equipment room. Up to 10 units can be stacked in this way. When deciding where to position the unit, ensure that: •...

  • Page 32: Rack Mounting (Optional)

    Input current 5.3 A Rack Mounting (Optional) The Avaya P330 case fits in most standard 19-inch racks. Avaya P330 is 2U (88mm, 3.5”) high. Place the Avaya P330 in the rack as follows: Snap open the hinged ends of the front panel to reveal the fixing holes.

  • Page 33: Stacking Switches (Optional)

    Gently tighten the two screws on the side panel of the stacking sub-module by turning them. Note: The Avaya P330 switch must not be operated with the back-slot open; the stacking sub-module should be covered with the supplied blanking plate if necessary.
  • Page 34 Octaplane cable and one black redundancy cable. Figure 5.2 shows an incorrect connection. Note: You can build a stack of up to 10 Avaya P330 switches. If you do not wish to stack all the switches in a single rack, use long Octaplane cables to connect two physical stacks as shown in Figure 5.3.
  • Page 35 Upper Unit Power Supply Power Supply Connector Connector BUPS BUPS Connector Connector X330RC Cable to Cable to Cable to Cable to Lower Unit Upper Unit Lower Unit Upper Unit Power Supply Power Supply Connector Connector X330LC Avaya P333T-PWR User’s Guide...

  • Page 36: Installing Expansion Sub-Modules

    Gently tighten the two screws on the front panel of the expansion sub-module by turning them. Note: The Avaya P330 switch must not be operated with the expansion slot open; the expansion sub-module slot should be covered with the supplied blanking plate if necessary.

  • Page 37: Making Connections To Network Equipment

    (see below). Appropriate cables are available from your local supplier. Port Types Avaya P330 supports the following types of ports (according to the speed and standard they support): • LAN — 10/100Base-T, 100Base-FX, 1000Base-T 1000Base-SX and 1000Base-LX •...
  • Page 38 Chapter 5 Installation Table 5.3 Gigabit Ethernet Cabling Modal Maximum Minimum Gigabit Fiber Diameter Wavelength Bandwidth Distance Distance Interface Type (µm) (nm) (MhzKm) 1000BASE-SX 62.5 1000BASE-SX 62.5 1000BASE-SX 1000BASE-SX 1000BASE-LX 62.5 1310 1000BASE-LX 1310 1000BASE-LX 10,000 1310 Avaya P333T-PWR User’s Guide...

  • Page 39: Chapter 6 Powering Up The Avaya P330

    The P333T-PWR has two internal power supplies: one for the switching circuitry and one for the Inline power only. Connecting the P333T-PWR to the main electrical supply using the standard AC cable provides power to the switch and for the Inline power.

  • Page 40: Connecting An Additional/Backup Inline Power Supply Source

    However, in this case, no inline power can be supplied to the PDs (unless you connect the external DC power supply). The Avaya P333T-PWR performs a self test procedure (after every power-up or reset).

  • Page 41: Recommended Power Supply Redundancy Scheme

    The size of the two screws in the terminal block is M4. The pitch between each screw is 9.5mm. Connect the power cable to the external DC power supply. Warning: Make sure that you connect the cables between the P333T-PWR and the external power supply correctly: Positive (“+”) to positive (“+”) Negative (“-”) to negative (“-”)

  • Page 42: Budgeting Power

    This power shelf can house up to three 800W power supplies, yielding up to 2,400W of external power. It can provide up to 405W of power per P333T-PWR switch. In a fully populated power shelf configuration, you can provide additional power to 6 to 12 P333T-PWR switches.

  • Page 43: Post-Installation

    If you set the powerinline external power parameter to other values, you need to recalculate the number of switches supported accordingly. Note: Avaya P330 BUPS can support up to four P333T-PWR switches. If you are backing up more than 4 switches using the APC power shell, calculate the number of P330 BUPS units needed accordingly.
  • Page 44 Chapter 6 Powering Up the Avaya P330 Table 6.3 Post-Installation Indications Troubleshooting Procedure Indication Information Creating Stacks The LED next to the Page 102 appropriate connection (“Cable to upper unit” or “Cable to lower unit”) is lit. Installing Expansion The LEDs on the Expansion...

  • Page 45: Chapter 7 Avaya P333T-Pwr Front And Back Panels

    LAG Function LED is lit; if you then wish to select Rx then press the left button several times until the Rx function LED lights Figure 9.1 shows the Avaya P333T-PWR front panel. Figure 9.2 shows a detailed view of the LEDs (described in Table 7.1), pushbuttons, the Expansion Module slot, and the RJ-45 console connector at the bottom right.
  • Page 46 Chapter 7 Avaya P333T-PWR Front and Back Panels Figure 7.2 Avaya P333T-PWR LEDs Port LEDs EXPANSION SLOT LAG InPWR Hspd Left/Right and Reset (both) FIV Switch Function LEDs Switches Note: All LEDs are lit during a reset. Table 7.1 Avaya P333T-PWR LED Descriptions...
  • Page 47 Chapter 7 Avaya P333T-PWR Front and Back Panels Table 7.1 Avaya P333T-PWR LED Descriptions LED Name Description LED Status OFF – No collision or FDX port Collision ON – Collision occurred on line OFF – No transmit activity Transmit to line ON –...

  • Page 48: Avaya P333T-Pwr Back Panel

    LEDs on stack light up until buttons are released. Not in use. Note: The Port LEDs of the P333T-PWR are numbered from 1-24. Expansion Module ports are numbered from 51. Port LED numbers 49-50 are reserved. Avaya P333T-PWR Back Panel The Avaya P333T-PWR back panel contains a stacking Module slot, power supply and BUPS connectors.

  • Page 49: Bups Input Connector

    Avaya P333T-PWR Front and Back Panels BUPS Input Connector The BUPS input connector is a 5 VDC connector for use with the Avaya P330 BUPS unit only. A BUPS Input sticker appears directly to the right the BUPS input connector.
  • Page 50 Chapter 7 Avaya P333T-PWR Front and Back Panels Avaya P333T-PWR User’s Guide...

  • Page 51: Chapter 8 Establishing Switch Access

    Establishing a Serial Connection This section describes the procedure for establishing switch access between a terminal and the Avaya P330 switch over the serial port provided on the front panel of the P330 (RJ-45 connector labeled "Console"). Configuring the Terminal Serial Port Parameters The serial port settings for using a terminal or terminal emulator are as follows: •...

  • Page 52: P330 Sessions

    Establish a serial connection by connecting a terminal to the Master P330 switch of the stack. When prompted for a Login Name, enter the default name root When you are prompted for a password, enter the password root. You are now in Supervisor Level. Avaya P333T-PWR User’s Guide...

  • Page 53: Establishing A Telnet Connection

    Connect your station to the network. Verify that you can communicate with the Avaya P330 using Ping to the IP of the Avaya P330. If there is no response using Ping, check the IP address and default gateway of both the Avaya P330 and the station.

  • Page 54: Establishing A Modem (Ppp) Connection With The P330

    Supervisor Level. At the prompt, type: set interface ppp <ip_addr><net-mask> with an IP address and netmask to be used by the Avaya P330 to connect via its PPP interface. Note: The PPP interface configured with the set interface ppp command must be on a different subnet from the stack inband interface.

  • Page 55: Chapter 9 User Authentication

    User Authentication Introduction A secure system provides safeguards to insure that only authorized personnel can perform configuration procedures. In Avaya P330, these safeguards form part of the CLI architecture and conventions. Security Levels There are four security access levels – User, Privileged, Configure and Supervisor.

  • Page 56: Entering The Supervisor Level

    To remove a local user account no username Display the username, password show username and access type for all users on the switch Exiting the Supervisor Level To exit the Supervisor level, type the command exit. Entering the CLI Avaya P333T-PWR User’s Guide...

  • Page 57: Radius

    Introduction to RADIUS User accounts are typically maintained locally on the switch. Therefore, if a site contains multiple Avaya Switches, it is necessary to configure each switch with its own user accounts. Additionally, if for example a 'read-write' user has to be changed into a 'read-only' user, you must change all the 'read-write' passwords configured locally in every switch, in order to prevent him from accessing this level.

  • Page 58: Radius Commands

    Authentication request sent to RADIUS Server User name and password authenticated? Authentication Reject Perform log-in according sent to switch to user's priviliege level User cannot access switch to switch embedded managegment Radius Commands Avaya P333T-PWR User’s Guide...
  • Page 59 RADIUS authentication server Display all RADIUS authentication show radius authentication configurations. The shared secrets will not be displayed For a complete description of the RADIUS CLI commands, including syntax and output examples, refer to Avaya P330: Reference Guide. Avaya P333T-PWR User’s Guide...

  • Page 60: Allowed Managers

    Show whether the status of allowed show allowed managers status managers is enabled or disabled Show the IP addresses of the show secure current managers that are currently connected Avaya P333T-PWR User’s Guide...

  • Page 61: Configuration Of The P330

    Avaya P333T-PWR VAYA 3: C P330 ECTION ONFIGURATION OF THE...

  • Page 63: Chapter 11 Default Settings Of The P330

    Device Manager User’s Guide on the Documentation and Utilities CD. Avaya P330 Default Settings The default settings for the Avaya P330 switch and its ports are determined by the Avaya P330 software. These default settings are subject to change in newer versions of the Avaya P330 software.
  • Page 64 15 Minutes User Name/Password root/root Table 11.2 Default Port Settings Function Default Setting InLine Power Enabled Not Applicable Not Applicable InLine Power Not Applicable Not Applicable Priority Note: Functions operate in their default settings unless configured otherwise. Avaya P333T-PWR User’s Guide...

  • Page 65: Chapter 12 Basic Switch Configuration

    CLI session automatically logs out Display the number of minutes show logout before an inactive CLI session automatically times out Access Layer 3 configuration if not configure logged in as supervisor (see “User Authentication“ chapter) Avaya P333T-PWR User’s Guide...

  • Page 66: System Parameter Configuration

    Configure the basic mode of set device-mode operation of a module to either Layer 2 or Router Display the mode of operation show device-mode Display system parameters show system Display module information for all show module modules within the stack Avaya P333T-PWR User’s Guide...

  • Page 67: Network Time Acquiring Protocols Parameter Configuration

    IP address Display the current time show time Display the time status and show time parameters parameters Display the current time zone offset show timezone Get the time from the time server get time Avaya P333T-PWR User’s Guide...
  • Page 68 Chapter 12 Basic Switch Configuration Avaya P333T-PWR User’s Guide...

  • Page 69: Chapter 13 Avaya P330 Layer 2 Features

    Chapter 13 Avaya P330 Layer 2 Features This section describes the Avaya P330 Layer 2 features. It provides the basic procedures for configuring the P330 for Layer 2 operation. Overview The P330 family supports a range of Layer 2 features. Each feature has CLI commands associated with it.

  • Page 70: Fast Ethernet

    Chapter 13 Avaya P330 Layer 2 Features Fast Ethernet Fast Ethernet is a newer version of Ethernet, supporting data transfer rates of 100 Mbps. Fast Ethernet is sufficiently similar to Ethernet to support the use of most existing Ethernet applications and network management tools. Fast Ethernet is also known as 100BASE-T (over copper) or 100BASE-FX (over fiber).

  • Page 71: Flow Control

    Priority determines in which order packets are sent on the network and is a key part of QoS (Quality of Service). The IEEE standard for priority on Ethernet networks is 802.1p. Avaya P330 switches supports two internal priority queues – the High Priority queue and the Normal Priority queue. •...

  • Page 72: Cam Table

    Chapter 13 Avaya P330 Layer 2 Features • MM-MM-MM-SS-SS-SS The first half of a MAC address contains the ID number of the device manufacturer. These IDs are regulated by an Internet standards body. The second half of a MAC address represents the serial number assigned to the device by the manufacturer.

  • Page 73: Ethernet Implementation In The Avaya P333T-Pwr

    Clear all the CAM entries. clear cam Display the autopartition settings show autopartition Ethernet Implementation in the Avaya P333T-PWR This section describes the implementation of the Ethernet feature in the Avaya P333T-PWR: • Speed — 10/100 and 1G ports •...

  • Page 74: Power Over Ethernet Stackable Switch

    The P333T-PWR periodically checks all ports, powered and non-powered to check their status and the power status of connected devices. The P333T-PWR will supply power to a port only after it has detected a suitable PD (powered device) is connected to the port. The check consists of the P333T-PWR looking for a signature from the device that indicates it needs to supply power.

  • Page 75: Specific Resistance Signature (Ieee 802.3Af)

    Specific Resistance Signature (IEEE 802.3af) The P333T-PWR applies a low voltage to the power feed pairs and measures the current. A resistance of 19kΩ to 26.5kΩ is considered valid according to the IEEE standard; if a valid signature is detected, power is supplied to the port. If not, Capacitor Signature verification is performed.

  • Page 76: Powering Devices

    The disconnected port is then scanned as well. Powering Devices The P333T-PWR ports can receive Inline power from one of two sources: an internal -48VDC power supply or an external DC power supply. Each port can supply up to 16.5W by default.

  • Page 77: Power Over Ethernet Cli Commands

    IP telephones, wireless network access devices and Web cameras. Figure 13.2 Powered Ethernet Application Both the data and power paths from the Avaya P333T-PWR to the PBX are backed- up. Using LAGs for data with UPSs (Uninterruptible Power Supplies) for power ensures non-stop IP communications.
  • Page 78 Chapter 13 Avaya P330 Layer 2 Features In order to... Use the following command... Update the inline software copy tftp SW_powerinline_image application from a TFTP server to the memory of a designated switch Show the current version of the show powerinline_image_version...

  • Page 79: Vlan Configuration

    Chapter 13 Avaya P330 Layer 2 Features VLAN Configuration VLAN Overview A VLAN is made up of a group of devices on one or more LANs that are configured so that they operate as if they form an independent LAN, when in fact they may be located on a number of different LAN segments.

  • Page 80: Vlan Tagging

    Chapter 13 Avaya P330 Layer 2 Features Marketing (Mktg). Each VLAN has several physical ports assigned to it with PC’s connected to those ports. When traffic flows from a PC on the Sales VLAN for example, that traffic is only forwarded out the other ports assigned to that VLAN.

  • Page 81: Ingress Vlan Security

    Chapter 13 Avaya P330 Layer 2 Features three available Port Multi-VLAN binding modes are: • Bind to All - the port is programmed to support the entire 3K VLANs range. Traffic from any VLAN is forwarded through a port defined as “Bind to All”.
  • Page 82 Chapter 13 Avaya P330 Layer 2 Features The following table contains a list of the CLI commands for the VLAN feature. The rules of syntax and output examples are all set out in detail in the Reference Guide. Table 13.2 VLAN CLI Commands In order to...

  • Page 83: Vlan Implementation In The Avaya P333T-Pwr

    Chapter 13 Avaya P330 Layer 2 Features VLAN Implementation in the Avaya P333T-PWR This section describes the implementation of the VLAN feature in the Avaya P333T- PWR: • No. of VLANs — 1024 tagged VLANs ranging from 1 to 3071...

  • Page 84: Port Based Network Access Control (Pbnac)

    Chapter 13 Avaya P330 Layer 2 Features Port Based Network Access Control (PBNAC) Port Based Network Access Control (IEEE 802.1X) is a method for performing authentication to obtain access to IEEE 802 LANs. The protocol defines an interaction between 3 entitites: •...

  • Page 85: Configuring The P330 For Pbnac

    Chapter 13 Avaya P330 Layer 2 Features Note: If either PBNAC or STP/RSTP are in a blocking state, the final state of the port will be blocked. • When PBNAC is activated, the application immediately places all ports in a blocking state unless they were declared "Force Authenticate".
  • Page 86 Chapter 13 Avaya P330 Layer 2 Features PBNAC CLI Commands In order to... Use the following command... Configure dot1x on a system set dot1x Disable dot1x on all ports and clear dot1x config return to default values Display the system dot1x...
  • Page 87 Chapter 13 Avaya P330 Layer 2 Features In order to... Use the following command... Globally enable/disable 802.1x set dot1x system-auth-control enable/disable Set dot1x control parameter per set port dot1x port-control port Initialize port dot1x set port dot1x initialize Set the port to re-authenticate...

  • Page 88: Spanning Tree Protocol

    Spanning Tree Protocol Overview Avaya P330 devices support both common Spanning Tree protocol (802.1d) and the enhanced Rapid Spanning Tree protocol (802.1w). The 802.1w is a faster and more sophisticated version of the 802.1d (STP) standard. Spanning Tree makes it possible to recover connectivity after an outage within a minute or so.

  • Page 89: Rapid Spanning Tree Protocol (Rstp)

    Chapter 13 Avaya P330 Layer 2 Features Rapid Spanning Tree Protocol (RSTP) About the 802.1w Standard The enhanced feature set of the 802.1w standard includes: • Bridge Protocol Data Unit (BPDU) type 2 • New port roles: Alternate port, Backup port •...

  • Page 90: Spanning Tree Implementation In The P330 Family

    Chapter 13 Avaya P330 Layer 2 Features Note: You must manually configure uplink and backbone ports (including LAG logical ports) to be "non-edge" ports, using the CLI command set port edge admin state. • Point-to-point Link ports — This port type applies only to ports interconnecting RSTP compliant switches and is used to define whether the devices are interconnected using shared Ethernet segment or pont-to-point Ethernet link.

  • Page 91: Spanning Tree Protocol Cli Commands

    Chapter 13 Avaya P330 Layer 2 Features • The 802.1w standard defines differently the default path cost for a port compared to STP (802.1d). In order to avoid network topology change when migrating to RSTP, the STP path cost is preserved when changing the spanning tree version to RSTP.
  • Page 92 Chapter 13 Avaya P330 Layer 2 Features Table 13.3 Spanning Tree Protocol CLI Commandss In order to... Use the following command... Set the port as an RSTP port (and not set port spantree force-protocol- as a common STA port) migration Display a port’s edge admin and...

  • Page 93: Mac Security

    Chapter 13 Avaya P330 Layer 2 Features MAC Security The MAC security function is intended to filter incoming frames (from the line) with an unauthorized source MAC address (SA). MAC Security Implementation in P330 When a frame is received on a secured port, its SA is checked against the MAC Address Table.
  • Page 94 Chapter 13 Avaya P330 Layer 2 Features In order to... Use the following command... Enable or disable MAC security on set port security a port Add a unicast MAC address into set secure mac the CAM table of a secured port...

  • Page 95: Lag

    A LAG uses multiple ports to create a high bandwidth connection with another device. For example: Assigning four 100BASE-T ports to a LAG on an Avaya P330 allows the switch to communicate at an effective rate of 400 Mbps with another switch.

  • Page 96: Lag Implementation In The Avaya P330 Family Of Products

    Chapter 13 Avaya P330 Layer 2 Features LAG Implementation in the Avaya P330 Family of Products This section describes the implementation of the LAG feature in the P330 Family of products. The P333T-PWR supports up to 5 LAGs: • Up to three LAGs from three groups of 8 10/100 Mbps ports: —...

  • Page 97: Port Redundancy

    Chapter 13 Avaya P330 Layer 2 Features Port Redundancy Port redundancy involves the duplication of devices, services, or connections, so that, in the event of a failure, the redundant device, service, or connection can take over for the one that failed.

  • Page 98: Intermodule Port Redundancy

    Chapter 13 Avaya P330 Layer 2 Features — “switchback-interval” — the minimum time (in seconds) that the primary port link has to be up (following failure) before the system switches back to the primary port. The “none” parameter, if configured, prevents switching back to the primary.
  • Page 99 Chapter 13 Avaya P330 Layer 2 Features In order to... Use the following command... Disable the defined port set port redundancy disable redundancy schemes Define the timers that control the set port redundancy-interval port redundancy operation Display information on port show port redundancy redundancy schemes.

  • Page 100: Ip Multicast Filtering

    This is typically based on IGMP snooping. The Avaya P330 supports multicast filtering. The P330 learns which switch ports need to receive which multicast packets and configures the necessary information into the switch's hardware tables.

  • Page 101: Ip Multicast Cli Commands

    IP hardware-support multicast filtering IP Multicast Implementation in the Avaya P333T-PWR This section describes the implementation of the IP multicast feature in the Avaya P333T-PWR: • No. of multicast groups — 1000 Avaya P333T-PWR User’s Guide...

  • Page 102: Stack Health

    Chapter 13 Avaya P330 Layer 2 Features Stack Health The P330 software provides a Stack Helath feature for verifying the integrity of the P330 stack cascading module and cables. Overview The Stack Health feature will identify defective modules and cables that may be installed in the P330 stack.

  • Page 103: Port Classification

    Chapter 13 Avaya P330 Layer 2 Features Port Classification Overview With the P330, you can classify any port as regular or valuable. Setting a port to valuable means that, in case of Ethernet link failure of that port, a link fault trap can be sent even when the port is disabled and a fast aging operation on the CAM table will be performed.

  • Page 104: Stack Redundancy

    Chapter 13 Avaya P330 Layer 2 Features Stack Redundancy In the unlikely event that a P330 switch or Octaplane link should fail, stack integrity is maintained if the redundant cable is connected to the stack. The broken link is bypassed and data transmission continues uninterrupted. The single management IP address for the stack is also preserved for uninterrupted management and monitoring.

  • Page 105: Chapter 14 Embedded Web Manager

    Software Redundancy - Setting software redundancy for ports in an Avaya P330 Switch. • Port Mirroring - Setting up port mirroring for ports in an Avaya P330 Switch. • Trap Managers Configuration - Viewing and modifying the Trap Managers Table.

  • Page 106: Running The Embedded Web Manager

    Note: The Web management passwords are the same as those of the CLI. If you have created additional CLI user names or changed the default passwords then you can use those passwords for Web management as well. Avaya P333T-PWR User’s Guide...
  • Page 107 Chapter 14 Embedded Web Manager The welcome page is displayed: Figure 14.1 The Welcome Page Avaya P333T-PWR User’s Guide...
  • Page 108 (see Figure 14.2). Figure 14.2 Web-based Manager — If you do not have the Java plug-in installed, follow the instructions on the Welcome page that offers a variety of options to install the plug-in (see Figure 14.1). Avaya P333T-PWR User’s Guide...

  • Page 109: Installing The Java Plug-In

    Installing from the Avaya P330 Documentation and Utilities CD Close all unnecessary applications on your PC. Insert the “Avaya P330 Documentation and Utilities” CD into the CD drive. Click Start on the task bar. Select Run. Type x:\emweb-aux-files\plug-in_1_3_1.exe where x: is the CD drive letter.

  • Page 110: Installing The On-Line Help And Java Plug-In On Your Web Site

    Utilities” CD to your local Web server. Please refer to your Web server documentation for full instructions. Define the URL in the Avaya P330 using the following CLI command: set web aux-files-url //IP address/directory name where //IP address/directory name is the location of the directory from the previous step.

  • Page 111: Troubleshooting And Maintaining The P330

    Avaya P333T-PWR VAYA 4: T ECTION ROUBLESHOOTING AND AINTAINING THE P330...

  • Page 113: Chapter 16 Troubleshooting The Installation

    This section will allow you to perform basic troubleshooting of the installation. If you are unable to solve the problem after following the procedures in this chapter, please contact Avaya Technical Support. Refer to “How to Contact Us“for full details.
  • Page 114 • PD connected to Expansion • Connect the PD to a port on the switch Module port (number 1 to 24): the P333T-PWR does not support Power over Ethernet on Expansion Modules Stacking not functioning • X330-STK modules not •...

  • Page 115: Chapter 17 Maintenance

    Gently tighten the two screws on the front panel of the expansion sub-module by turning them. Note: The Avaya P330 switch must not be operated with the expansion slot open; the expansion sub-module slot should be covered with the supplied blanking plate if necessary.

  • Page 116: Saving Configuration Definitions

    Caution: Ensure that the screws on the module are properly aligned with the holes in the chassis before tightening them. Gently tighten the two screws on the side panel of the stacking module by turning the screws. Do not use excessive force when tightening the screws. Avaya P333T-PWR User’s Guide...

  • Page 117: Chapter 18 Updating The Software

    Caution: Please refer to "Before You Install the P330" before undertaking any of the procedures detailed in this section. Software Download You can perform software download using the CLI or Avaya UpdateMaster (part of the Avaya Multi-Service Network Manager Suite). Obtain Software Online You can download the firmware and Embedded Web Manager from the “Software...

  • Page 118: Download New Version Without Overwriting Existing Version

    Chapter 18 Updating the Software Note: Please download both the new Avaya firmware and the new Embedded Web Manager versions. Whichever version of the firmware you decide to run, always be sure to match the correct firmware and Embedded Web Manager versions.

  • Page 119: How To Contact Us

    Appendix A How to Contact Us To contact Avaya’s technical support, please call: In the United States Dial 1-800-237-0016, press 0, then press 73300.In the EMEA (Europe, Middle East and Africa) Region Local Dial-In Local Dial-In Country Country Number Number...

  • Page 120: In The Ap (Asia Pacific) Region

    +31 70 414 8063 E-mail: csctechnical@avaya.com In the AP (Asia Pacific) Region Local Dial-In Local Dial-In Country Country Number Number Australia +1800 255 233 Malaysia +1800 880 227 Hong Kong +2506 5451 +00 800 9828 9828 Zealand Avaya P333T-PWR User’s Guide...

  • Page 121: In The Cala (Caribbean And Latin America) Region

    +0 80 025 227 E-mail: sgcoe@avaya.com In the CALA (Caribbean and Latin America) Region E-mail: caladatasupp@avaya.com Hot Line:+1 720 4449 998 Fax:+1 720 444 9103 For updated information, visit www.avaya.com/support and click “Global Support Organization (GSO)”. Avaya P333T-PWR User’s Guide...
  • Page 122 © 2003 Avaya Inc. All rights reserved. All trademarks identified by the ® or TM are registered trademarks or trademarks, respectively, of Avaya Inc. All other trademarks are the property of their respective owners. Avaya P333T-PWR User’s Guide...

Table of Contents
