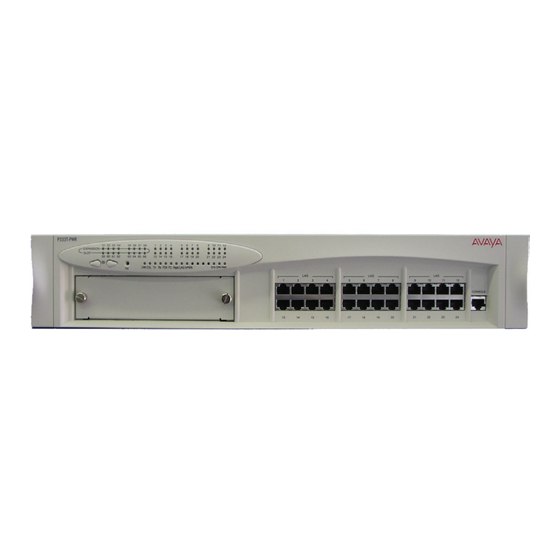

Avaya P333T-PWR Quick Start Manual
Hide thumbs
Also See for P333T-PWR:
- Quick start for hardware installation (34 pages) ,
- Installation and configuration manual (122 pages) ,
- Recommended redundancy scheme (8 pages)
Related Manuals for Avaya P333T-PWR
Summary of Contents for Avaya P333T-PWR
- Page 1 Avaya P333T-PWR Unpack Quick Start Guide Rack mount (optional) Power up Connect the cables Configure Run Web-based Manager (optional)
- Page 2 • Avaya Warranty and License Agreement Avaya P330 Documentation and Utilities CD The CD contains the latest User's Guides for the Avaya P330 stackable switches and files for use with the Embedded Web Manager. User's Guides You can view and print these Guides using Adobe® Acrobat® Reader.
- Page 3 Rack mount (optional) WARNING: Disconnect all cables from the unit before proceeding with the rack installation. In order to isolate the P333T-PWR completely, you must disconnect all power inputs. Snap open the hinged ends of the unit’s front panel to reveal the screw holes.
- Page 4 DC Input (Optional) DC connector The P333T-PWR an operate on the AC input only. However, you may wish to use the optional DC input for the following: • Backup for the Power over Ethernet ports •...
-
Page 5: Connect The Cables
Connect the other end of the cable to the Ethernet port of the PC, server, router, worksta- tion, switch or hub. Use a cross cable when connecting the Avaya P333T-PWR to a switch or hub. Check that the appropriate link (LNK) LEDs light up. -
Page 6: Basic Configuration
Basic configuration To connect a PC terminal or VT-100 terminal to the Avaya P330 If you are using a PC, initiate a VT-100 terminal emulation session using an application such as Windows® HyperTerminal. Press Enter. The Welcome to Cajun P330 menu is displayed. - Page 7 Setting the Parameters If you wish to change the default parameters shown and configure the mandatory parameters, we recommend that you use the Command Line Interface (CLI). For further information, please refer to the Avaya P333T-PWR User’s Guide. Default Switch Settings Parameter...
- Page 8 Run the Web-Based Manager (optional) To configure the Avaya P333T-PWR you can use the P330 Web-based Manager in addi- tion to using the CLI. System Requirements Minimum hardware and Operating System requirements are: • Pentium® II 400 Mhz-based computer with 128 Mb of RAM •...
- Page 9 6. Follow the on-screen instructions. • Or install the plug-in from the Avaya site by clicking on the link on the welcome page. • Or, if the network manager has placed the files on the local site, install the plug-in from there by clicking the link on the welcome page.
-
Page 10: Documentation And Online Help
Documentation and Online Help Refer to the Avaya P330 Documentation and Utilities CD for full instructions. - Page 11 Notes...
-
Page 12: Contact Information
Contact Information To contact Avaya technical support: From the United States: Please call 1-800-237-0016, press 0, then press 73300. From outside the United States: EMEA (Europe, Middle East and Africa). Email: csctechnical@avaya.com Country Local Dial-In Number Country Local Dial-In Number...
