Gateway Convertible Notebook pc Service Manual page 58

Replacing Gateway Convertible Notebook Components
To replace the LCD panel lid:
1
Complete the steps in
2
If the convertible notebook has IEEE 802.11 wireless networking built in, unplug the
antenna cables from the IEEE 802.11 mini PCI card by following the instructions in
"Replacing the IEEE 802.11 Mini PCI card" on page
3

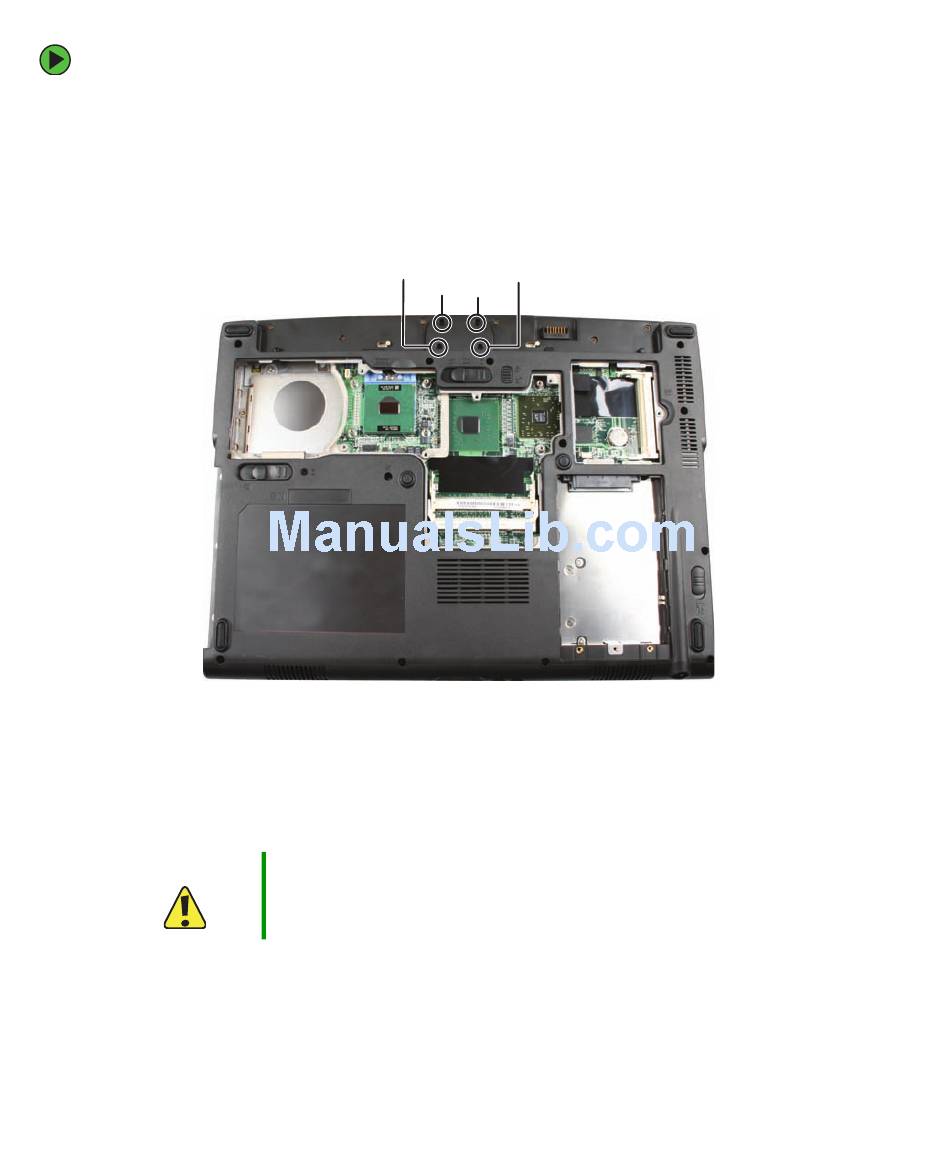

Remove the four screws on the bottom that secure the LCD panel hinge to the chassis.
4
Turn the convertible notebook over so the top is facing up.
5
Remove the hinge covers by following the instructions in
on page 37.
6
Open the LCD panel to the fully open position.
Caution
7
Remove the keyboard cover by following the instructions in
cover" on page
8
Remove the LCD panel by following the instructions in
assembly" on page
54
"Preparing the convertible notebook" on page
Screw
Screw
Be careful not to use too much force when opening the LCD panel.
38.
44.
www.gateway.com
24.
Screw
Screw
"Replacing the hinge covers"
"Replacing the LCD panel
6.
"Replacing the keyboard
