Replacing Gateway Convertible Notebook Components
3

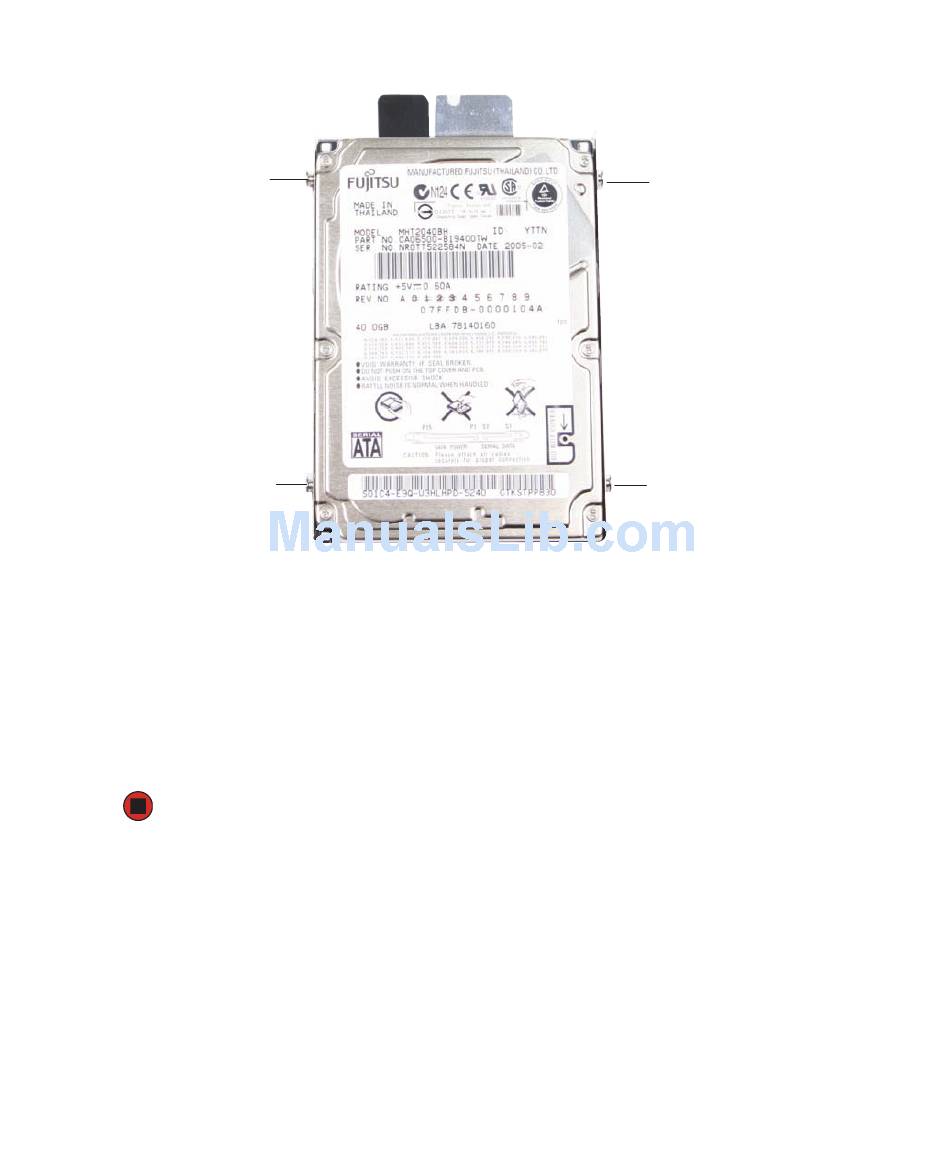

Remove the four screws that secure the hard drive to the hard drive kit bracket.
Screw
4
Remove the bracket from the old drive.
5
Insert the new drive into the bracket, label side up, so the screw holes line up.
6
Replace the four screws that secure the bracket to the drive.
7
Slide the hard drive kit into the convertible notebook.
8
Replace the screw that secures the hard drive kit to the convertible notebook.
9
Replace the hard drive bay cover.
36
Screw
