Gateway Convertible Notebook pc Service Manual page 51

11
Taking care to note the cables' routing and positions as they are installed from
Gateway, pull the antenna cables out from under the system board, then slide the
wires out from under the retaining clips.
12

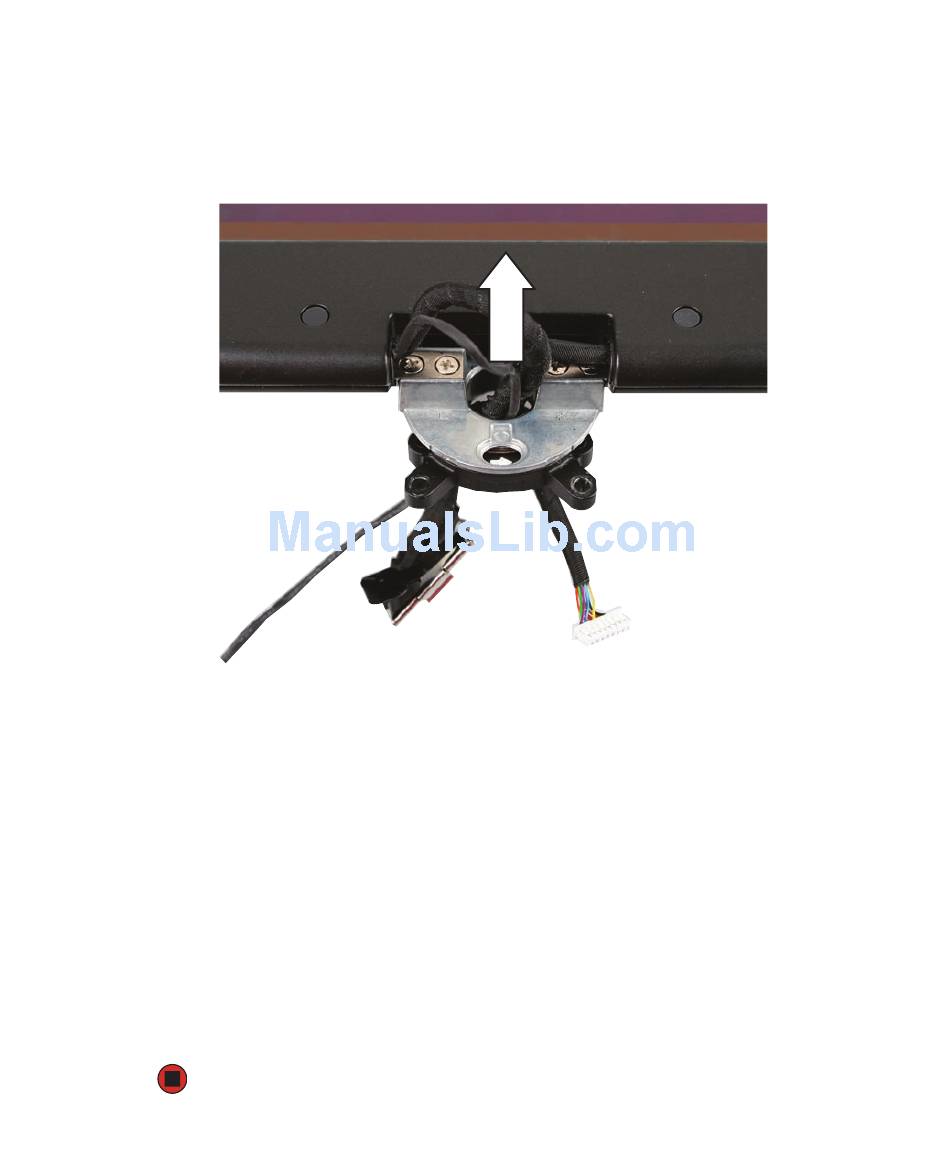

Lift the LCD panel assembly up and away from the convertible notebook. The LCD
panel assembly is now completely detached from the convertible notebook.
13
Place the new LCD panel assembly onto the hinge of the convertible notebook, then
replace the two hinge screws.
14
Slide the antenna cables through the retaining clips, under the system board, then
into the mini-PCI card area.
15
Plug the LCD video cable into the convertible notebook.
16
Reattach the three cables to the appropriate connectors on the system board.
17
Reassemble the convertible notebook.
18
Turn the notebook over so the bottom is facing up, then replace the four screws on
the bottom that secure the hinge to the chassis.
19
If the notebook has IEEE 802.11 wireless networking built in, plug the black antenna
cable into the IEEE 802.11 mini PCI card connector labelled MAIN or M, then plug
the light gray antenna cable to the connector labelled AUX or A.
