AutoDome Junior HD
3.
4.
4.1.3

Installing the Camera to the Mounting Plate

To install the camera to the mounting plate for a surface or
suspended ceiling, do the following:
1.
2.
3.
4.
Bosch Security Systems, Inc.
Secure the mounting plate to the junction box with the
user supplied hardware (see Figure 4.3).

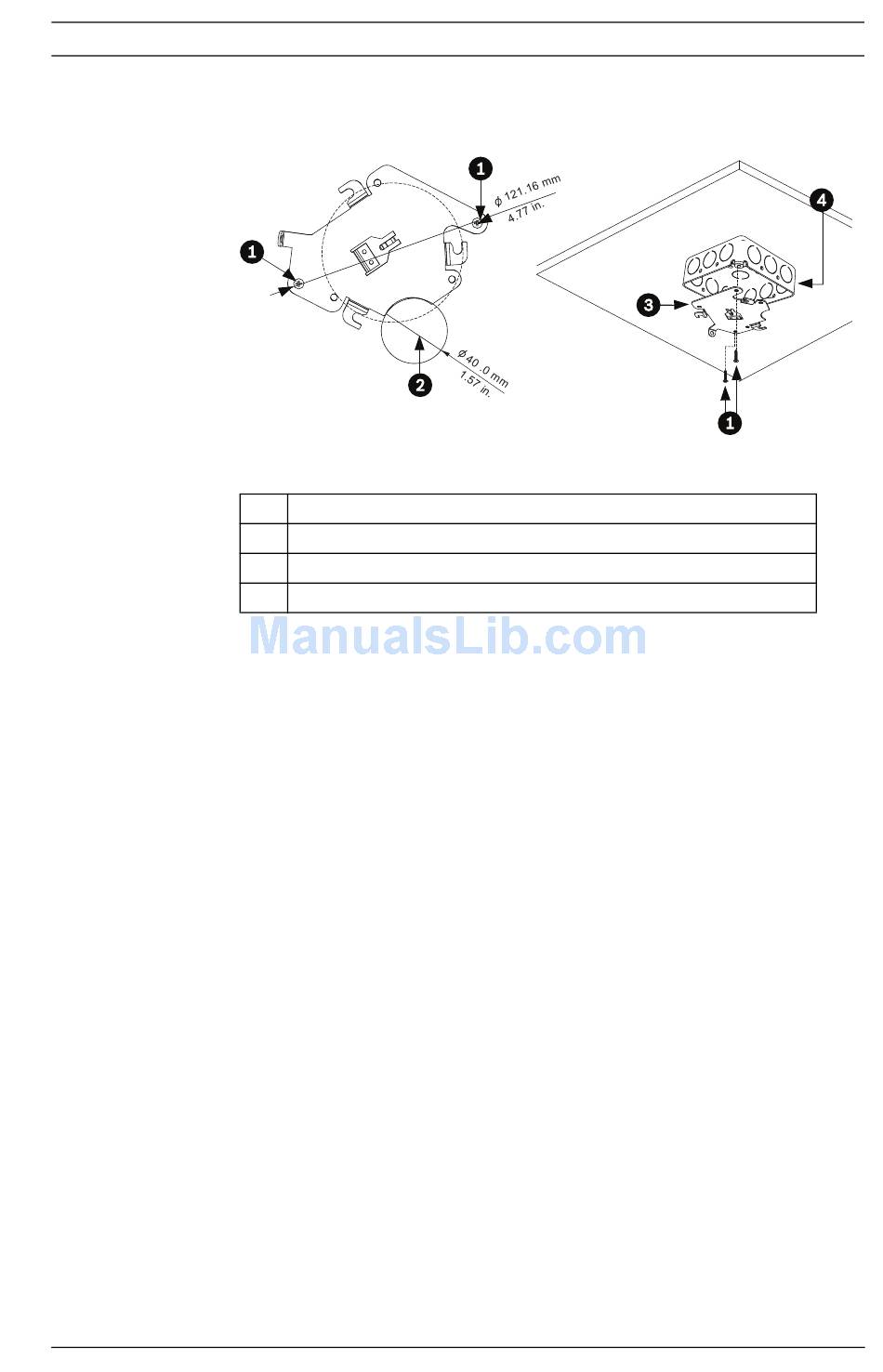

Figure 4.3 Install the Mounting Plate
1 Junction Box Holes
2 Cable Hole (40 mm maximum); Crescent Shape
3 Mounting Plate
4 Junction Box
Skip to Section 4.1.3 Installing the Camera to the Mounting
Plate, page 23, to continue the installation.
Route wires on side of mounting plate with crescent
shaped cut-out (Ref. #2 Figure 4.3).
Attach grounding wire from unit to junction box.
Attach user supplied ground to junction box.
Connect the mating connectors with the flying leads to the
user supplied wiring (see Section 8 Preparing the Wiring,
page 50 for wiring information).
Installation Manual
Installing a Surface Mount | en
F.01U.172.910 | 4.0 | 2011.09
23
