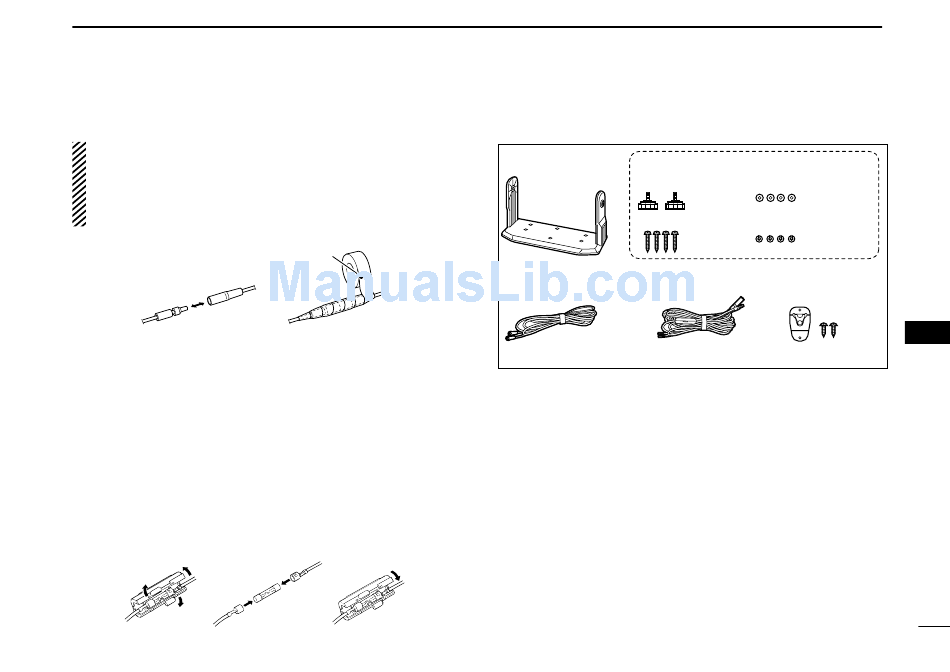

CAUTION: After connecting the DC power cable, NMEA
IN/OUT leads, external speaker lead and hailer/foghorn
lead, cover the connector and leads with a rubber vulcan-
izing tape as shown below, to prevent water seeping into
the transceiver.
Rubber vulcanizing tape

■ Antenna

A key element in the performance of any communication
system is the antenna. Ask your dealer about antennas and
the best place to mount them.

■ Fuse replacement

One fuse is installed in the supplied DC power cable. If a
fuse blows or the transceiver stops functioning, track down
the source of the problem if possible, and replace the dam-
aged fuse with a new one of the proper rating.
Fuse rating: 10 A
CONNECTIONS AND MAINTENANCE

■ Supplied accessories

Mounting bracket For mounting bracket
Knob bolts
Screws (5×20 mm)
Microphone hanger cable* DC power cable
(OPC-1096: Black) (OPC-891A)
*Depending on the version

■ Microphone hanger

Rest the supplied microphone on the hanger when not in use.
Connect the OPC-1096* to the transceiver's ground terminal
with a self-tapping screw (3 × 8 mm) and the other side to the
microphone hanger to use the microphone hanger function.
*Depending on version.
• If the microphone hanger function is used, Channel 16 is selected
automatically when the supplied microphone is rested on the
hanger.
Ferrite core
and ties
Flat washers (M5)
Spring washers (M5)
Microphone hanger
and screws (3×16 mm)
