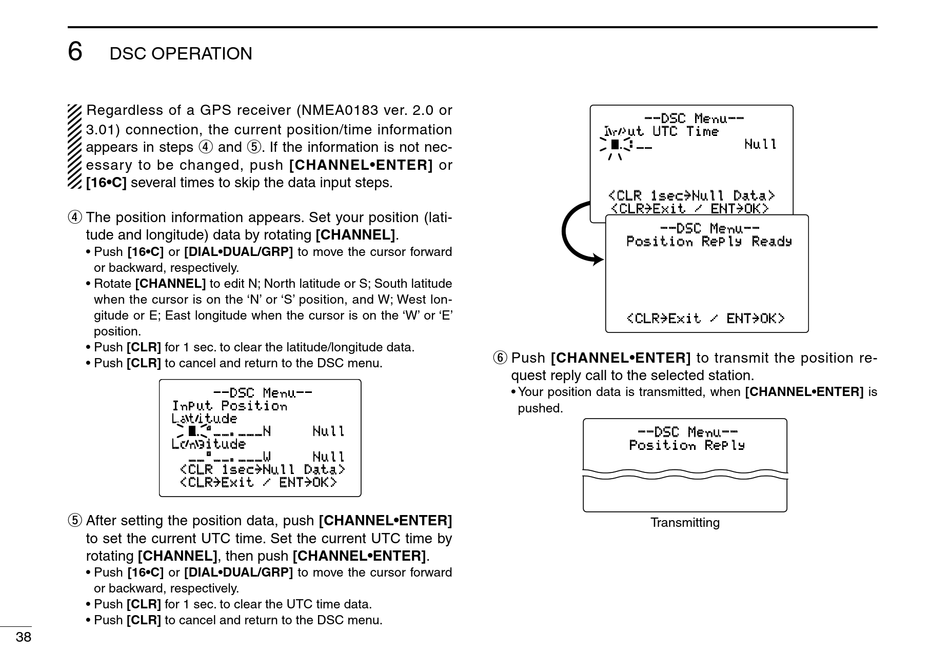

Icom IC-M505 Instruction Manual page 44

6
DSC OPERATION
Regardless of a GPS receiver (NMEA0183 ver. 2.0 or
3.01) connection, the current position/time information
appears in steps r and t. If the information is not nec-
essary to be changed, push [CHANNEL•ENTER] or
[16•C] several times to skip the data input steps.
r The position information appears. Set your position (lati-
tude and longitude) data by rotating [CHANNEL].
• Push [16•C] or [DIAL•DUAL/GRP] to move the cursor forward
or backward, respectively.
• Rotate [CHANNEL] to edit N; North latitude or S; South latitude
when the cursor is on the 'N' or 'S' position, and W; West lon-
gitude or E; East longitude when the cursor is on the 'W' or 'E'
position.
• Push [CLR] for 1 sec. to clear the latitude/longitude data.
• Push [CLR] to cancel and return to the DSC menu.
Input Position
Latitude
__°__.___N
Longitude
__°__.___W
<CLR 1sec ˘ Null Data>
<CLR ˘ Exit / ENT ˘ OK>
t After setting the position data, push [CHANNEL•ENTER]
to set the current UTC time. Set the current UTC time by
rotating [CHANNEL], then push [CHANNEL•ENTER].
• Push [16•C] or [DIAL•DUAL/GRP] to move the cursor forward
or backward, respectively.
• Push [CLR] for 1 sec. to clear the UTC time data.
• Push [CLR] to cancel and return to the DSC menu.
38
--DSC Menu--
Null
Null
--DSC Menu--
Input UTC Time
__:__
<CLR 1sec ˘ Null Data>
<CLR ˘ Exit / ENT ˘ OK>
--DSC Menu--
Position Reply Ready
<CLR˘Exit / ENT˘OK>
y Push [CHANNEL•ENTER] to transmit the position re-
quest reply call to the selected station.
• Your position data is transmitted, when [CHANNEL•ENTER] is
pushed.
--DSC Menu--
Position Reply
Transmitting
Null
