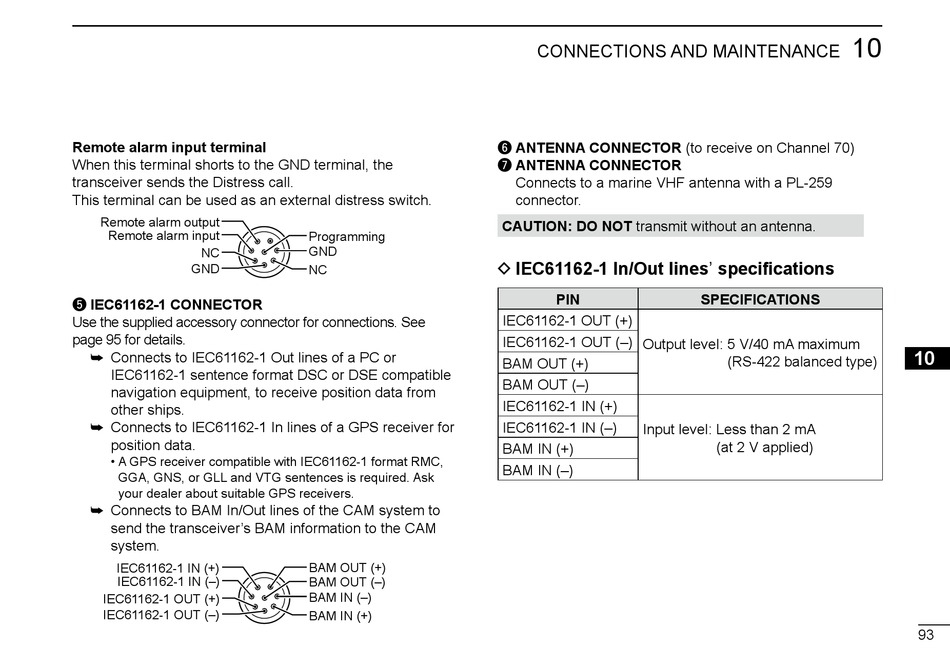

Remote alarm input terminal
When this terminal shorts to the GND terminal, the
transceiver sends the Distress call.
This terminal can be used as an external distress switch.
Remote alarm output
Remote alarm input
NC
GND
t IEC61162-1 CONNECTOR
Use the supplied accessory connector for connections. See
page 95 for details.
➥ Connects to IEC61162-1 Out lines of a PC or
IEC61162-1 sentence format DSC or DSE compatible
navigation equipment, to receive position data from
other ships.
➥ Connects to IEC61162-1 In lines of a GPS receiver for
position data.
• A GPS receiver compatible with IEC61162-1 format RMC,
GGA, GNS, or GLL and VTG sentences is required. Ask
your dealer about suitable GPS receivers.
➥ Connects to BAM In/Out lines of the CAM system to
send the transceiver's BAM information to the CAM
system.
IEC61162-1 IN (+)
IEC61162-1 IN (–)
IEC61162-1 OUT (+)
IEC61162-1 OUT (–)
Programming
GND
NC
BAM OUT (+)
BAM OUT (–)
BAM IN (–)
BAM IN (+)
CONNECTIONS AND MAINTENANCE
y ANTENNA CONNECTOR (to receive on Channel 70)
u ANTENNA CONNECTOR
Connects to a marine VHF antenna with a PL-259
connector.
CAUTION: DO NOT transmit without an antenna.
D IEC61162-1 In/Out linesʼ specifications
PIN
IEC61162-1 OUT (+)
IEC61162-1 OUT (–)
Output level: 5 V/40 mA maximum
BAM OUT (+)
BAM OUT (–)
IEC61162-1 IN (+)
IEC61162-1 IN (–)
Input level: Less than 2 mA
BAM IN (+)
BAM IN (–)
10
SPECIFICATIONS
(RS-422 balanced type)
(at 2 V applied)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
93
