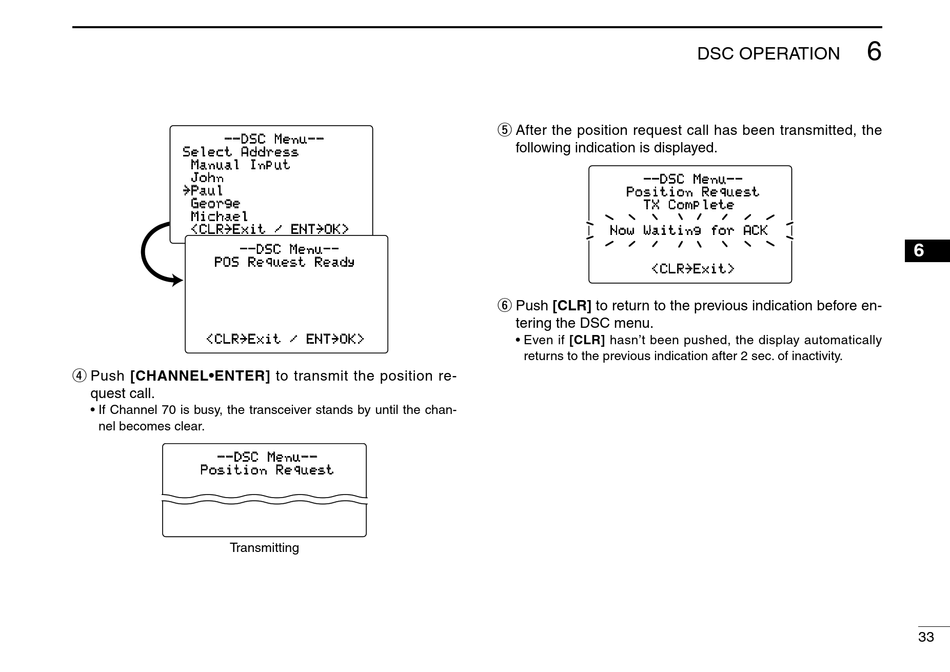

--DSC Menu--
Select Address
Manual Input
John
˘Paul
George
Michael
<CLR˘Exit / ENT˘OK>
--DSC Menu--
POS Request Ready
<CLR˘Exit / ENT˘OK>
r Push [CHANNEL•ENTER] to transmit the position re-
quest call.
• If Channel 70 is busy, the transceiver stands by until the chan-
nel becomes clear.
--DSC Menu--
Position Request
Transmitting
t After the position request call has been transmitted, the
following indication is displayed.
--DSC Menu--
Position Request
TX Complete
Now Waiting for ACK
<CLR˘Exit>
y Push [CLR] to return to the previous indication before en-
tering the DSC menu.
• Even if [CLR] hasn't been pushed, the display automatically
returns to the previous indication after 2 sec. of inactivity.
6
DSC OPERATION
6
33
