Hailer Operation - Icom IC-M505 Instruction Manual

7
OTHER FUNCTIONS

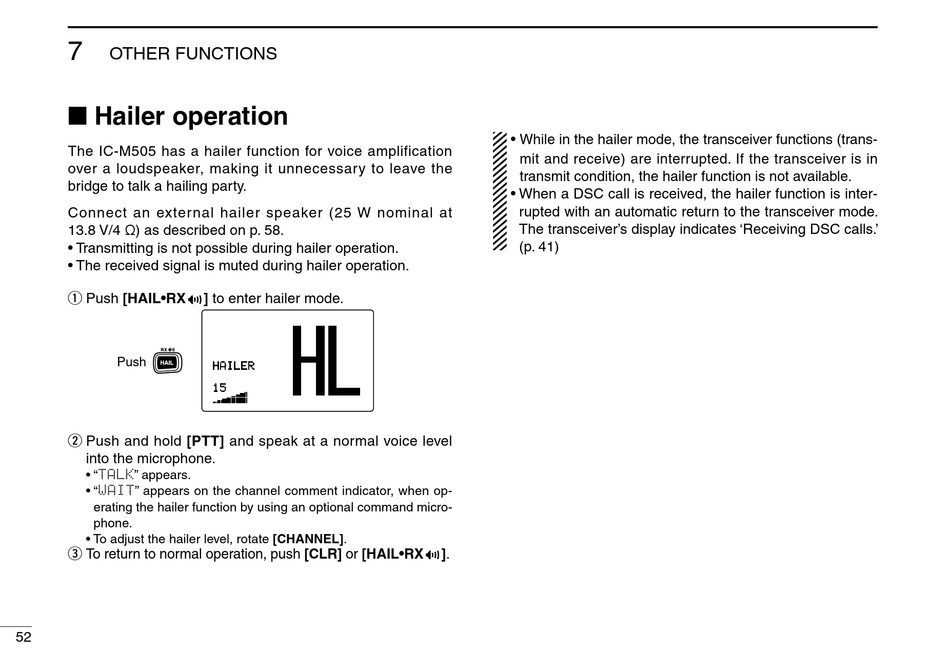

■ Hailer operation

The IC-M505 has a hailer function for voice amplification
over a loudspeaker, making it unnecessary to leave the
bridge to talk a hailing party.
Connect an external hailer speaker (25 W nominal at
13.8 V/4 Ω) as described on p. 58.
• Transmitting is not possible during hailer operation.
• The received signal is muted during hailer operation.
q Push [HAIL•RX
Push
w Push and hold [PTT] and speak at a normal voice level
into the microphone.
• "TALK" appears.
• "WAIT" appears on the channel comment indicator, when op-
erating the hailer function by using an optional command micro-
phone.
• To adjust the hailer level, rotate [CHANNEL].
e To return to normal operation, push [CLR] or [HAIL•RX
52
] to enter hailer mode.
HAILER
15
• While in the hailer mode, the transceiver functions (trans-
mit and receive) are interrupted. If the transceiver is in
transmit condition, the hailer function is not available.
• When a DSC call is received, the hailer function is inter-
rupted with an automatic return to the transceiver mode.
The transceiver's display indicates 'Receiving DSC calls.'
(p. 41)
].
