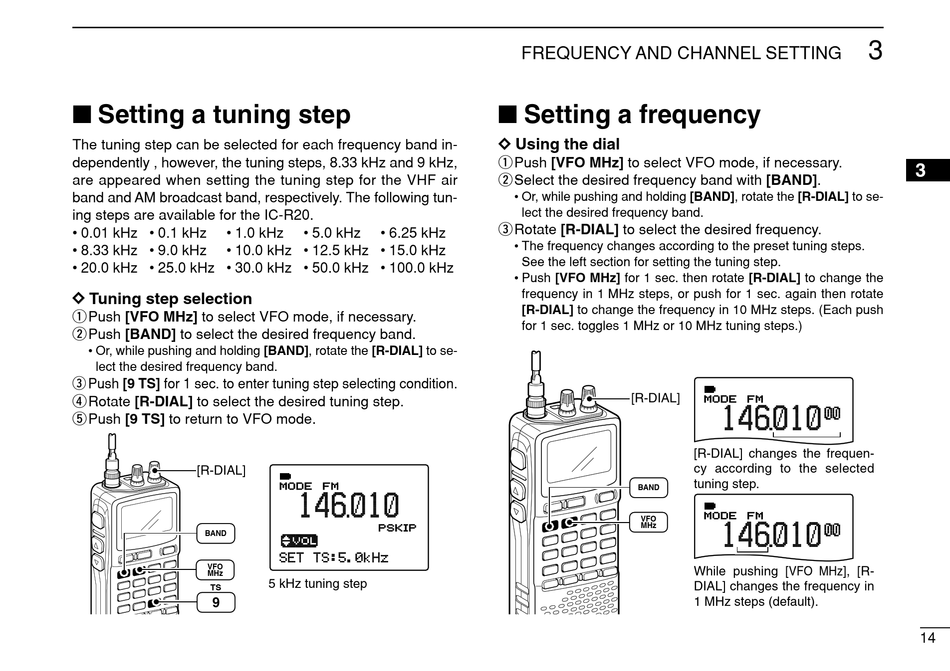

I Setting a tuning step

The tuning step can be selected for each frequency band in-
dependently , however, the tuning steps, 8.33 kHz and 9 kHz,
are appeared when setting the tuning step for the VHF air
band and AM broadcast band, respectively. The following tun-
ing steps are available for the IC-R20.
• 0.01 kHz • 0.1 kHz • 1.0 kHz
• 8.33 kHz • 9.0 kHz • 10.0 kHz • 12.5 kHz • 15.0 kHz
• 20.0 kHz • 25.0 kHz • 30.0 kHz • 50.0 kHz • 100.0 kHz
D D Tuning step selection
q Push [VFO MHz] to select VFO mode, if necessary.
w Push [BAND] to select the desired frequency band.
• Or, while pushing and holding [BAND], rotate the [R-DIAL] to se-
lect the desired frequency band.
e Push [9 TS] for 1 sec. to enter tuning step selecting condition.
r Rotate [R-DIAL] to select the desired tuning step.
t Push [9 TS] to return to VFO mode.
[R-DIAL]
BAND
VFO
MHz
TS
9
• 5.0 kHz • 6.25 kHz
146 010
√
5 kHz tuning step
FREQUENCY AND CHANNEL SETTING

I Setting a frequency

D D Using the dial
q Push [VFO MHz] to select VFO mode, if necessary.
w Select the desired frequency band with [BAND].
• Or, while pushing and holding [BAND], rotate the [R-DIAL] to se-
lect the desired frequency band.
e Rotate [R-DIAL] to select the desired frequency.
• The frequency changes according to the preset tuning steps.
See the left section for setting the tuning step.
• Push [VFO MHz] for 1 sec. then rotate [R-DIAL] to change the
frequency in 1 MHz steps, or push for 1 sec. again then rotate
[R-DIAL] to change the frequency in 10 MHz steps. (Each push
for 1 sec. toggles 1 MHz or 10 MHz tuning steps.)
[R-DIAL]
BAND
VFO
MHz
3
146 010
00
[R-DIAL] changes the frequen-
cy according to the selected
tuning step.
146 010
00
While pushing [VFO MHz], [R-
DIAL] changes the frequency in
1 MHz steps (default).
3
14
