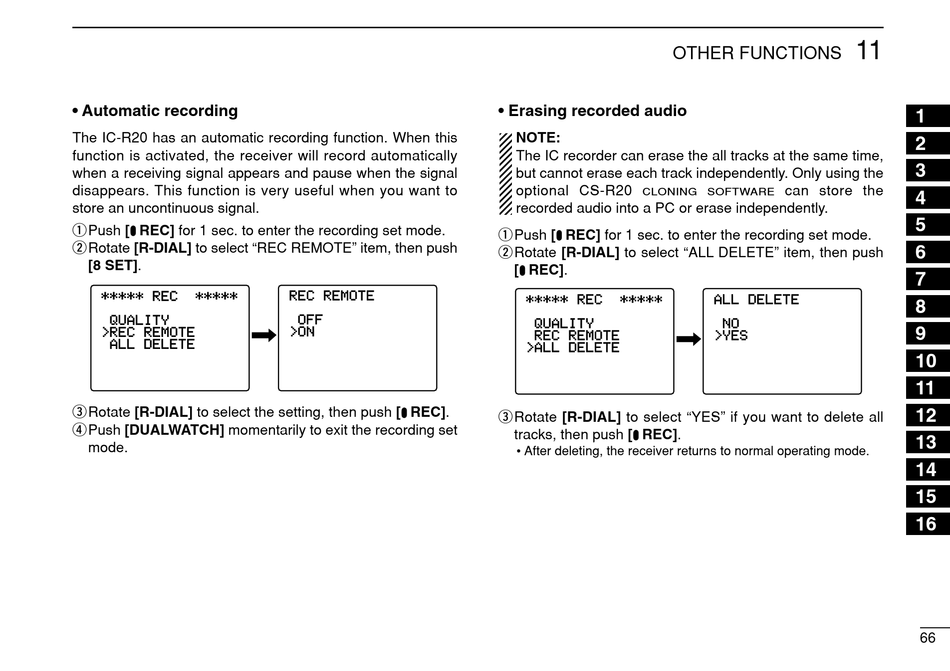

Icom IC-R20 Instruction Manual page 73

• Automatic recording
The IC-R20 has an automatic recording function. When this
function is activated, the receiver will record automatically
when a receiving signal appears and pause when the signal
disappears. This function is very useful when you want to
store an uncontinuous signal.
qPush [ REC] for 1 sec. to enter the recording set mode.
wRotate [R-DIAL] to select "REC REMOTE" item, then push
[8 SET].
eRotate [R-DIAL] to select the setting, then push [ REC].
rPush [DUALWATCH] momentarily to exit the recording set
mode.
OTHER FUNCTIONS
• Erasing recorded audio
NOTE:
The IC recorder can erase the all tracks at the same time,
but cannot erase each track independently. Only using the
optional CS-R20
CLONING SOFTWARE
recorded audio into a PC or erase independently.
qPush [ REC] for 1 sec. to enter the recording set mode.
wRotate [R-DIAL] to select "ALL DELETE" item, then push
[ REC].
eRotate [R-DIAL] to select "YES" if you want to delete all
tracks, then push [ REC].
• After deleting, the receiver returns to normal operating mode.
11
1
2
3
can store the
4
5
6
7
8
9
10
11
12
13
14
15
16
66
