Isys i/O™ Handheld WiFi Touchpanel

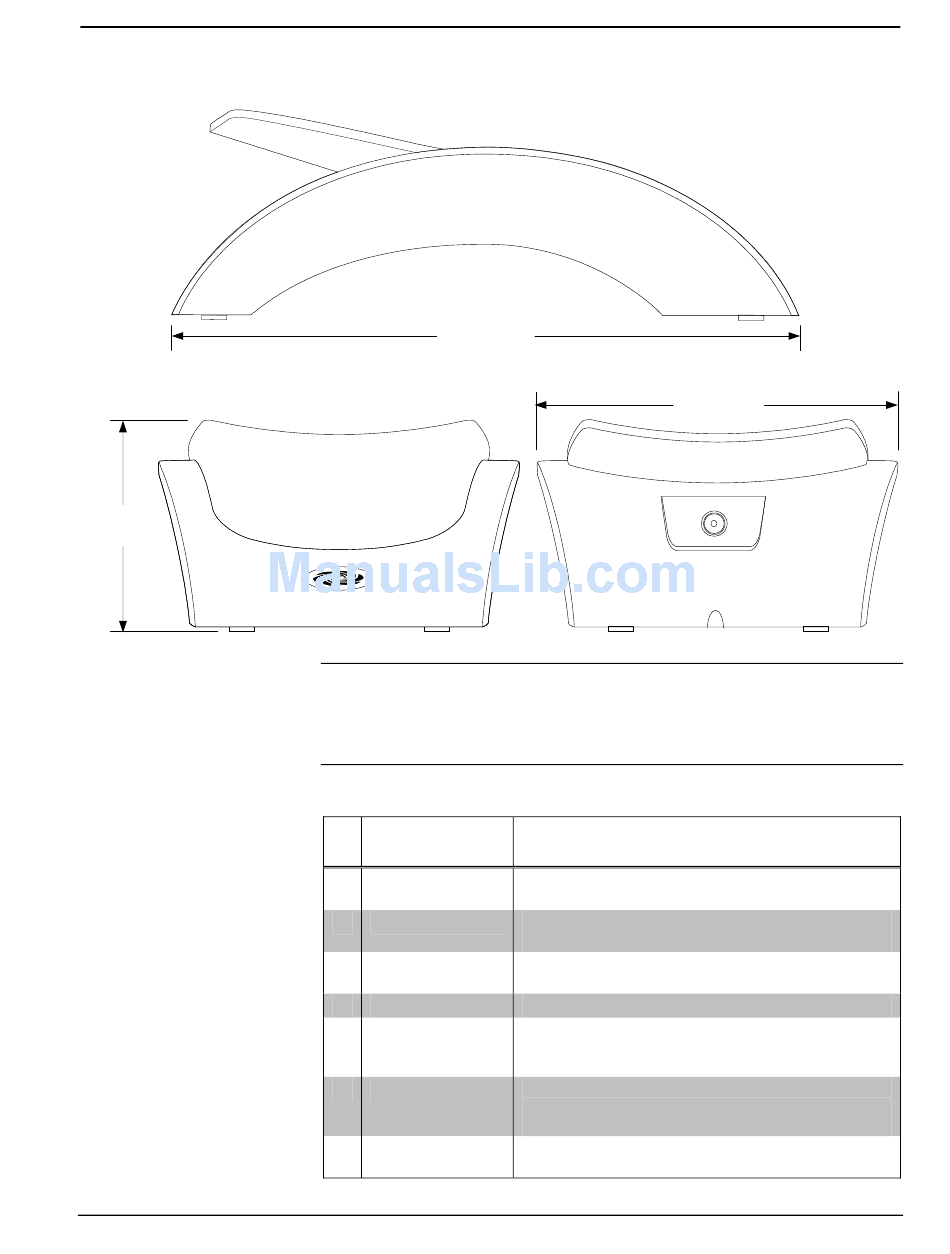

TPMC-4XG Docking Station Dimensions (Side, Front and Rear Views)
2.25 in
(5.72 cm)
10 • Isys i/O™ Handheld WiFi Touchpanel: TPMC-4XG
6.25 in
(15.88 cm)
NOTE: When the TPMC-4XG-DS docking station/charger is connected to AC
power and a TPMC-4XG is placed on the dock, the Crestron swirl logo on the front
will light for approximately five seconds. If the switch on the bottom of the
TPMC-4XG-DS is moved to the On position, the logo will remain lit for as long as
the touchpanel is on the docking station.
Connectors, Controls & Indicators
#
CONNECTORS
& CONTROLS
1
USB
2
ON/OFF
3
RESET
4
HARD KEYS
5
FUNCTIONS
6
THUMBPAD
7
SCROLL WHEEL
Crestron TPMC-4XG
3.63 in
(9.22 cm)
DESCRIPTION
(1) Mini Type B female behind cover; USB 2.0
computer console port, cable included.
(1) Recessed slide switch (in battery compartment),
turns unit on or off.
(1) Recessed miniature button (in battery
compartment), reboots the touchpanel
(4) Programmable pushbuttons below touchscreen.
(10) Programmable pushbuttons with white EL
backlit labeling for home, volume (up and down),
mute, up/fwd, down/rwd, +, -, return and power.
(1) Programmable 5-way thumbpad (4-way
navigation plus center "OK" button) with white EL
backlit labeling.
(1) 360º programmable scroll wheel with push-to-
select.
Operations Guide – DOC. 6655B
