Other ways to select an input include using SIS commands (see the
commands
Configuration and Control" section) or the optional IR remote control (see
the Optional IR 102 Remote
auto-input switching is in effect.
Using the Optional IR 102 Remote Control
The optional hand-held IR 102 Remote Control (part number 70-224-10) lets you remotely
perform functions that are also available through the front panel buttons and SIS
commands.
The IR receiver sensor on the front panel is located to the right of the Auto Switch Active
LED. It receives signals from the remote control if they are sent from within a 40-degree
arc to the right or left of direct line of sight between the remote control and the switcher
receiver, and from no more than 30 feet (9.1 m) away (see the illustration below).
AUTO
SWITCH
IR
ACTIVE
40
Universal Remote
IR 102 Remote Control

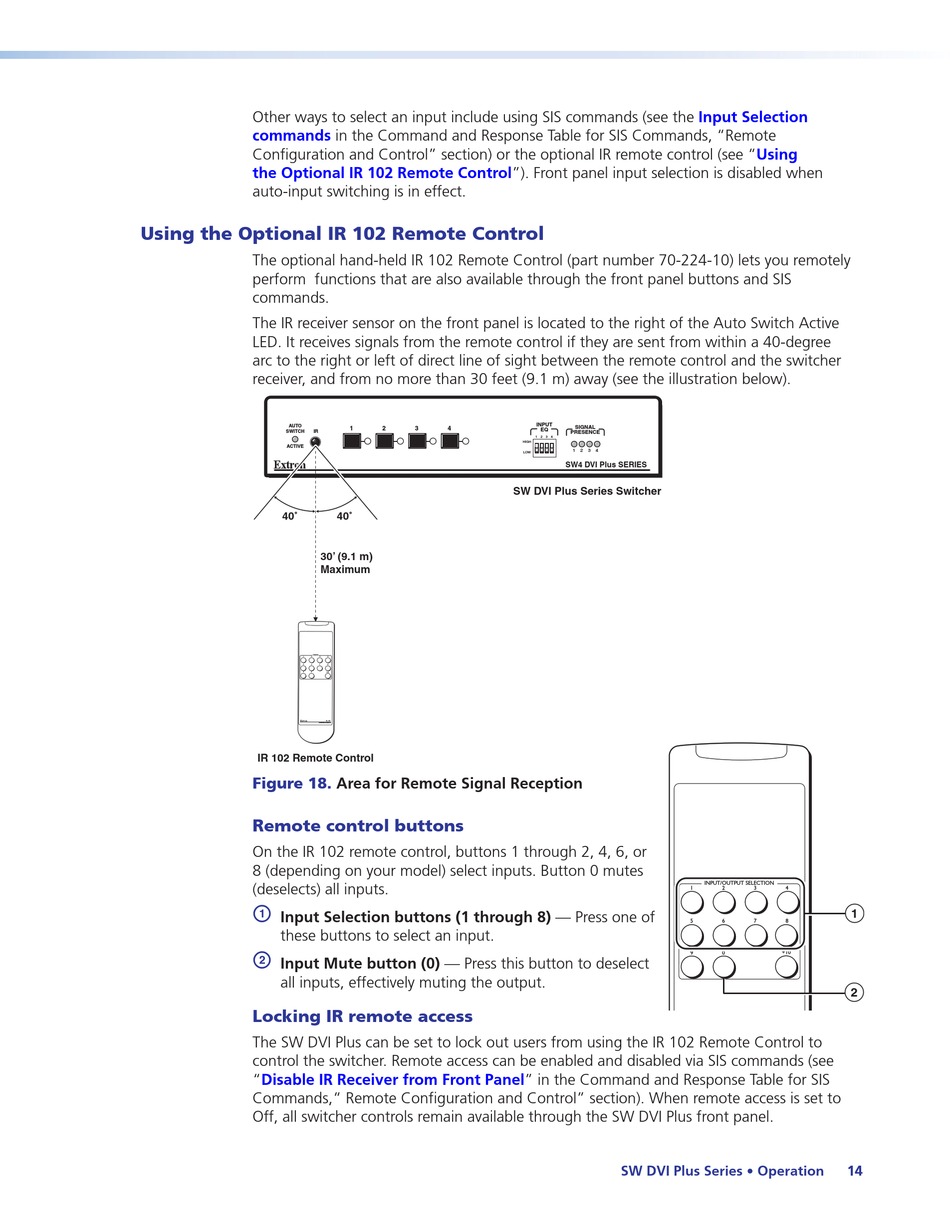

Figure 18.
Remote control buttons
On the IR 102 remote control, buttons 1 through 2, 4, 6, or
8 (depending on your model) select inputs. Button 0 mutes
(deselects) all inputs.
a
Input Selection buttons (1 through 8) — Press one of
these buttons to select an input.
b
Input Mute button (0) — Press this button to deselect
all inputs, effectively muting the output.
Locking IR remote access
The SW DVI Plus can be set to lock out users from using the IR 102 Remote Control to
control the switcher. Remote access can be enabled and disabled via SIS commands (see
"Disable IR Receiver from Front
Commands," Remote Configuration and Control" section). When remote access is set to
Off, all switcher controls remain available through the SW DVI Plus front panel.
in the Command and Response Table for SIS Commands, "Remote
Control"). Front panel input selection is disabled when
