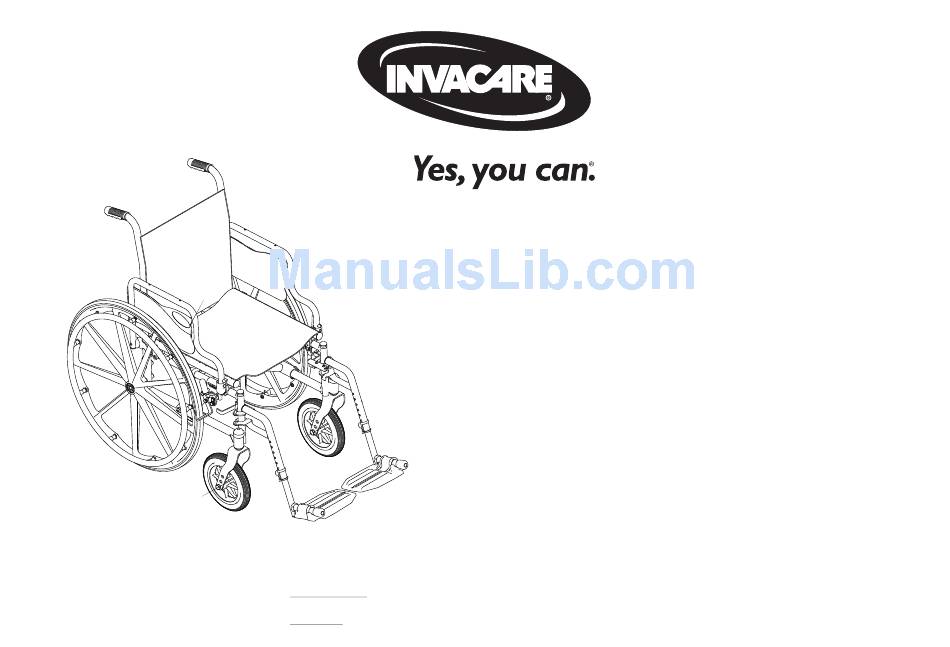

Tracer
SX5
User Manual
DEALER: This manual MUST be given to the user of the product.
USER: BEFORE using this product, read this manual and save for future reference.

Advertisement

Table of Contents
loading

Related Manuals for Invacare Tracer SX5

Summary of Contents for Invacare Tracer SX5

  • Page 1 ® Tracer User Manual DEALER: This manual MUST be given to the user of the product. USER: BEFORE using this product, read this manual and save for future reference.

  • Page 2: Table Of Contents

    CONTENTS GENERAL .......................................5 Warnings.................................................. 5 Limited Warranty ..............................................6 SAFETY ........................................7 General Guidelines ..............................................7 LABEL LOCATION ....................................13 TECHNICAL DATA ...................................14 Typical Product Parameters ..........................................14 SAFETY/HANDLING OF WHEELCHAIRS .............................16 Safety/Handling of Wheelchairs........................................16 Stability and Balance ............................................16 Coping With Everyday Obstacles ........................................17 A Note to Wheelchair Assistants........................................
  • Page 3 CONTENTS SAFETY INSPECTION/TROUBLESHOOTING ..........................28 Safety Inspection Checklist ..........................................28 Troubleshooting..............................................31 Maintenance ................................................31 Replacing/Repairing Rear Wheel Tire/Tube ....................................32 Replacing/Repairing Caster Tire/Tube ......................................32 FRONT RIGGINGS .....................................34 Installing/Removing Front Riggings........................................34 Adjusting Footplate Height ..........................................35 Raising/Lowering Elevating Legrest Assembly ....................................36 Replacing Heel Loop ............................................
  • Page 4 CONTENTS 11 FRONT CASTERS ....................................51 Installing/Replacing Six/Eight Inch Front Casters/Forks ................................51 Adjusting Forks..............................................52 Replacing Front Casters ............................................. 52 12 ANTI-TIPPERS/WHEEL LOCKS ..............................54 Installing/Adjusting Anti-Tippers........................................54 Using/Adjusting Patient Operated Wheel Locks..................................57 13 SEAT TO FLOOR ....................................60 Changing Seat-to-Floor Height ......................................... 60 14 RECLINER ......................................64 Recliner Operation..............................................

  • Page 5: General

    1 GENERAL 1 General Warnings Signal words are used in this manual and apply to hazards or unsafe practices which could result in personal injury or property damage. See the information below for definitions of the signal words. DANGER Danger indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING Warning indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

  • Page 6: Limited Warranty

    (seat, back and armrests of the arm assembly) and remaining components of this product when purchased new and unused to be free from defects in materials and workmanship for a period of thirteen (13) months from date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty.

  • Page 7: Safety

    NOTICE THE INFORMATION CONTAINED IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. Check all parts for shipping damage and test before using. In case of damage, DO NOT use. Contact Invacare/Carrier for further instruction. ® Part No. 1110550...
  • Page 8 Wheelchair User As a manufacturer of wheelchairs, Invacare endeavors to supply a wide variety of wheelchairs to meet many needs of the end user. However, final selection of the type of wheelchair to be used by an individual rests solely with the user and his/her healthcare professional capable of making such a selection.
  • Page 9 2 SAFETY WARNING Assistants MUST be prepared to support the weight of the occupant when reclining, or returning the occupant of the wheelchair to the full upright position. Make sure to use proper body mechanics (use your legs) or seek assistance if necessary to avoid injury.

  • Page 10: Operating Information

    2-inch ground clearance. Anti-tippers must be attached at all times. Inasmuch as the anti-tippers are an option on this wheelchair (you may order with or without the anti-tippers), Invacare strongly recommends ordering the anti-tippers as a safeguard for the wheelchair user.
  • Page 11 2 SAFETY WARNING ALWAYS keep hands and fingers clear of moving parts to avoid injury. DO NOT traverse, climb or go down ramps or slopes greater than 9°. DO NOT attempt to move up or down an incline with a water, ice or oil film. DO NOT attempt to reach objects if you have to pick them up from the floor by reaching down between your knees.

  • Page 12: Weight Training

    Weight Training Invacare does not recommend the use of its wheelchairs as a weight training apparatus. Invacare wheelchairs have not been designed or tested as a seat for any kind of weight training. If occupant uses said wheelchair as a weight training apparatus, Invacare shall not be liable for bodily injury or damage to the wheelchair and the warranty is void.

  • Page 13: Label Location

    CAUTION SX5 non-recliner is located on right WARNING NOTE: On all  crossbrace. Tracer SX5 recliner is Any wheel lock adjustments should embed wheel lock shoe at least 1/8" into tire when adjustable anti‐tippers located on right frame) Refer to Owner's Manual locked (3/16"...

  • Page 14: Technical Data

    4 TECHNICAL DATA 4 Technical Data Typical Product Parameters Tracer SX5 Recliner Tracer SX5 Overall Width: , 24 , 26 , 28 , or 30 inches Overall Depth (without front riggings) 34 inches inches Seat Width 14, 16, 18, 20 or 22 inches...
  • Page 15 4 TECHNICAL DATA Tracer SX5 Recliner Tracer SX5 Wheel Locks High Mount, Push or Pull to Lock Caster Size 8x1-1/4 inch Urethane*, 6x1 inch Urethane, 8x1-1/4 inch Pneumatic or 8x1 inch Urethane, Pneumatic-Flat Free Insert 8x1 inch Solid Rubber* and...

  • Page 16: Safety/Handling Of Wheelchairs

    Use this information only as a basic guide. The techniques that are discussed on the following pages have been used successfully by many. Individual wheelchair users often develop skills to deal with daily living activities that may differ from those described in this manual. Invacare recognizes and encourages each individual to try what works best for him/her in overcoming architectural obstacles that they may encounter.

  • Page 17: Coping With Everyday Obstacles

    5 SAFETY/HANDLING OF WHEELCHAIRS Coping With Everyday Obstacles Coping with the irritation of everyday obstacles can be alleviated somewhat by learning how to manage your wheelchair. Keep in mind your center of gravity to maintain stability and balance. A Note to Wheelchair Assistants When assistance to the wheelchair user is required, remember to use good body mechanics.

  • Page 18: Reaching, Leaning And Bending Forward

    5 SAFETY/HANDLING OF WHEELCHAIRS Reaching, Leaning and Bending Forward WARNING DO NOT attempt to reach objects if you have to move forward in the seat or pick them up from the floor by reaching down between your knees.  For this procedure refer to FIGURE 1. Position the front casters so that they are extended as far forward as possible and engage wheel locks.

  • Page 19: Tipping

    5 SAFETY/HANDLING OF WHEELCHAIRS Tipping WARNING DO NOT tip the wheelchair without assistance. When tipping the wheelchair, an assistant should grasp the back of the wheelchair on a non-removable (non-detachable) part. Inform the wheelchair occupant before tipping the wheelchair and remind him/her to lean back. Be sure the occupant’s feet and hands are clear of all wheels and/or pinch points.
  • Page 20 5 SAFETY/HANDLING OF WHEELCHAIRS Method 2 - Wheelchair Without Step Tubes. WARNING ALWAYS check hand grips for looseness before using the wheelchair. If loose and/or worn, replace IMMEDIATELY.  For this procedure refer to FIGURE 4. This method requires two assistants. The second assistant should be positioned at the front of the wheelchair lifting upward on a non-removable (non-detachable) part of the wheelchair frame when lifting the wheelchair and stabilizing the wheelchair when the wheelchair...

  • Page 21: Stairways

    ALWAYS wear your seat positioning strap. Inasmuch as the seat positioning strap is an option on this wheelchair (you may order with or without the seat positioning strap), Invacare strongly recommends ordering the seat positioning strap as an additional safeguard for the wheelchair user. The seat positioning strap is a positioning strap only. It is not designed for use as a safety device withstanding high stress loads such as auto or aircraft safety belts.

  • Page 22: Escalators

    5 SAFETY/HANDLING OF WHEELCHAIRS The wheelchair should not be lowered until the last stair has been negotiated and the wheelchair has been rolled away from the stairway. If necessary, rotate the anti-tippers so the wheels are facing down. Moving Down Stairs If necessary, rotate the anti-tippers so the wheels are facing up.

  • Page 23: Transferring To And From Other Seats

    5 SAFETY/HANDLING OF WHEELCHAIRS Transferring To and From Other Seats. WARNING Before attempting to transfer in or out of the wheelchair, every precaution should be taken to reduce the gap distance. Turn both casters parallel to the object you are transferring onto. Also be certain the wheel locks are engaged to help prevent the wheels from moving.

  • Page 24: Unfolding And Folding Wheelchair

    Press downward on the top of the seat rail until the wheelchair is fully open and the seat rails are fully seated in the H-blocks. Tracer SX5 RECLINERS ONLY - Install spreader bar. Refer to Removing/Installing the spreader bar in section 10 of this manual.

  • Page 25: Folding Wheelchair

     For this procedure, refer to FIGURE 8 on page 26. Tracer SX5 RECLINERS ONLY - Perform the following steps: Push in detent pin on one side of spreader bar. While holding the spreader bar, pull out handle until the release pin is out of the handle of the back cane.
  • Page 26 5 SAFETY/HANDLING OF WHEELCHAIRS WARNING DO NOT allow upholstery to hang between the cross braces. Place excess seat upholstery over the armrest. Spreader Bar Detent Pin FIGURE 8 Folding Wheelchair ® Tracer Part No. 1110550...
  • Page 27 5 SAFETY/HANDLING OF WHEELCHAIRS Folding Hammock or Sling Seat Models  For this procedure, refer to FIGURE 9. Swing footrest/legrest and calfpads in locked position to the front of the wheelchair. Pivot footplates upward to vertical position. With both hands, grasp the middle of the seat upholstery at the front and back edge and lift up.

  • Page 28: Safety Inspection/Troubleshooting

    6 SAFETY INSPECTION/TROUBLESHOOTING 6 Safety Inspection/troubleshooting  Every six months or as necessary, take your wheelchair to a qualified technician for a thorough inspection and servicing. Regular cleaning will reveal loose or worn parts and enhance the smooth operation of your wheelchair. To operate properly and safely, your wheelchair MUST be cared for just like any other vehicle.
  • Page 29 6 SAFETY INSPECTION/TROUBLESHOOTING ❑ Check pneumatic tires for proper inflation. WARNING As with any vehicle, check the wheels and tires periodically for cracks and wear. Replace if damaged. ❑ Check that there is no excessive side movement or binding in the rear wheels when lifted and spun. ❑...
  • Page 30 6 SAFETY INSPECTION/TROUBLESHOOTING Inspect/Adjust Monthly ❑ Ensure that the wheelchair rolls straight (no excessive drag or pull to one side). ❑ Check that the wheel locks DO NOT interfere with tires when rolling. ❑ Check that the wheel lock pivot points are free of wear and looseness. ❑...

  • Page 31: Troubleshooting

    6 SAFETY INSPECTION/TROUBLESHOOTING Troubleshooting Chair Veers Chair 3 Sluggish Turn or Casters Squeaks Looseness Solutions Right/Left Wheels Performance Flutter Rattles Chair Check tires for correct and equal pressure Check for loose nuts and bolts. Check caster headtube angle. Check that rear wheels are equally spaced away from seat frame.

  • Page 32: Replacing/Repairing Rear Wheel Tire/Tube

    Replacing/Repairing Rear Wheel Tire/Tube or Refer to Replacing/Repairing Caster Tire/Tube. Replacing/Repairing Rear Wheel Tire/Tube WARNING Replacement of solid urethane tires is not recommended. If the solid urethane tire needs repaired, Invacare recommends replacing the complete wheel assembly. Replacement of rear wheel tube must be performed by a qualified technician.
  • Page 33 6 SAFETY INSPECTION/TROUBLESHOOTING Periodically adjust wheel locks in correlation to tire wear. Refer to Adjusting Patient Operated Wheel Locks on page 59. Periodically check handrims to ensure they are secured to the rear wheels. If loose, have them tightened by a qualified technician. Periodically check caster wheel bearings to make sure they are clean and free from moisture.

  • Page 34: Front Riggings

    7 FRONT RIGGINGS 7 Front Riggings WARNING After any adjustments, repair or service and before use, make sure all attaching hardware is tightened securely - otherwise injury or damage may occur. Installing/Removing Front Riggings  For this procedure refer to FIGURE 1. Installing Front Rigging Turn the front rigging assembly to the side.

  • Page 35: Adjusting Footplate Height

    7 FRONT RIGGINGS Adjusting Footplate Height  For this procedure, refer to FIGURE 2. This procedure applies to the swingaway front Front Rigging Support riggings and swingaway elevating legrest. Remove the front rigging assembly. Refer to Installing/Removing Front Riggings on page 34. Release Button ...

  • Page 36: Raising/Lowering Elevating Legrest Assembly

    7 FRONT RIGGINGS Raising/Lowering Elevating Legrest Assembly Release Lever WARNING If the wheelchair is equipped with push to lock wheel locks, elevating legrests, and wheel lock extension handles, the wheel lock extension handles MUST be removed before swinging the elevating legrests to the side, otherwise injury or damage may result.

  • Page 37: Replacing Heel Loop

    7 FRONT RIGGINGS Replacing Heel Loop  For this procedure, refer to FIGURE 4. Pull the cam lock lever up to unlocked position. Push in the release buttons and remove the footplate assembly from the front rigging support. Remove the mounting screw, spacer and locknut that secure the heel loop to the footplate. Remove existing heel loop from slide tube.

  • Page 38: Arms

    8 ARMS 8 Arms WARNING After any adjustments, repair or service and before use, make sure all attaching hardware is tightened securely - otherwise injury or damage may occur. Using or Replacing Flip-Back Armrest WARNING DO NOT operate or replace flip-back armrest when wheelchair is folded - otherwise injury or damage may result. Ensure armrest is securely locked into arm socket and armrest release button locks into place before using.
  • Page 39 8 ARMS Replacing Perform STEPS 1-2 above to flip the armrest back. Remove hex screw, spacer and locknut securing the EXISTING armrest and insert to the wheelchair frame. Remove the EXISTING armrest from frame. Inspect rear tube of new armrest to ensure insert is properly installed with mounting holes aligned. If not properly aligned, rotate the insert using a flat screwdriver to align the mounting holes.

  • Page 40: Adjusting Armrest Height

    8 ARMS Adjusting Armrest Height Locked (Vertical) Height WARNING Adjustment Lever Make sure the height adjustment lever is in the Armrest locked position before using the wheelchair.  For this procedure refer to FIGURE 2. Unlock the armrest by flipping the height adjustment lever on the top front of the armrest to the up (horizontal) position.

  • Page 41: Seat And Back

    9 SEAT AND BACK 9 Seat and Back WARNING After any adjustments, repair or service and before use, make sure all attaching hardware is tightened securely - otherwise injury or damage may occur.  The procedures in this section apply to non-recliner models only. For recliner models, refer to Recliner on page 64 Installing the Back Canes Outside of ...

  • Page 42: Replacing Back Upholstery

    9 SEAT AND BACK Replacing Back Upholstery Back Upholstery Washers  For this procedure, refer to FIGURE 2. Remove the eight mounting screws and washers that secure the existing back upholstery to the back canes. Remove existing back upholstery from the back canes. Securely tighten the new back upholstery to the back canes with the phillips screws and washers.The following chart determines the number of mounting screws for each seat depth.

  • Page 43: Adjusting Seat Depth

    9 SEAT AND BACK Adjusting Seat Depth WARNING The seat depth, size/position of the front casters, size/position of the rear wheels, use of an anti-tipper model, as well as the user condition directly relate to the stability of the wheelchair. Any change to one or any combination of the seven may cause the wheelchair to decrease in stability.

  • Page 44: Adjusting The Seat Width

    9 SEAT AND BACK Adjusting the Seat Width For this procedure, refer to FIGURE 5 on page 45, FIGURE 6 on page 46, and FIGURE 7 on page 47.  When adjusting the seat width of the wheelchair, the back and seat upholstery MUST be changed. If applicable, the headrest pillow and headrest upholstery MUST be changed as well.
  • Page 45 9 SEAT AND BACK SEAT WIDTH PIVOT LINK 14 INCH 14 inch 18 INCH DO NOT USE 16 INCH 18 inch 16 inch 18 INCH DO NOT USE 20 INCH 20 inch 22 INCH 22 inch FIGURE 5 Adjusting the Seat Width ®...
  • Page 46 9 SEAT AND BACK Button Screw (STEPS 2,7) Crossbrace (STEPS 4,5) Pivot Lock Locknut (STEPS (STEPS 2,7) 2,7) Locknut (STEPS Button Screw 2,7) (STEPS 2,7) Locknut (STEPS 2,7) Button Screw (STEPS 3,8) Button Screw Crossbrace (STEPS 2,7) Saddle (STEPS 3,8) Locknut Crossbrace Wheelchair...
  • Page 47 9 SEAT AND BACK DETAIL “B” Coved Washers Washer Washer Coved Washer Locknut Washer DETAIL “A” Crossbraces Coved Wheelchair Frame Washers Hex Screw DETAIL “B” - CROSSBRACE Washer HARDWARE (STEPS 4,5) Crossbrace Saddle FIGURE 7 Adjusting the Seat Width ® Part No. 1110550 Tracer...

  • Page 48: Rear Wheels

    10 REAR WHEELS 10 Rear Wheels WARNING After any adjustments, repair or service and before use, make sure all attaching hardware is tightened securely - otherwise injury or damage may occur.  The procedures in this section apply to non-recliner models only. For recliner models, refer to Recliner on page 64. 10.1 Removing/Installing Rear Wheels WARNING Only a qualified technician may change the size of the rear wheel or the seat-to-floor height.

  • Page 49: Replacing Rear Wheel Handrim

    10 REAR WHEELS Remove the dust cap (SA Frame only), hex screw, washer (SA Axle Mounting Axle Frame only), spacer (if installed) and locknut that secure the rear Rear Wheel wheel to the wheelchair frame. Locknut Washer  The spacer is used on wheelchairs with removable (SA Frame arms only.
  • Page 50 10 REAR WHEELS Rear Wheel Mounting Screw Handrim FIGURE 2 Replacing Rear Wheel Handrim ® Tracer Part No. 1110550...

  • Page 51: Front Casters

    11 FRONT CASTERS 11 Front Casters WARNING After any adjustments, repair or service and before use, make sure all attaching hardware is tightened securely - otherwise injury or damage may occur. 11.1 Installing/Replacing Six/Eight Inch Front Casters/Forks WARNING Make sure both fork/caster assemblies are the same size before using the wheelchair, otherwise injury may occur. Non-recliner Wheelchairs Non-recliner Wheelchairs For this procedure, refer to FIGURE 1.

  • Page 52: Adjusting Forks

    11 FRONT CASTERS 11.2 Adjusting Forks To properly tighten caster journal system and guard against flutter, perform the following check: Tip back of wheelchair to floor. Pivot both forks and casters to top of their arc simultaneously. Let casters drop to bottom of arc (wheels should swing once to one-side, then IMMEDIATELY rest in a straight downward position). D.
  • Page 53 11 FRONT CASTERS 6 or 8 inch Locknut Fork Washer Screw (if applicable) Washer Front (if applicable) Caster FIGURE 2 Replacing Front Casters ® Part No. 1110550 Tracer...

  • Page 54: Anti-Tippers/Wheel Locks

    If so equipped, anti-tippers MUST be attached at all times. Inasmuch as the anti-tippers are an option for 0° or 3° on this wheelchair (You may order with or without the anti-tippers), Invacare strongly recommends ordering the anti-tippers as a safeguard for the wheelchair user.
  • Page 55 12 ANTI-TIPPERS/WHEEL LOCKS Installing Anti-Tippers To ensure the correct model anti-tipper is used refer to chart below. Measurements for anti-tippers are approximate and  are taken with extension tube in bottom hole position. ANTI-TIPPER (MEASUREMENTS IN INCHES) Anti-Tipper Height Bottom MODEL SEAT-TO-FLOOR LENGTH...
  • Page 56 2 inches, repeat steps 2-5 until the distance is 1 to 2 inches. If the 1 to 2 inch distance cannot be achieved, a different model may be required. Contact an Invacare dealer or qualified technician. ® Tracer Part No. 1110550...

  • Page 57: Using/Adjusting Patient Operated Wheel Locks

    12 ANTI-TIPPERS/WHEEL LOCKS 12.2 Using/Adjusting Patient Operated Wheel Locks Using Patient Operated Wheel Locks WARNING DO NOT attempt to stop a moving wheelchair with wheel locks. Wheel locks are not brakes. If the wheelchair is equipped with push to lock wheel locks, elevating legrests, and wheel lock extension handles, the wheel lock extension handles MUST be removed before swinging the elevating legrests to the side, otherwise injury or damage may result.
  • Page 58 12 ANTI-TIPPERS/WHEEL LOCKS Detail “A” Push wheel lock handle forward away from Pull wheel lock handle Push-To-Lock the tire to engage wheel lock toward the tire to disengage wheel lock Wheel Lock Unlocked Position Locked Position Detail “B” - Pull-To-Lock Push wheel lock handle away from the tire Pull wheel lock handle backward toward to disengage wheel lock...

  • Page 59: Adjusting Patient Operated Wheel Locks

    12 ANTI-TIPPERS/WHEEL LOCKS Adjusting Patient Operated Wheel Locks WARNING DO NOT attempt to stop a moving wheelchair with wheel locks. Wheel locks are not brakes. If wheel locks do not hold the occupied wheelchair in place, contact a qualified technician; otherwise injury or damage may occur. ...

  • Page 60: Seat To Floor

    13 SEAT TO FLOOR 13 Seat to floor WARNING After any adjustments, repair or service and before use, make sure all attaching hardware is tightened securely - otherwise injury or damage may occur. 13.1 Changing Seat-to-Floor Height  For this procedure, refer to FIGURE 1 on page 62 and FIGURE 2 on page 63. WARNING The seat depth, size/position of the front casters, size/position of the rear wheels, use of an anti-tipper model, as well as the user condition directly relate to the stability of the wheelchair.
  • Page 61 13 SEAT TO FLOOR If necessary, replace the front casters and forks with the casters and forks indicated in the chart. Refer to replacing front casters and installing/replacing fork assemblies in section 7 of this manual. Reinstall the rear wheels onto the wheelchair in the mounting position indicated in the chart. Refer to one of the following procedures. Adult/Hemi Frame Style - Refer to Removing/Installing Rear Wheels on page 48.
  • Page 62 Recliner Frame Style WARNING Tracer SX5 recliner ONLY: Mount the rear wheels in the Rear Wheel Offset Bracket ONLY. NEVER reposition the rear wheels to the forward position, stability of the wheelchair will decrease, and injury or damage may result.
  • Page 63 13 SEAT TO FLOOR 8 INCH FRONT CASTERS SEAT-TO-FLOOR HEIGHT FRONT CASTER MOUNT- REAR REAR WHEEL MOUNT- (IN INCHES) WHEEL POSITION SIZE POSITION 20 inch MIDDLE 22 inch BOTTOM 24 inch DETAIL “A” - REAR WHEEL DETAIL “B” - 8 INCH FORK MOUNTING POSITIONS - TRACER MOUNTING POSITIONS SX RECLINER FRAME STYLE...

  • Page 64: Recliner

    14 RECLINER 14 Recliner WARNING After any adjustments, repair or service and before use, make sure all attaching hardware is tightened securely - otherwise injury or damage may occur. 14.1 Recliner Operation WARNING ALWAYS make sure that the wheelchair is stable in the full reclined (back at 180°) position and the full upright (back at 90°) position BEFORE using the recliner option.
  • Page 65 To Healthcare Professional/Assistants: The Tracer SX5 Recliner wheelchair MUST be operated by a healthcare professional or assistant when in any reclined position. Make sure the patient is properly positioned in the wheelchair before reclining or inclining (reverse recline) to maintain maximum stability and safety.

  • Page 66: Replacing The Headrest Pillow

    14 RECLINER Handle Reclined Position Upright Position Release Levers Wheelchair Wheelchair Release Levers Level Level Surface Surface FIGURE 1 Recliner Operation 14.2 Replacing the Headrest Pillow  For this procedure, refer to FIGURE 2 on page 67. Unfasten straps of headrest pillow from behind headrest upholstery. Remove existing headrest pillow from headrest.

  • Page 67: Replacing The Headrest/Back Upholstery

    14 RECLINER Pressing firmly, attach the fastening strips of the new/existing headrest pillow to the fastening strips on the back of the headrest upholstery. Headrest Upholstery Fastening Strips Strap Strap Headrest Pillow FIGURE 2 Replacing the Headrest Pillow 14.3 Replacing the Headrest/Back Upholstery ...
  • Page 68 14 RECLINER Remove the twelve mounting screws that secure the back upholstery to the back canes. Secure new back upholstery to back canes with the existing twelve mounting screws. Securely tighten. Reengage spreader bar. Refer to Removing/Installing the Spreader Bar on page 69. Headrest Upholstery Mounting Screws Headrest...

  • Page 69: Removing/Installing The Spreader Bar

    14 RECLINER 14.4 Removing/Installing the Spreader Bar WARNING Make sure both release buttons of the spreader bar fully protrude out through the holes in the handle BEFORE using the wheelchair.  For this procedure, refer to FIGURE 4 on page 69. Removing Push in release button on one side of existing spreader bar.

  • Page 70: Removing And Installing Fixed Height Armrest

    14 RECLINER 14.5 Removing and Installing Fixed Height Armrest WARNING Make sure the armrest is securely locked before using the wheelchair.  For this procedure, refer to FIGURE 5. Removing Armrest Push down on armrest to ensure it is fully seated in front and rear sockets.

  • Page 71: Removing/Installing The Rear Wheels

    Rear Wheel Ensure both rear wheels are the same size before Offset Bracket using. Tracer SX5 recliner ONLY: Mount the rear wheels in the Rear Wheel Offset Bracket ONLY. NEVER reposition the rear wheels to the forward Rear Wheel Locknut position, as stability of the wheelchair will decrease, and injury or damage may result.

  • Page 72: Using/Adjusting The Clamp-On Wheel Locks

    For this procedure, refer to FIGURE 7. Locked Position The Tracer SX5 Recliner with 24-inch rear wheels uses the disk wheel locks. Refer to Using/Adjusting Patient Operated Wheel Locks on page 57. Ensure the wheelchair is not moving before engaging the wheel locks.
  • Page 73 14 RECLINER Reposition the wheel lock so that when engaged, the wheel lock shoe embeds the tire inch ( inch for pneumatic tires) and holds the occupied wheelchair in place when pushed. Securely tighten the bolt and locknut or socket screws securing the wheel lock to the wheelchair frame. Engage the wheel lock.

  • Page 74: Options

    15 OPTIONS 15 Options WARNING After any adjustments, repair or service and before use, make sure all attaching hardware is tightened securely - otherwise injury or damage may occur. 15.1 Installing Amputee Bracket  For ths procedure, refer to FIGURE 1 on page 75. Refer to the following chart or FIGURE 1 to determine the mounting position of the amputee bracket: SEAT-TO-FLOOR BRACKET...
  • Page 75 15 OPTIONS Bracket “A” Bracket “B” Locknuts Left Right Adult Right Adult Left Axle Spacer Toward Axle Spacer Toward Outside of Wheelchair Outside of Wheelchair Rear View of Amputee Bracket Hex Screws Hemi Left Hemi Right FIGURE 1 Installing Amputee Bracket ®...

  • Page 76: Installing Crutch And Cane Carrier

    15 OPTIONS 15.2 Installing Crutch and Cane Carrier WARNING Check base weekly to ensure proper placement. When loading the crutch/cane carrier, ensure items are securely placed into the base. Also ensure that there is no interference with folding the wheelchair, the rear wheels, or the swing-back arms. Strap MUST be securely fastened while carrying items.

  • Page 77: Installing The Seat Positioning Strap

    ALWAYS wear your positioning strap. Inasmuch as the Seat Positioning Strap is an option on this wheelchair (You may order with or without the seat restraint), Invacare strongly recommends ordering the Seat Positioning Strap as an additional safeguard for the wheelchair user.

  • Page 78: Installing The Wheel Lock Extension Handle

    15 OPTIONS 15.4 Installing the Wheel Lock Extension Handle WARNING If the wheelchair is equipped with push to lock wheel locks, elevating legrests, and wheel lock extension handles, the wheel lock extension handles MUST be removed before swinging the elevating legrests to the side, otherwise injury or damage may result.
  • Page 79 NOTES NOTES ® Part No. 1110550 Tracer...
  • Page 80 Invacare Corporation Canada © 2010 Invacare Corporation. All rights reserved. One Invacare Way 570 Matheson Blvd E Republication, duplication or modification in whole Elyria, Ohio USA Unit 8 or in part is prohibited without prior written 44036-2125 Mississauga Ontario permission from Invacare.
