Invacare Solara 3G User Manual

Hide thumbs Also See for Solara 3G:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Manual
Enlarged version
®
®

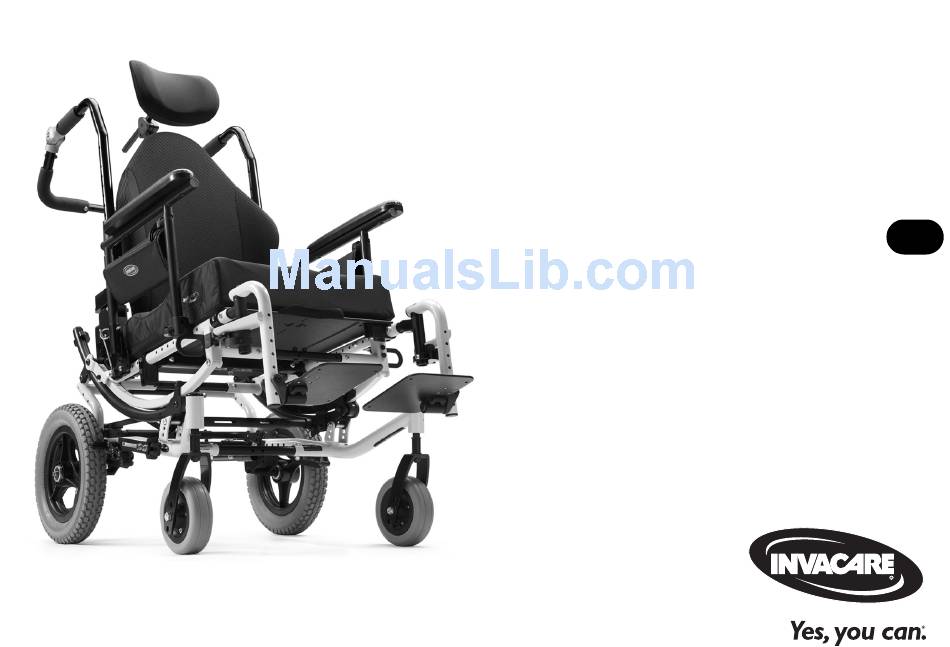

Invacare
Solara
3G/Spree 3G Wheelchair

User Manual

EN
This manual MUST be given to the user of the product.
BEFORE using this product, read this manual and save for future reference.

Advertisement

Table of Contents
loading

Related Manuals for Invacare Solara 3G

Summary of Contents for Invacare Solara 3G

  • Page 1: User Manual

    ® ® Invacare Solara 3G/Spree 3G Wheelchair User Manual This manual MUST be given to the user of the product. BEFORE using this product, read this manual and save for future reference.
  • Page 2 © 2016 Invacare Corporation. All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.

  • Page 3: Table Of Contents

    Installing/Removing Dual Point Armrests (Fixed And Adjustable Height) ..........................38 Removing/Installing and Using Flipback Armrests ..................................40 Installing/Removing T-Arms..........................................42 Using Locking Cantilever Arms ........................................43 Using Non-Locking Cantilever Arms ......................................43 Using the Wheel Locks ............................................. 44 Operating Hublocks ............................................48 Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...
  • Page 4 Adjusting the Anti-Tippers..........................................70 Adjusting The Quick-Release Axle ........................................71 TRANSPORTING Transporting................................................72 SAFETY INSPECTION/MAINTENANCE Safety Inspection Checklists ..........................................73 Troubleshooting - Mechanical ......................................... 76 Maintenance Safety Precautions ........................................76 Suggested Maintenance Procedures ........................................ 76 Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...
  • Page 5 Adjusting Locking Cantilever Arm Height................................95 Installing/Adjusting Non-Locking Cantilever Arms ..................................97 Arm Pad Replacement for Cantilever Arms....................................99 12 BACK/SEAT Adjusting the Height of the Adjustable Height Back Canes..............................100 Adjusting the Back Angle ..........................................101 Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...
  • Page 6 Wheel Lock Adjustment ..........................................118 17 RECLINER BACK OPTION Replacing Back/Headrest Upholstery......................................121 18 CONTRACTURE FOOT ASSEMBLY Adjusting the Angle of the Contracture Assembly ..................................123 Adjusting the Angle of the Bilateral Contracture Footplate..............................124 Depth Adjustment .............................................126 Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 7: Part No 1154295

    CONTENTS Contracture Footplate Height Adjustment ....................................127 Contracture Assembly Width Adjustment....................................128 19 ANNEX A - RESNA TEST DATA Disclosure................................................131 Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 8: General

    Caution indicates a potentially hazardous situation which, if not avoided, may result in property damage or minor injury or both. IMPORTANT Indicates a hazardous situation that could result in damage to property if it is not avoided. Gives useful tips, recommendations and information for efficient, trouble-free use.  Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 9: Indication For Use

    This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state. Invacare warrants its product, except for the seat cushion (which is not warranted), to be free from defects in materials and workmanship for a period of one year from the date of purchase when purchased new and unused from Invacare or an authorized provider.

  • Page 10: Overview

    Serial Number proper operation and safe practices. WARNING Documentation can be obtained at: • www.invacare.com • ph (440) 329-6000 Label Refer to Owner's Manual • One Invacare Way, Elyria OH 44035-2125 for proper anti-tipper setting. 1085379 Patent Label Solara 3G WARNING...

  • Page 11: Wheelchairs With Transport Ready Option

    2 OVERVIEW Wheelchairs with Transport Ready Option Refer to attached TRANSPORT READY OPTION Instruction Card and wheelchair Owner's Manual before use. P/N 1120033 REV B - 08/05 Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 12: Component Identification

    2 OVERVIEW Component Identification Push Handle Seating System Armrest Seat Upholstery Wheelchair Frame Rear Wheel Axle Footplate Front Caster Rear Wheel Wheel Lock Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 13: Specifications

    **WHEELCHAIR TRANSPORT WEIGHT: ANTI-TIPPERS: Standard FOOTREST: Swing-Away Footrest (Standard) Articulating Swing-Away Footrest, Elevating Swingaway Footrests, Lift Off Footrests, Contracture Footrests (Optional) FOOT SUPPORT TO SEAT: - 16 inches LEG TO SEAT ANGLE: 118° Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...
  • Page 14 8 x 1 or 8 x 1 -inch with Precision Sealed Bearings (Optional), 4 x 1 5 x 1 or 6 x 1inch with Precision Sealed Bearings (Optional). SEAT WIDTH: 12 - 24 inches 12 - 18 inches Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...
  • Page 15 RECLINER BACK: Dual Cable Trigger Mechanism (Optional) 90 -160° of Tilt FRAME: Steel WEIGHT LIMITATION: Solara 3G: 300 lbs (136 kg) Spree 3G: 200 lbs (91 Kgs) Solara with Heavy Duty Package: 400 lbs (182 kg) TURNING RADIUS: 25 inches ...

  • Page 16: Safety

    Use of non-Invacare accessories may result in injury or damage. Invacare products are specifically designed and manufactured for use in conjunction with Invacare accessories. Accessories designed by other manufacturers have not been tested by Invacare and are not recommended for use with Invacare products.
  • Page 17 DO NOT smoke while using this wheelchair. NOTICE THE INFORMATION CONTAINED IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. Check all parts for shipping damage and test before using. In case of damage, DO NOT use. Contact Invacare/Carrier for further instruction. Repair and Service Information WARNING Unless otherwise noted, all service and adjustment should be performed while the wheelchair is unoccupied.

  • Page 18: Wear And Tear Items

    Normal wear and tear items and components include but are not limited to: all upholstery items including seat and back upholstery, arm and calf pads, cushions, wheels, tires and casters. Invacare reserves the right to ask for any item back that has an alleged defect in workmanship. See Warranty policy shipped with the product for specific warranty information.
  • Page 19 ALWAYS use the handrims for self-propulsion. Inasmuch as the handrims are an option on this wheelchair (you may order with or without the handrims), Invacare strongly recommends ordering the handrims as an additional safeguard for the wheelchair user.

  • Page 20: Wheel Locks

    The manual wheelchair is intended for indoor and outdoor use on firm surfaces. When outdoors on wet, soft ground or on gravel surfaces, anti-tippers may not provide the same level of protection against tip over. DO NOT operate on soft surfaces such as sand, grass or gravel. Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...
  • Page 21 ALWAYS wear your seat positioning strap. Inasmuch as the seat positioning strap is an option on this wheelchair (you may order with or without the seat positioning strap), Invacare strongly recommends ordering the seat positioning strap as an additional safeguard for the wheelchair user. The seat positioning strap is a positioning strap only. It is not designed for use as a safety device withstanding high stress loads such as auto or aircraft safety belts.
  • Page 22 As of this date, the Department of Transportation has not approved any tie-down systems for transportation of a user while in a wheelchair, in a moving vehicle of any type. It is Invacare’s position that users of wheelchairs should be transferred into appropriate seating in vehicles for transportation and use be made of the restraints made available by the auto industry.
  • Page 23 DO NOT attempt to stop the wheelchair while on a sloped surface. Invacare strongly recommends proceeding down ramps or slopes slowly to avoid hard braking or sudden stops. DO NOT leave elevating legrests in the fully extended position when proceeding down ramps or slopes.
  • Page 24 BACK HEIGHT • SEAT DEPTH • BACK ANGLE • SEATING SYSTEM • TILT ANGLE N/A N/A • CASTER SIZE • CASTER POSITION • WHEEL SIZE • WHEEL POSITION • USER CONDITION • SEAT HEIGHT Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...
  • Page 25 Make sure the patient is properly positioned in the wheelchair before reclining or inclining (sitting up) to maintain maximum stability and safety. Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 26: Weight Limitation

    Invacare Solara 3G wheelchair has a weight limitation of 300 lbs (136 kgs). Invacare Solara 3G wheelchair with the Heavy Duty package has a weight limitation of 400 lbs (181 kgs). Invacare Spree 3G wheelchair has a weight limitation of 200 lbs (91 kgs).
  • Page 27 WARNING As a manufacturer of wheelchairs, Invacare endeavors to supply a wide variety of wheelchairs to meet many needs of the end user. However, final selection of the type of wheelchair to be used by an individual rests solely with the user and his/ her healthcare professional capable of making such a selection.

  • Page 28: Safety/Handling Of Wheelchairs

    Use this information only as a “basic” guide. The techniques that are discussed on the following pages have been used successfully by many. Individual wheelchair users often develop skills to deal with daily living activities that may differ from those described in this manual. Invacare recognizes and encourages each individual to try what works best for him/her in overcoming architectural obstacles that they may encounter, however ALL WARNINGS and CAUTIONS given in this manual MUST be followed.
  • Page 29 This can be achieved by advancing the wheelchair and then reversing it in a straight line. The Invacare Solara 3G/ Spree 3G wheelchair should be operated by an assistant when the wheelchair is in any tilted position.
  • Page 30 Proper positioning is essential for your safety. When reaching, leaning, bending or bending forward, it is important to use the casters as a tool to maintain stability and balance. FIGURE 1 Stability and Balance Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...
  • Page 31 Position wheelchair as close as possible to the desired object. Point front casters forward to create the longest possible wheelbase. Reach back only as far as your arm will extend without changing your sitting position. FIGURE 2 Reaching, Leaning and Bending - Forward/ Backwards Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...
  • Page 32 This could result in Step Tube injury to the occupant. Push the wheelchair forward until the rear wheels roll up and over the curb. FIGURE 3 Tipping - Curbs: Method 1 - Wheelchair with Step Tubes Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...
  • Page 33 Stairways WARNING Extreme caution is advised when it is necessary to move an occupied wheelchair up or down the stairs. Invacare recommends that, if possible, the user be removed from the wheelchair prior to moving. Invacare recommends using two assistants and making thorough preparations. Make sure to use ONLY secure, non-detachable parts for hand-hold supports.
  • Page 34 The wheelchair should not be lowered until the last stair has been negotiated and the wheelchair has been rolled away from the stairway. FIGURE 5 Stairways If necessary, rotate the anti-tippers so the wheels are facing down. Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 35: Transferring To And From Other Seats

    Shift body weight into seat with transfer. During independent transfer, little or no seat  platform will be beneath you. Use a transfer board if at all possible. FIGURE 6 Transferring To and From Other Seats. Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 36: Operation

    Lift the footrest assembly out of the mounting pin of the wheelchair frame. Repeat STEPS 1-2 for opposite side, if necessary.  Only the swing away footrest is shown. The lift off footrest assembly and elevating legrest install/remove in the same manner. Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 37: Raising/Lowering The Elevating Legrest

    Lowering: Lift elevating legrest assembly up with one hand. While supporting the elevating legrest assembly (and user’s leg), pull release lever up with other hand and lower legrest assembly to desired height. Elevating Legrest Assembly FIGURE 2 Raising/Lowering the Elevating Legrest Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 38: Installing Impact Guards/Calf Strap/H-Calf Strap

    Repeat STEPS 1-3 for the opposite side of the wheelchair. For adjustable height dual point armrests, adjust the height if necessary. Refer to Adjusting the Height of the Adjustable Height Armrests on page 68. Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 39: Removing Armrest

    Repeat STEPS 1-2 for opposite side of wheelchair, if necessary. DETAIL "A" Armrest Assembly Unlocked - Up Locked - Down (Horizontal) (Vertical) Arm Socket Armrest Release Lever FIGURE 4 Installing/Removing Dual Point Armrests (Fixed And Adjustable Height) Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 40: Removing/Installing And Using Flipback Armrests

    Install the quick release pin into the rear arm socket. Quick Release Pin Armrest Release Lever Repeat STEPS 1-4 for remaining flip back armrest, if necessary. DETAIL "A" Unlock Locked Position Position (Horizontal) (Vertical) FIGURE 5 Removing/Installing Flip Back Armrest Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 41: Using Armrest

    Flip armrest release lever to the locked (vertical) position (Detail "A"). DETAIL "A" Flip Back Armrest Flip Back Armrest Locked Position (Vertical) Front Arm Socket Unlock Position (Horizontal) Armrest Release Lever FIGURE 6 Using Armrest Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 42: Installing/Removing T-Arms

    Press the locking lever in and lift the T-Arm straight up and out of FIGURE 7 Installing/Removing T-Arms the T-Arm socket.. If the T-Arm does not slide in the T-Arm socket  as desired contact a qualified technician/dealer. Repeat STEP 1 for opposite side of the wheelchair. Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 43: Using Locking Cantilever Arms

    Pull the end of the cantilever arm down to lower the cantilever arm. Pull the end of the cantilever arm up to move it out of the way. FIGURE 9 Using Non-Locking Cantilever Arms Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 44: Using The Wheel Locks

    Pull the wheel lock handle forward to engage the wheel locks. Reverse STEP 1 to disengage the wheel locks. Push to Lock Wheel locks Push the wheel lock handle forward to engage the wheel locks. Reverse STEP 1 to disengage the wheel locks. Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...
  • Page 45 Locked Position Side View Side View Wheel Lock Wheel Lock Shoe Shoe Wheel Lock Handle Unlocked Locked Position Position Wheel Lock Top View Top View Handle FIGURE 10 Using the Pull to Lock Wheel Locks Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...
  • Page 46 Locked Position Side View Side View Wheel Lock Shoe Wheel Lock Shoe Wheel Lock Handle Locked Position Unlocked Position Wheel Lock Top View Top View Handle FIGURE 11 Using the Push to Lock Wheel Locks Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...
  • Page 47 Lift up on footlock lever to disengage the footlock. Locked Unlocked Push Down to Footlock Lever Engage Footlock Lever Lift Up to Disengage Rear Wheel Rear Wheel FIGURE 12 Using the Push to Lock Wheel Locks- Footlock Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 48: Operating Hublocks

    Always keep hands and fingers clear of moving parts to avoid injury.  If hublocks do not engage properly (wheels move while hublocks are locked) or do not disengage properly contact a qualified technician. Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 49: Patient Operated Hublock

    Engaging the Hublocks - Press hublock pedal down to engage (Hublock Pedal Up) the hublocks • Disengaging the Hublocks - Push hublock pedal up to disengage Locked (Hublock Pedal the hublocks. Down) Hublock Pedal FIGURE 14 Attendant Operated Hublock/Foot Operated Hublock Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 50: Installing The Anti-Tippers

    Press the release buttons in and install the anti-tippers with the wheels facing down until the locking buttons lock in place (FIGURE 15). Adjust the anti-tippers. Refer to Adjusting the Anti-Tippers on page 70. Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 51: Using The Adjustable Angle Stroller Handles

    Unfold - Push/pull the back towards rear of wheelchair until it Levers locks in place. • Fold - Pick up on the back release levers and push the back towards the front of the wheelchair. FIGURE 17 Folding/Unfolding the Back Assembly Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 52: Recliner Operation

    ALWAYS return the back to the upright position before lifting the wheelchair. Make sure occupant's hands and body are clear of all pinch points before reclining back. Pinch points exist between spreader bar and gas cylinders. Use caution, otherwise injury may occur. Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...
  • Page 53 When the back reaches desired angle, slowly release the handles of the recliner cable assemblies. Disengage the wheel locks. FIGURE 18 Recliner Operation Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 54: Engaging Tilt-In-Space

    4.15 Engaging Tilt-In-Space WARNING The Invacare Solara wheelchair MUST be operated by an assistant when in ANY tilted position. ALWAYS make sure that the wheelchair is stable before using the tilt-in-space. Rear wheels may have to be repositioned rearward depending on the degree of tilt-in-space required. ALWAYS ensure stability before using maximum amount of tilt-in-space.
  • Page 55 4 OPERATION DETAIL “A” Trigger DETAIL Release “B” Lever Gear Foot Lever Tilt Rack Mechanism FIGURE 19 Engaging Tilt-In-Space Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 56: Installing/Removing Rear Wheels - Quick-Release

    Adjust the wheel locks. Refer to Wheel Lock Adjustment on Axle page 118. Mounting Only 12-inch rear wheel is shown. All other  Plate Quick-Release Axle wheels will install/remove in the same manner. FIGURE 20 Installing/Removing Rear Wheels - Quick-Release Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 57: Transport Ready Option

    5 Transport Ready Option WARNING Contact Invacare Corporation (800-333-6900) with any questions about using this wheelchair for seating in a motor vehicle. When feasible, wheelchair occupants should transfer into the vehicle seat and use the OEM (Original Equipment Manufacturer) vehicle-installed restraint system.

  • Page 58: About Transport Ready Packages

    As of this date, the Department of Transportation has not approved any tie-down systems for transportation of a user while in a wheelchair, in a moving vehicle of any type. It is Invacare’s position that users of wheelchairs should be transferred into appropriate seating in vehicles for transportation and use be made of the restraints made available by the auto industry.

  • Page 59: Securing The Wheelchair To The Vehicle

    The estimated seated height (HHT) from the ground or floor to the top of the wheelchair-seated occupant’s head ranges from approximately 47-inches for a small adult female to about 61-inches for a tall adult male (Frontal Clear Zone) 16in. 8in. Side View 8in. 16in. (Frontal Clear Zone) Top View Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...
  • Page 60 5 TRANSPORT READY OPTION Securement Points Tie-Down Bracket Tie-Down Brackets FIGURE 1 Securement Points Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 61: Securing The Wheelchair

    Detail “A” in FIGURE 3. Pull release barrel out (Detail “B”). Rotate tie down bracket counterclockwise. Position mounting hole in tie down bracket on anchor pin (Detail “C”). Repeat STEPS 2-4 for remaining tie down bracket. Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...
  • Page 62 Horizontal Lines DETAIL “A” Tilt Angle Indicator Rocker Tube Rocker Tube Tilt Angle Indicator DETAIL “B” Anchor DETAIL “ Anchor C” Tie Down Bracket Tie Down Bracket Release Barrel FIGURE 2 Tilt Lock Out Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 63: Securing The Occupant

    The wheelchair has been provided with a pelvic belt which meets the requirements of ANSI/RESNA WC/19. The pelvic belt provided by Invacare has been designed to accommodate use on either side of the vehicle. If necessary, follow the instructions below to reverse the orientation of the pelvic belt to accommodate the vehicle-anchored upper torso belt.
  • Page 64 5 TRANSPORT READY OPTION DETAIL “A” - PELVIC BELT Pelvic Belt Bracket Pelvic Belt Slot Male End (Used to secure the vehicle-anchored Tie-Down upper torso belt.) Bracket FIGURE 3 Wheelchair-Anchored Belts Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...
  • Page 65 The test for Lateral Stability Displacement for Point (P) is shown in FIGURE 4. The average test result for point (P) is 0.65-inches (16.5 mm). Rear View Point (P) NOTE: Rear view of wheelchair and human surrogate secured on test platform and tilted to 45 degrees. Test Platform ° FIGURE 4 Vehicle-Anchored Belts Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 66: Positioning Belts

    Steeper belt angles also reduce the tendency for upper-torso belts to pull the pelvic belt onto the abdomen during frontal impact loading. Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...
  • Page 67 Ensure the belt(s) are not be twisted. Adjust belts as firmly as possible, being mindful of user comfort. DO position belts INSIDE of DO NOT position belts OUTSIDE armrests, wheels, etc. of armrests, wheels, etc. FIGURE 5 Positioning Belts Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 68: Adjustment

    Pull up on the armrest assembly to ensure the armrest is locked in place. Repeat STEPS 1-4 for opposite side of wheelchair, if necessary. DETAIL "A" Locked - Down Unlocked - Up (Vertical) (Horizontal) Armrest Release Lever FIGURE 1 Adjusting the Height of the Adjustable Height Armrests Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 69: Adjusting T-Arm Height

    T-Arm Release Lever - contact a qualified technician/dealer. - LOCKED Position Screws UNLOCKED Position Lock the T-Arm by flipping the T-Arm release lever towards the FIGURE 2 Adjusting T-Arm Height front of the wheelchair. Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 70: Adjusting The Anti-Tippers

    2 inch clearance cannot be obtained, contact a qualified technician. Repeat STEPS 1-3 for opposite side. Release Button Anti-tipper Release Button Locking Button Anti-tipper (Wheeled Portion) Wheelchair Frame FIGURE 3 Adjusting the Anti-Tippers Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 71: Adjusting The Quick-Release Axle

    Release detent pin ensuring that the locking pins are fully released. Detent Pin Repeat STEPS 3-5 until the quick-release axle locks properly. Wheel Hub Repeat STEPS 1-6 for opposite side, if necessary. (Reference) FIGURE 4 Adjusting The Quick-Release Axle Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 72: Transporting

    Remove the stroller handle (if applicable). Refer to Installing/Removing Non-Adjustable Stroller Handles on page 103. Pick up on the back release levers and push the back towards the front of the wheelchair. Refer to Folding/Unfolding the Back Assembly on page 51. Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 73: Safety Inspection/Maintenance

    Ensure wheel/fork assembly has proper tension when caster is spun. Caster should come to a gradual stop. ❑ Loosen/tighten caster locknut if wheel wobbles noticeably or binds to a stop. ❑ Ensure all caster/wheel/fork/headtube fasteners are secure. ❑ Ensure that casters are free of debris. Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...
  • Page 74 Ensure wheel locks DO NOT interfere with tires when rolling. ❑ Ensure wheel lock pivot points are free of wear and looseness. ❑ Ensure wheel locks are easy to engage. ❑ Inspect axles to ensure they are free from dirt, lint, etc. Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...
  • Page 75 Clean upholstery with mild soap and water or spray disinfectant using a sponge. DO NOT use bleach or wash in a washing machine. ❑ Clean upholstery and armrests. ❑ Clean and wax all parts. ❑ Check that all labels are present and legible. Replace if necessary. Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 76: Troubleshooting - Mechanical

    DO NOT overtighten hardware attaching to the frame. This could cause damage to the frame tubing. Suggested Maintenance Procedures Before using your wheelchair, make sure all nuts and bolts are tight. Check all parts for damage or wear and replace. Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...
  • Page 77 • Rubber Tires - 30% or more of the tire has worn away. Invacare recommends that rear wheel tire/tube and caster tire/tube be replaced every five years. Periodically check handrims to ensure they are secured to the rear wheels. Keep tilt slides and roller bearings free of dirt and lint to ensure proper operation of the tilt mechanism.
  • Page 78 10. Periodically check front caster wheel bearings to make sure they are clean and free from moisture. Use a Teflon® lubricant if necessary. 11. Check upholstery for sagging, rips or tears. 12. Clean upholstery with mild soap and water. 13. Recliners Only - Periodically check gas cylinders for oil leaks. If oil leak is detected, contact Invacare. Replacing/Repairing Rear Wheel Tire/Tube WARNING Replacement of solid urethane tires is not recommended.

  • Page 79: Cleaning Instructions

    Plastic surfaces should be cleaned with soft cloth, mild detergent, and hot water. Rinse surface with clean water. Dry surface with soft cloth. Solvents or kitchen cleaners must not be used on plastic surfaces. Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 80: Service

    For any service requirements beyond these procedures contact Invacare. For a list of parts or part numbers contact your dealer/Invacare. DO NOT return product without first contacting your dealer/Invacare for shipping and packing instructions. If necessary, contact Invacare for a list of dealers.

  • Page 81: Set Up Inspection Checklists

    Check pneumatic tires for proper inflation. ❑ Ensure there is no excessive side movement or binding when drive ❑ Check that all labels are present and legible. Replace if necessary. wheels are lifted and spun. Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 82: Front Riggings

    Install the footrest assembly onto the wheelchair. Refer to Installing/Removing Footrests on page 36. Repeat STEPS 1-5 for the opposite side of the wheelchair, if FIGURE 1 Adjusting Footrest Height - 60°, 70° and 70° Taper necessary. Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...
  • Page 83 Secure the footplate to the footrest support with the coved washer and locknut. Footrest Support Height Adjustment Holes Socket Bolt Locknut Footplate FIGURE 2 Adjusting Footrest Height - 70° MFX, 90°, 70° LIFT and 90° LIFT Footrests. Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 84: Installing Adjustable Angle Flip-Up Footplate Hinge

    • too loose, tighten the socket screw and locknut approximately turn. Footrest Support Tube Locknut Socket Screw Footplate Hinge FIGURE 3 Installing Adjustable Angle Flip-Up Footplate Hinge Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 85: Adjusting Adjustable Angle Flip-Up Footplates

    Retighten the adjustment screw. Torque to over 90 in-lbs, but no more than 300 in-lbs. Repeat STEPS 1-3 for opposite footplate, if desired. Screw in or out until the adjustable angle flip-up footplate is perpendicular to the footrest assembly or the desired inversion/eversion is obtained. Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 86: Raising/Lowering The Elevating Legrest

    Lowering: Lift elevating legrest assembly up with one hand. While supporting the elevating legrest assembly (and user’s leg), pull release lever up with other hand and lower legrest assembly to desired height. Elevating Legrest Assembly FIGURE 5 Raising/Lowering the Elevating Legrest Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 87: Adjusting Footplate Height And Calfpad Height/Depth

    Footplate Locknut Using the mounting screw spacer and locknut, secure the calfpad to the calfpad bracket. FIGURE 6 Adjusting Footplate Height and Calfpad Height/Depth If necessary, repeat STEPS 1-3 to adjust remaining calfpad assembly. Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 88: Composite/Articulating Footplate Heel Loop Replacement

    Locknut Replace heel loop. Footplate Reverse the disassembly procedures. FIGURE 7 Composite/Articulating Footplate Heel Loop  When securing the heel loop to the footrest Replacement assembly, tighten phillips screw until the spacer is secure. Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 89: Replacing Bolt On Sector Block

    Secure the new sector block to the front rigging support tube with Screw Screw the existing mounting screws and washers. Tighten securely. Washer Locking Pin Sector Block FIGURE 9 Replacing Clamp on Sector Block Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 90: Arms

    Remove the mounting screws that secure the existing armrest pad Armrest Pad to the armrest assembly. Install new armrest pad and securely tighten with the existing mounting screws. Armrest Assembly Mounting Screws FIGURE 1 Adjusting T-Arm Depth Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 91: Adjusting The T-Arm

    - LOCKED Position will make it easier to move the inside T-Arm post up and down. FIGURE 2 Adjusting T-Arm Height Lock the T-Arm by flipping the T-Arm release lever towards the front of the wheelchair. Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...
  • Page 92 Securely tighten. Reattach the arm pad to the arm tube with the two mounting T-Arm Post Mounting Screw screws. Tighten securely. Repeat for the opposite side, if necessary. FIGURE 4 Adjusting T-Arm Depth Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 93: Adjusting T-Arm Sockets

    Repeat STEPS 3-6, if necessary until the T-Arm slides in the T-Arm T-Arm Socket Locking Lever socket as desired. FIGURE 5 Adjusting T-Arm Sockets. If necessary, install rear wheels. Refer to Installing/Removing Rear Wheels on page 116. Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 94: Adjusting T-Arm Transfer Assists And/Or Side Guards

    Secure the side guard to the bottom clamp with the two socket Screws screws. Bottom Clamp Install the T-Arm onto the wheelchair. Refer to Installing/Removing T-Arms on page 42. FIGURE 6 Adjusting T-Arm Transfer Assists And/or Side Guards. Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 95: Installing Locking Cantilever Arms

    Remove the cantilever arm assembly with hardware from the back cane. FIGURE 7 Installing Locking Cantilever Arms. - Adjusting Locking Cantilever Arm Height. Perform STEPS 1-4 in Installing Locking Cantilever Arms. on page 95 to reposition the arm at the desired height. Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...
  • Page 96 Arm Adjustment Plate Arm Adjustment 90° 100° Plate Locknut Locking Pin Back Angle Bracket Arm Adjustment Back Angle Bracket Arm Adjustment Plate Plate Washer 120° 110° FIGURE 8 Adjusting the Locking Cantilever Arm Angle Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 97: Installing/Adjusting Non-Locking Cantilever Arms

    Secure the cantilever arm to the wheelchair with a washer and locknut. Cantilever Arm Adjust the angle of the cantilever arm, if necessary. Refer to Washer Adjusting Non-Locking Cantilever Arm Angle on page 98. Cantilever Lower Hex Bolt FIGURE 9 Installing Non-Locking Cantilever Arms Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...
  • Page 98 Tighten the mounting screw securing the cam to the cantilever arm. CAM POSITIONS Back Cane NOTE: All arm angles are relative to the back cane. 8° Arm Angle 12° Arm Angle 16° Arm Angle FIGURE 10 Adjusting Non-Locking Cantilever Arm Angle Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 99: Arm Pad Replacement For Cantilever Arms

    Secure with existing hardware. Full Length Arm Pads Desk Length Arm Pads Arm Pad Armrest Pad Cantilever Arm Cantilever Arm Cantilever Tube Tube Slide Tube Mounting Screws Mounting Screws FIGURE 11 Arm Pad Replacement for Cantilever Arms Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 100: Back/Seat

    Adjust the back cane to the desired height adjustment hole. Reinstall the back height adjustment screw and locknuts that secure the back canes to the wheelchair frame. Back Height Adjustment Locknut Screw FIGURE 1 Adjusting the Height of the Adjustable Height Back Canes Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 101: Adjusting The Back Angle

    DETAIL “A” - AVAILABLE Locknut BACK ANGLES 95° 105° 115° 90° 100° 110° Spacer Mounting Inner Backrest 120° Screw Mounting Bracket Outer Backrest Mounting Bracket FIGURE 2 Adjusting the Back Angle on Wheelchairs Equipped with Fixed Back Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...
  • Page 102 Spacer Locknut DETAIL “A” (Not Shown) Backrest Mounting Bracket Screw 90° Backrest 100° Bracket 95° 110° 105° 120° Adjuster Spacer 115° FIGURE 3 Adjusting the Back Angle on Wheelchairs Equipped with Fold Down Back Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 103: Installing/Removing Non-Adjustable Stroller Handles

    Pull out the bolts that secure the stroller handle to the back canes. FIGURE 4 Installing/Removing Non-Adjustable Stroller Remove the stroller handle from the wheelchair. Handles Install the new stroller handle if desired. Refer to Installing Stroller Handles on page 103. Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 104: Adjusting The Adjustable Angle Stroller Handles

    Seat Positioning Strap Coved spacers and back cane. Spacers Securely tighten the seat positioning strap to the wheelchair with Hex Screw the locknut. Repeat STEPS 1-4 for opposite side. FIGURE 6 Installing/Replacing Seat Positioning Straps Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...
  • Page 105 Install the new seat positioning strap to the wheelchair. Refer to Installing/Replacing Seat Positioning Straps on page 104. Back Plate Back Cane Locknut Seat Positioning Strap Coved Spacers Hex Screw FIGURE 7 Installing/Replacing Seat Positioning Straps Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 106: Installing/Replacing Chest Positioning Straps

    Transport ready option only - This wheelchair has been tested for seating in a motor vehicle with the factory installed seating system only. Ensure that the seating system is compatible with this wheelchair. Refer to the seating system Owner's Manual for installation and removal. Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 107: Tilt

    Turn cable adjusting nut one of two ways: • If the cable is too loose, the tilt mechanism will not work. • If the cable is too tight, the gear sector will not be fully engaged with the gear rack. Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...
  • Page 108 If necessary, repeat STEPS 1 and 2 to adjust the left trigger release lever. WARNING When cables have been rerouted due to seat depth adjustment, chair width adjustment, or seating accommodation, cables MUST be readjusted. Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...
  • Page 109 Cable Adjusting Gear Rack Gear Assembly FIGURE 1 Adjusting Tilt-In-Space Trigger Release Cables Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 110: Adjusting Hublock Cables

    To Loosen - Turn the cable adjusting nut counterclockwise (FIGURE 1). While holding the cable adjusting nut in place, tighten the cable locking nut against the cable adjusting nut. Cable Adjusting DETAIL “A” FIGURE 2 Adjusting Hublock Cables Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 111: Positioning Tilt Locking Collars

    This procedure adjusts the degree of tilt that the wheelchair returns to for normal operation. If the amount of tilt MUST be limited. Refer to Adjusting Lower Tilt Locking Collar on page 113. Loosen the set screw that secure the tilt locking collar to the tilt slide. Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...
  • Page 112 Before tightening, ensure that the two tilt locking collars are at the same position on the tilt slide. Securely tighten the two set screws of the tilt locking collars. Bearing Housing Upper Tilt Locking Collar Set Screw Tilt Slide FIGURE 3 Adjusting Upper Tilt Locking Collar. Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...
  • Page 113 Securely tighten the two set screws of the tilt locking collars (Detail “A”). Lower Tilt Screw Locking Collar FIGURE 4 Adjusting Lower Tilt Locking Collar Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 114: Vent Tray

    Secure the front vent tray hanger bracket to the wheelchair frame with two mounting screws and locknuts. Tighten securely. Secure the rear vent tray hanger brackets to the wheelchair frame with four mounting screws, eight washers and four locknuts. Tighten securely. Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...
  • Page 115 Washers Washers Rear Vent Tray Hanger Bracket Height Adjustment Holes Locknuts Front Cross Tube Mounting Rear Vent Tray Mounting Screws Hanger Bracket Screws Front Vent Tray Hanger Bracket Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 116: Wheels/Forks

    Rear Wheel Axle Plate Repeat STEPS 2-4 for other rear wheel assembly. Adjust the wheel locks. Refer to Wheel Lock Adjustment on FIGURE 15.1 Installing/Removing Rear Wheels - Permanent Axle page 118. Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 117: Seat-To-Floor Height Adjustment

    Test wheelchair for maneuverability. Readjust locknuts if necessary, and repeat STEPS 1-3 until correct. Snap dust cover into the caster headtube. FIGURE 15.2 Adjusting Forks Repeat STEPS 1-5 for opposite side, if necessary. Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 118: Wheel Locks/Anti-Tippers

    Engage the wheel locks and push against the wheelchair to determine if the wheel locks engage the rear wheels enough to hold the wheelchair. If the wheel locks DO NOT hold the wheelchair, repeat STEPS 1-6 until wheel lock engagement holds the wheelchair. Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...
  • Page 119 Slide the wheel lock bracket along the wheelchair frame until the measurement between the wheel lock shoe and rear wheel is approximately 1.25 inches. If 1.25 inch measurement is not achievable, perform the following: Remove the mounting screw, washers and locknut that secure the connecting wheel link to the footlock lever (Detail “B”). Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...
  • Page 120 DETAIL “B” Foot Lock Lever Locknut Washers Mounting Screw Mounting Wheel Lock Screws Shoe Wheelchair Adjustment Frame Holes Connecting Wheel Rear Wheel Lock Link Wheel Lock Bracket FIGURE 2 Wheel Lock Adjustment - Footlock Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 121: Recliner Back Option

    Remove the ten mounting screws and washers that secure the back upholstery to the back canes. Remove existing back upholstery from back canes. Install new back upholstery onto the back canes. Install the ten mounting screws and washers that secure the back upholstery to the back canes. Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 122: Headrest Upholstery

    Install the new headrest upholstery onto the headrest extensions. Install the six mounting screws and washers that secure the headrest upholstery to the headrest extensions. Headrest Extension Headrest Upholstery Back Cane Mounting Screws and Washers Back Upholstery FIGURE 1 Replacing Back/Headrest Upholstery. Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 123: Contracture Foot Assembly

    Angle Reinstall the mounting bolt and locknut. Securely tighten. Adjustment Plate Top Mounting Bolt and Locknut Contracture Mounting Support Tube Holes FIGURE 1 Adjusting the Angle of the Contracture Assembly Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 124: Adjusting The Angle Of The Bilateral Contracture Footplate

    Retighten the adjustment screw. If necessary, repeat STEPS 1-3 on remaining contracture footplate. DETAIL “B” DETAIL “A” Contracture Footplate Adjustment Screw Adjustment Contracture Screw Footplate FIGURE 2 Adjusting the Angle of the Contracture Assembly Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...
  • Page 125 Retighten the adjustment screw. If necessary, repeat STEPS 1-3 on remaining contracture footplate DETAIL “A” DETAIL “B” - SIDE VIEW Contracture Footplate Adjustment Contracture Screw Footplate FIGURE 3 Adjusting the Front to Back Angle Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 126: Depth Adjustment

    Reinstall the four flat screws and locknuts that secure the contracture footplate to the footplate angle bracket. Tighten securely. If necessary, repeat STEPS 1-3 on remaining contracture footplate. Mounting Holes Contracture Footplate Flat Screws Locknuts Footplate Angle Bracket (Underneath) FIGURE 4 Depth Adjustment - Bilateral Contracture Footplate Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 127: Contracture Footplate Height Adjustment

    Align one of the mounting holes in the footplate bracket with one of the seven mounting holes on the contracture support. Secure the footplate bracket to the contracture support with the mounting bolt, two coved washers, washer and locknut. Securely tighten. If necessary, repeat STEPS 1-4 on remaining contracture footplate. Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...

  • Page 128: Contracture Assembly Width Adjustment

    Slide the contracture assembly left or right to the desired location. Retighten the locknut on the angle adjustment plate to secure the contracture footplate in position. Repeat STEPS 1-3 for remaining footplate if desired. Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...
  • Page 129 Retighten the locknut on the angle adjustment plate to secure the contracture platform in position. Bi-Lateral Contracture Platform Contracture Locknut Footplate Locknut Angle Adjustment Plate Angle Adjustment Plate Bi-Lateral Contracture Contracture Platform Footplate FIGURE 7 Contracture Assembly Width Adjustment Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...
  • Page 130 Remove the four mounting screws and washers that secure the existing heel loop to the contracture footplate. Washers Reverse STEPS 1-2 to install the new heel loop. Heel Loop FIGURE 8 Replacing the Contracture Footplate Heel Loop Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...

  • Page 131: Disclosure

    STOWAGE WIDTH: 31.3 inch 25 inch STOWAGE HEIGHT: 34.3 inch 26 inch RISING (WHEELCHAIR WITH ANTI-TIPPERS): 4.3 inch 3.8 inch TOTAL MASS: 108 lbs 94.8 lbs MASS OF HEAVIEST PART: 92.6 lbs 69.5 lbs Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...
  • Page 132 BACK SUPPORT ANGLE: 10° 74° 10° 74° BACK SUPPORT HEIGHT: 21.1 inch 22 inch FOOT SUPPORT TO SEAT: 11.2 inch 16.5 inch 11.2 inch 16.5 inch LEG TO SEAT SURFACE ANGLE: 118° 118° Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...
  • Page 133 15.4 inch 15.4 inch HORIZONTAL LOCATION OF AXLE: 0 inch 0 inch Section 8 requirements and test methods for static, impact and fatigue strengths: PASS  Section 16 requirements for resistance to ignition: PASS Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...
  • Page 134 19 ANNEX A - RESNA TEST DATA Notes Invacare® Solara®3G/Spree 3G Wheelchair Part No 1154295...
  • Page 135 19 ANNEX A - RESNA TEST DATA Notes Part No 1154295 Invacare® Solara®3G/Spree 3G Wheelchair...
  • Page 136 Invacare Corporation Canada One Invacare Way 570 Matheson Blvd E Unit 8 Elyria, Ohio USA Mississauga Ontario 44036-2125 L4Z 4G4 Canada 800-333-6900 800-668-5324 Part No 1154295 Rev E-01 - 1/28/16 www.invacare.com Making Life’s Experiences Possible™...
