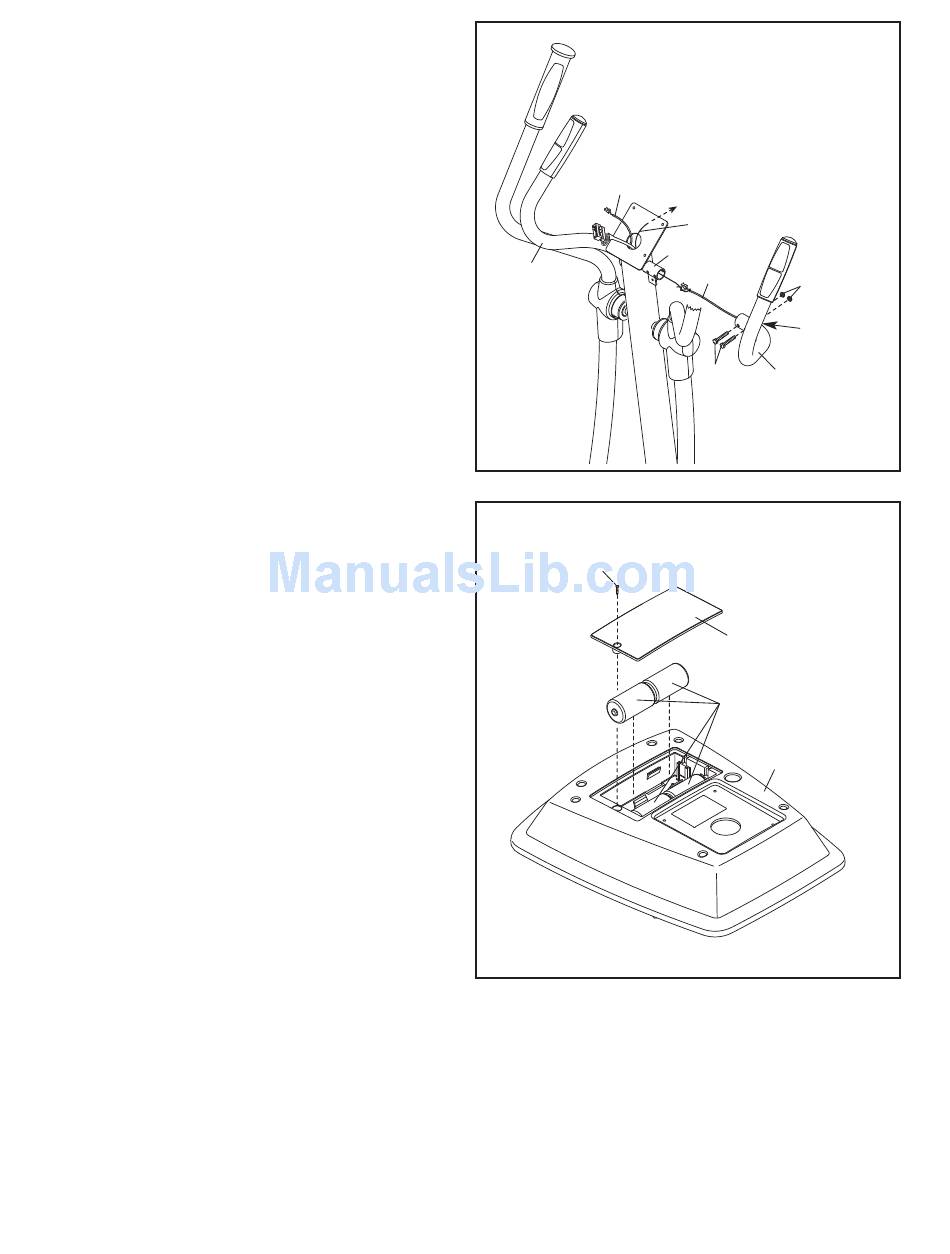

Pro-Form ZE5 User Manual page 11

10. Identify the Right Handlebar (59), which is
marked with a "Right" sticker, and orient it as
shown.
Have a second person hold the Right
Handlebar (59) near the right side of the Upright
(2). Locate the wire tie in the Upright. Tie the
lower end of the wire tie to the right Pulse Wire
(28). Next, pull the upper end of the wire tie
upward out of the top of the Upright. Then, untie
and discard the wire tie.
Tip: Avoid pinching the Pulse Wire (28).
Attach the Right Handlebar (59) to the Upright
(2) with two M6 x 38mm Bolts (108) and two M6
Locknuts (74). Make sure that the Locknuts
are in the hexagonal holes.
Repeat this step to attach the Left Handlebar
(39).
11. The Console (4) can use four D batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the Console has been
exposed to cold temperatures, allow it to
warm to room temperature before inserting
batteries. Otherwise, you may damage the
console displays or other electronic compo-
nents. Remove the screw, remove the battery
cover, insert the batteries into the battery com-
partments, and reattach the battery cover. Make
sure to orient the batteries as shown by the
diagrams inside the battery compartments.
To purchase an optional AC adapter, contact
the store where you purchased this product
or call the telephone number on the cover of
this manual. To avoid damaging the console,
use only a manufacturer-supplied AC
adapter. Plug one end of the AC adapter into
the jack on the console; plug the other end into
an outlet installed in accordance with all local
codes and ordinances.
10
28
39
11
Screw
11
Avoid pinching the
Pulse Wires (28)
Wire Tie
2
28
74
Hexagonal
Holes
108
59
Battery
Cover
Batteries
4
