8. Identify the Left and Right Front Shields (32,
37), which are marked with "Left" and "Right"
stickers.
See step 3. Tighten the five M10 x 20mm Patch
Screws (79). Tip: Tighten the two rear Patch
Screws first and then tighten the other three
Patch Screws.
Tip: Avoid pinching the wires. Press the Left
and Right Front Shields (32, 37) together
around the Upright (2). Make sure that Left
and Right Front Shields fit securely.
Attach the Left and Right Front Shields (32, 37)
with four M4 x 19mm Screws (25).

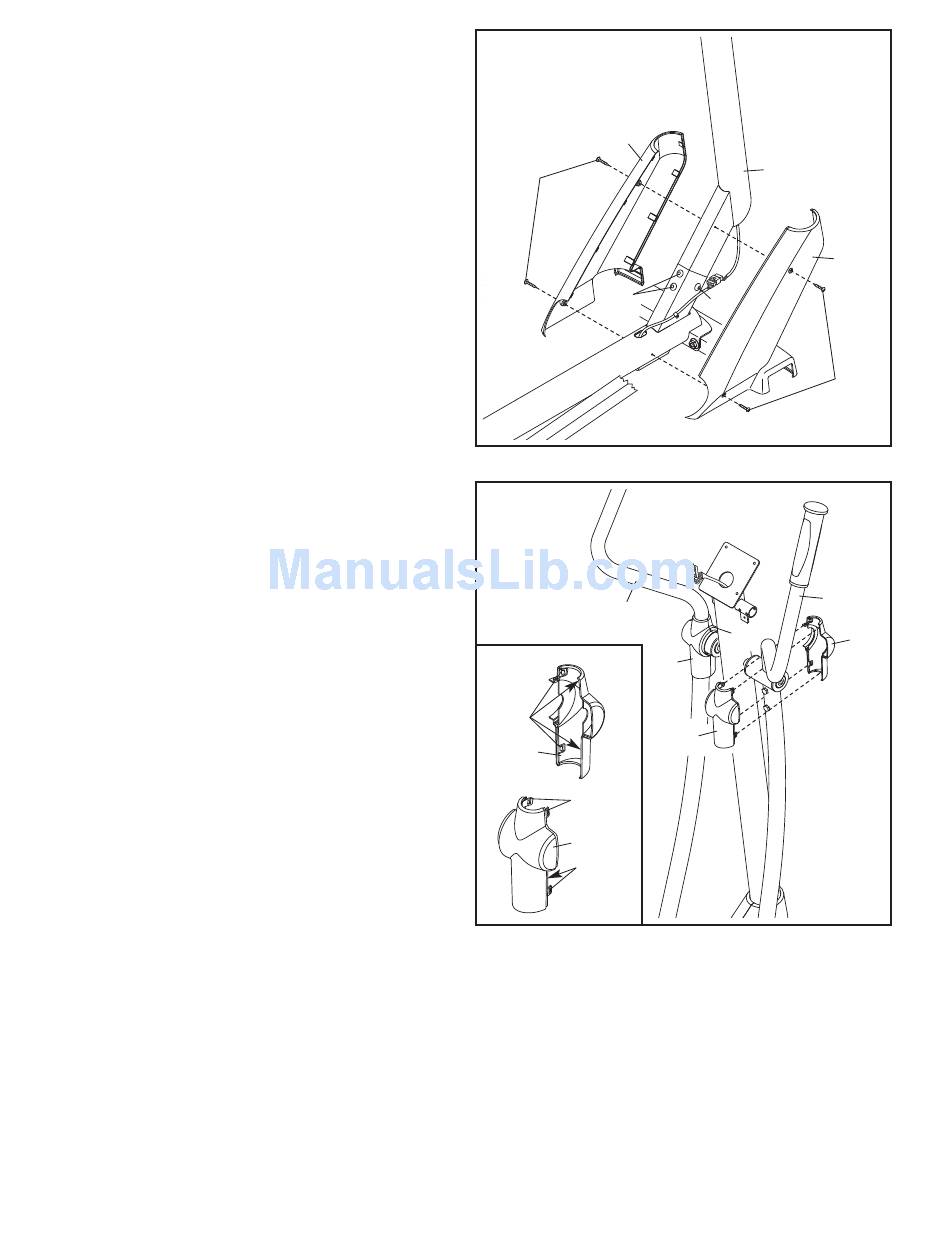

9. See the inset drawing. Identify a Pivot Cover A
(19), which has hooks, and a Pivot Cover B
(22), which has tabs.
Press a Pivot Cover A (19) and a Pivot Cover B
(22) together around the Right Upper Body Arm
(9).
Repeat this step for the other side of the
elliptical exerciser.
Tip: Make sure that the Pivot Covers (19, 22)
are positioned as shown.
