Parts Identification

Remote Control

REMOTE CONTROL RM-SRXDV3U
1
DBS VCR
TV TAPE
2
DBS
TV/VIDEO REW/
3
REPEAT SLEEP
4
5
SOUND EFFECT
6
1
ANALOG
TEST
/DIGITAL
7
4
INPUT
AUDIO SURR ON/OFF
8
7
SUBTITLE SURR MODE
9
10/0
p
DIMMER
ANGLE
q
MUTING
ZOOM
w
e
DIGEST TOP MENU
r
CHOICE
t
ON SCREEN
y
HOME CINEMA
DVD/CD CONTROL CENTER
3
STANDBY/ON
TV AUDIO
CDR FM/AM
VCR DVD
( 9
TUNING /FF
u
FM MODE STROBE
– TV/DBS CH +
CENTER
2 3
REAR·L
5 6
i
REAR·R
8 9
– +
SUBWOOFER
+10 VFP
100+ TV RETURN
PROGRESSIVE o
+ +
;
TV VOL VOLUME
– –
MENU
a
ENTER
RETURN

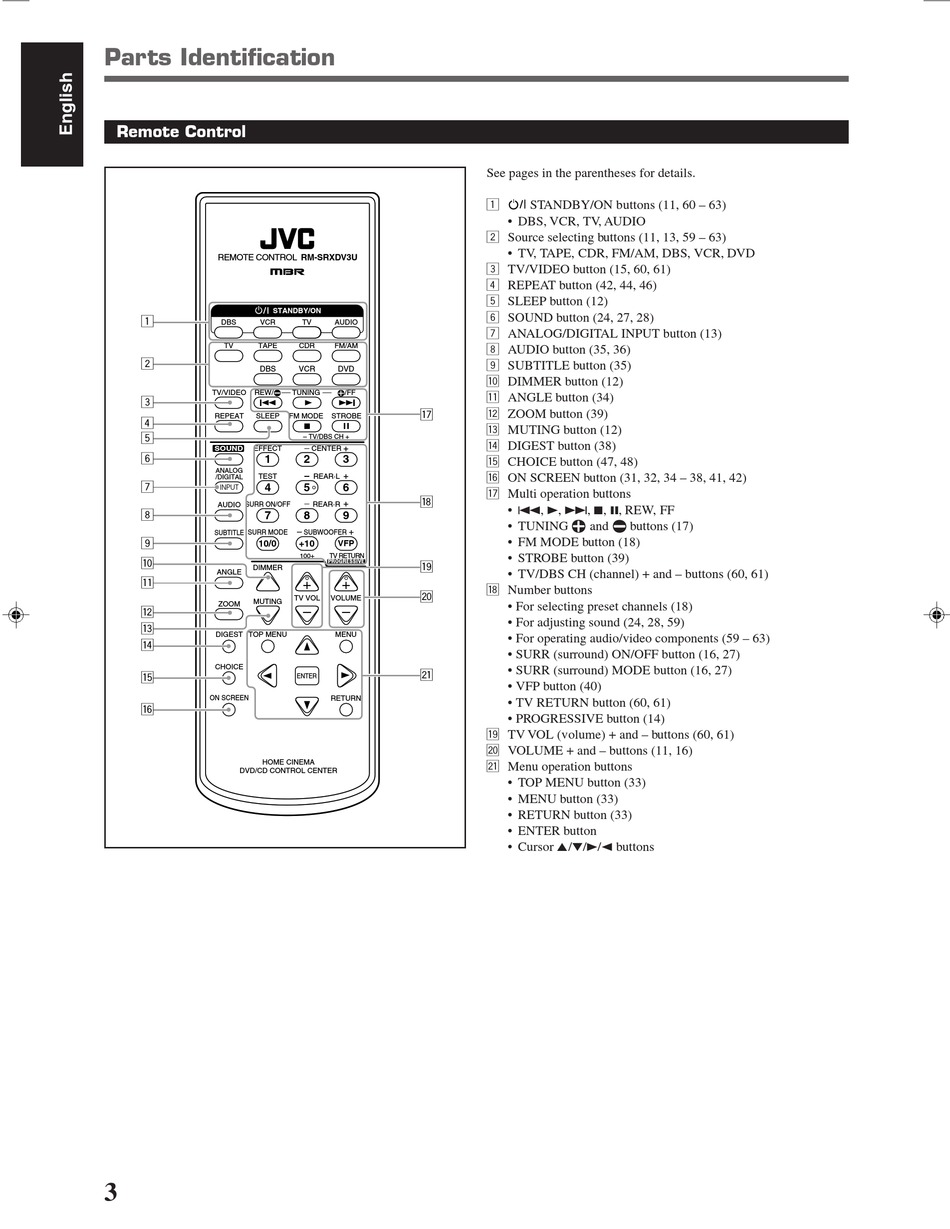

See pages in the parentheses for details.
1
STANDBY/ON buttons (11, 60 – 63)
• DBS, VCR, TV, AUDIO
2 Source selecting buttons (11, 13, 59 – 63)
• TV, TAPE, CDR, FM/AM, DBS, VCR, DVD
3 TV/VIDEO button (15, 60, 61)
4 REPEAT button (42, 44, 46)
5 SLEEP button (12)
6 SOUND button (24, 27, 28)
7 ANALOG/DIGITAL INPUT button (13)
8 AUDIO button (35, 36)
9 SUBTITLE button (35)
p DIMMER button (12)
q ANGLE button (34)
w ZOOM button (39)
e MUTING button (12)
r DIGEST button (38)
t CHOICE button (47, 48)
y ON SCREEN button (31, 32, 34 – 38, 41, 42)
u Multi operation buttons
• 4, 3, ¢, 7, 8, REW, FF
• TUNING 9 and ( buttons (17)
• FM MODE button (18)
• STROBE button (39)
• TV/DBS CH (channel) + and – buttons (60, 61)
i Number buttons
• For selecting preset channels (18)
• For adjusting sound (24, 28, 59)
• For operating audio/video components (59 – 63)
• SURR (surround) ON/OFF button (16, 27)
• SURR (surround) MODE button (16, 27)
• VFP button (40)
• TV RETURN button (60, 61)
• PROGRESSIVE button (14)
o TV VOL (volume) + and – buttons (60, 61)
; VOLUME + and – buttons (11, 16)
a Menu operation buttons
• TOP MENU button (33)
• MENU button (33)
• RETURN button (33)
• ENTER button
• Cursor 5/∞/3/2 buttons
