Basic Settings
7

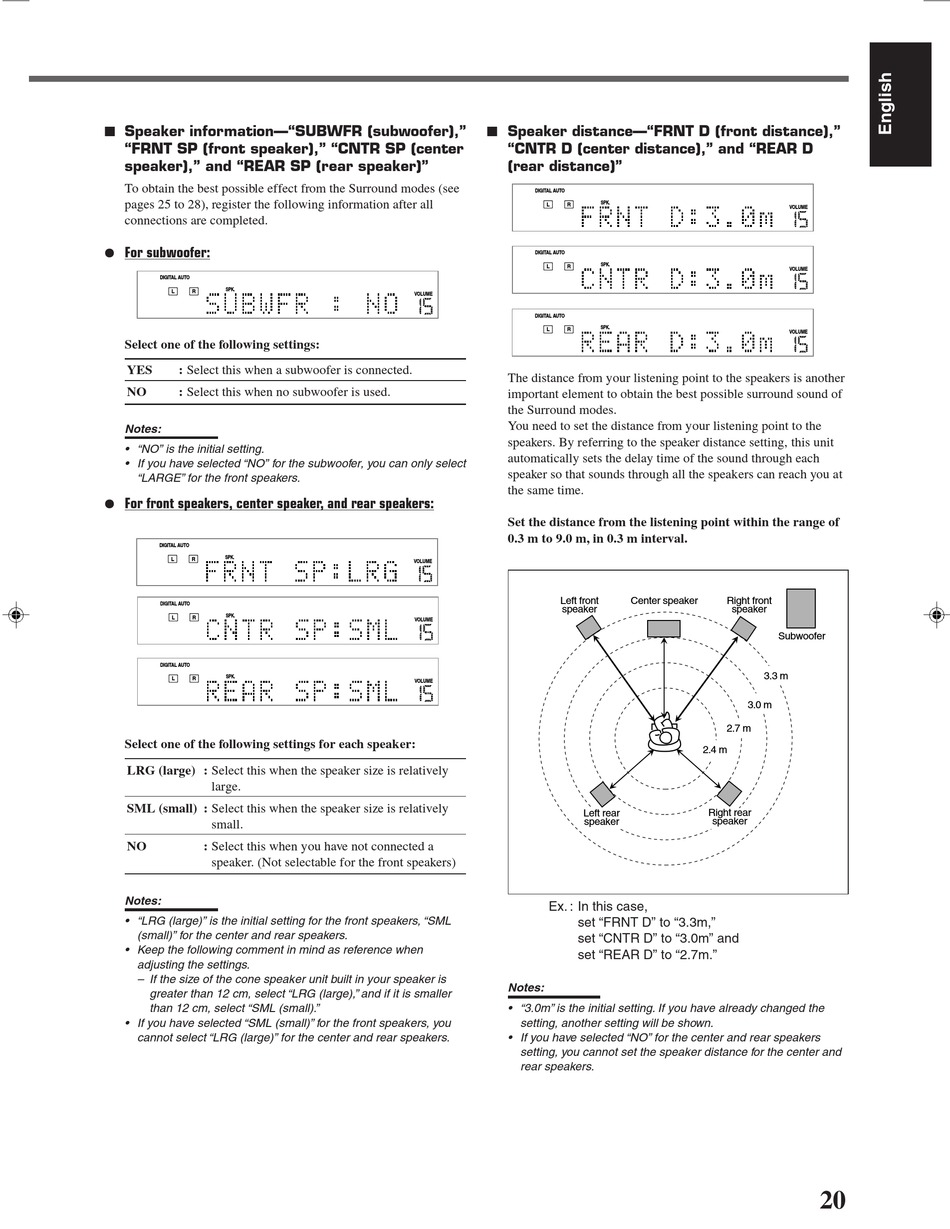

Speaker information—"SUBWFR (subwoofer),"
"FRNT SP (front speaker)," "CNTR SP (center
speaker)," and "REAR SP (rear speaker)"
To obtain the best possible effect from the Surround modes (see
pages 25 to 28), register the following information after all
connections are completed.
¶ For subwoofer:
DIGITAL AUTO
L R
Select one of the following settings:
YES : Select this when a subwoofer is connected.
NO : Select this when no subwoofer is used.
Notes:
• "NO" is the initial setting.
• If you have selected "NO" for the subwoofer, you can only select
"LARGE" for the front speakers.
¶ For front speakers, center speaker, and rear speakers:
DIGITAL AUTO
L R
DIGITAL AUTO
L R
DIGITAL AUTO
L R
Select one of the following settings for each speaker:
LRG (large) : Select this when the speaker size is relatively
SML (small) : Select this when the speaker size is relatively
NO
Notes:
• "LRG (large)" is the initial setting for the front speakers, "SML
(small)" for the center and rear speakers.
• Keep the following comment in mind as reference when
adjusting the settings.
– If the size of the cone speaker unit built in your speaker is
greater than 12 cm, select "LRG (large)," and if it is smaller
than 12 cm, select "SML (small)."
• If you have selected "SML (small)" for the front speakers, you
cannot select "LRG (large)" for the center and rear speakers.
SPK.
SPK.
SPK.
SPK.
large.
small.
: Select this when you have not connected a
speaker. (Not selectable for the front speakers)
7
Speaker distance—"FRNT D (front distance),"
"CNTR D (center distance)," and "REAR D
(rear distance)"
DIGITAL AUTO
L R
DIGITAL AUTO
L R
VOLUME
DIGITAL AUTO
L R
The distance from your listening point to the speakers is another
important element to obtain the best possible surround sound of
the Surround modes.
You need to set the distance from your listening point to the
speakers. By referring to the speaker distance setting, this unit
automatically sets the delay time of the sound through each
speaker so that sounds through all the speakers can reach you at
the same time.
Set the distance from the listening point within the range of
0.3 m to 9.0 m, in 0.3 m interval.
VOLUME
Left front
speaker
VOLUME
VOLUME
Ex. : In this case,
set "FRNT D" to "3.3m,"
set "CNTR D" to "3.0m" and
set "REAR D" to "2.7m."
Notes:
• "3.0m" is the initial setting. If you have already changed the
setting, another setting will be shown.
• If you have selected "NO" for the center and rear speakers
setting, you cannot set the speaker distance for the center and
rear speakers.
SPK.
SPK.
SPK.
Center speaker Right front
speaker
3.0 m
2.7 m
2.4 m
Right rear
Left rear
speaker
speaker
VOLUME
VOLUME
VOLUME
Subwoofer
3.3 m
20
