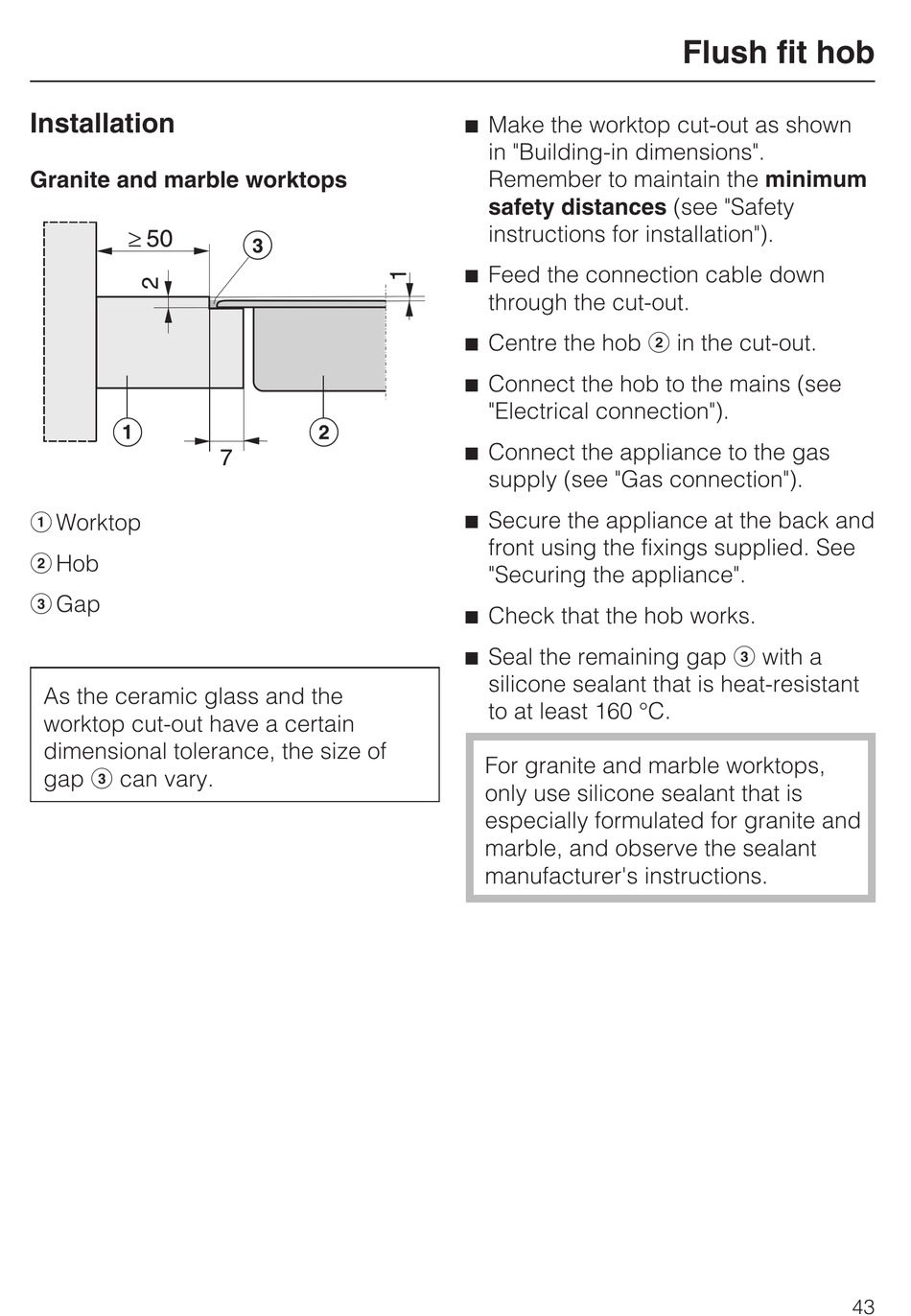

Installation
Granite and marble worktops
Worktop
Hob
Gap
As the ceramic glass and the
worktop cut-out have a certain
dimensional tolerance, the size of
gap
can vary.
^ Make the worktop cut-out as shown
in "Building-in dimensions".
Remember to maintain the minimum
safety distances (see "Safety
instructions for installation").
^ Feed the connection cable down
through the cut-out.
^ Centre the hob
^ Connect the hob to the mains (see
"Electrical connection").
^ Connect the appliance to the gas
supply (see "Gas connection").
^ Secure the appliance at the back and
front using the fixings supplied. See
"Securing the appliance".
^ Check that the hob works.
^ Seal the remaining gap
silicone sealant that is heat-resistant
to at least 160 °C.
For granite and marble worktops,
only use silicone sealant that is
especially formulated for granite and
marble, and observe the sealant
manufacturer's instructions.
Flush fit hob
in the cut-out.
with a
43
