7002-xxx
Callout Operator panel item
11 USB Direct interface
12 Home
(only on model X642e)
13 Help Tips
(only on model X642e)
14 Menu
(only on model X642e)
15 Contrast icon
(only on model X642e)

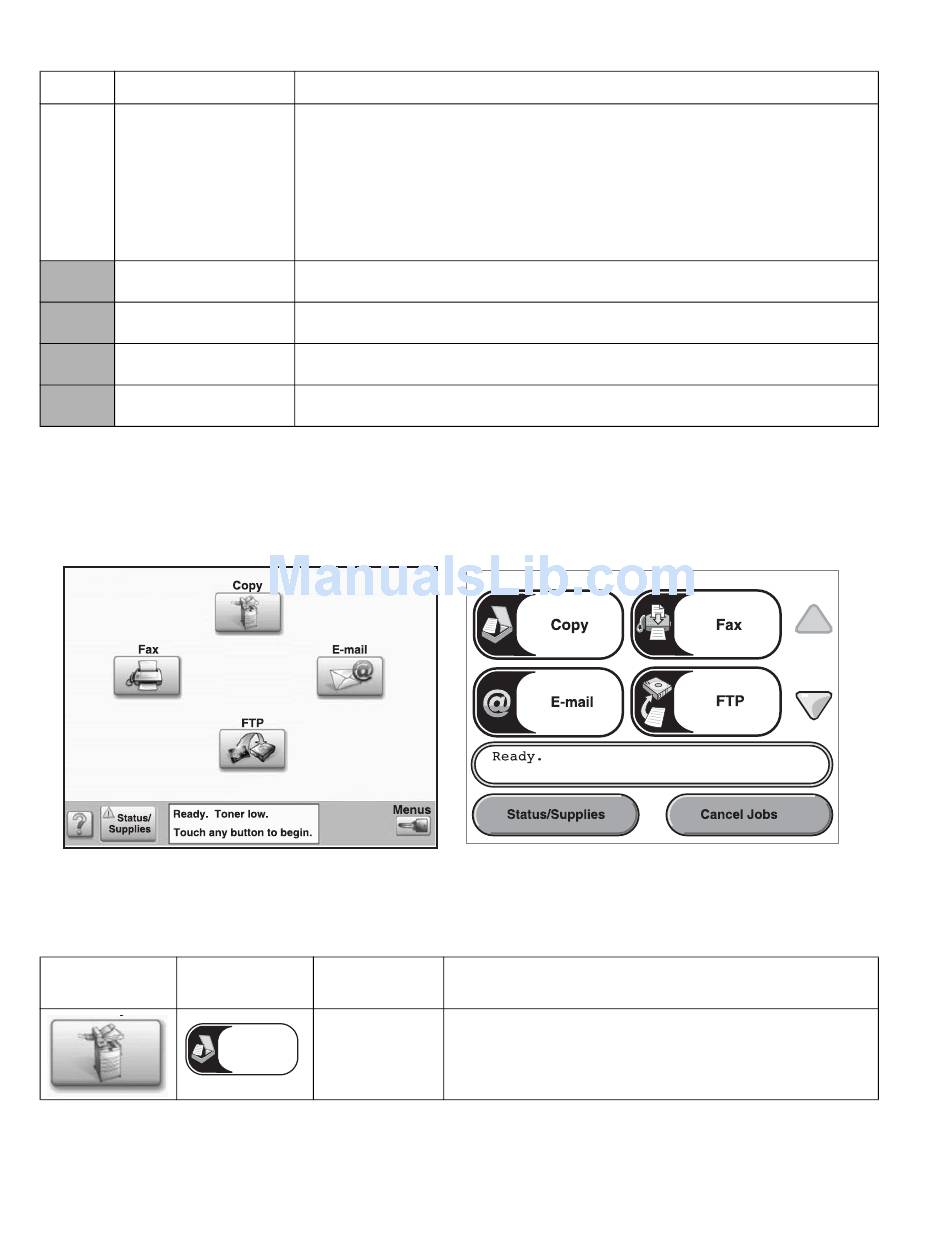

Home screen and Home screen buttons

After the MFP is turned on and a short warm-up period occurs, the LCD shows the following basic screen which
is referred to as the Home screen. Use the Home screen buttons to initiate an action such as copy, fax, or scan,
to open the menu screen, or to respond to messages.

Buttons and touchscreen icon buttons

Buttons and touchscreen icon buttons (refer to Menus & Messages for comprehensive list)
Models X644e,
Model X642e
X646e
2-4
Service Manual
Function
The host Universal Serial Bus (USB) direct interface on the operator panel is used
to plug in a USB flash memory device and print any Portable Document Format
(PDF) [.pdf file], Joint Photographic Experts Group (JPEG) [.jpeg or .jpg file],
Tagged Image File Format (TIFF) [.tiff or .tif file], Graphics Interchange Format
(GIF) [.gif file], Basic Multilingual Plane (BMP) [.bmp file], Portable Network
Graphics (PNG) [.png file], PiCture eXchange (PCX) [.pcx file], and PC Paintbrush
File Format [.dcx file] files.
The USB direct interface can also be used to scan a document to a USB flash
memory device using the PDF, TIFF, or JPEG formats.
Returns the LCD to the home screen.
Accesses the context-sensitive Help feature.
Accesses the menus. These menus are only available when the MFP is in the
Ready state.
Identifies the location of the contrast wheel. Look on the left side of the MFP near
this icon to locate the contrast wheel which adjusts the contrast on the LCD.
Button name
Copy
Copy
Function
Touch to access the Copy menus.
If the home screen is shown, press a number to access the
Copy menus, too.
