Chapter 10 Maintenance

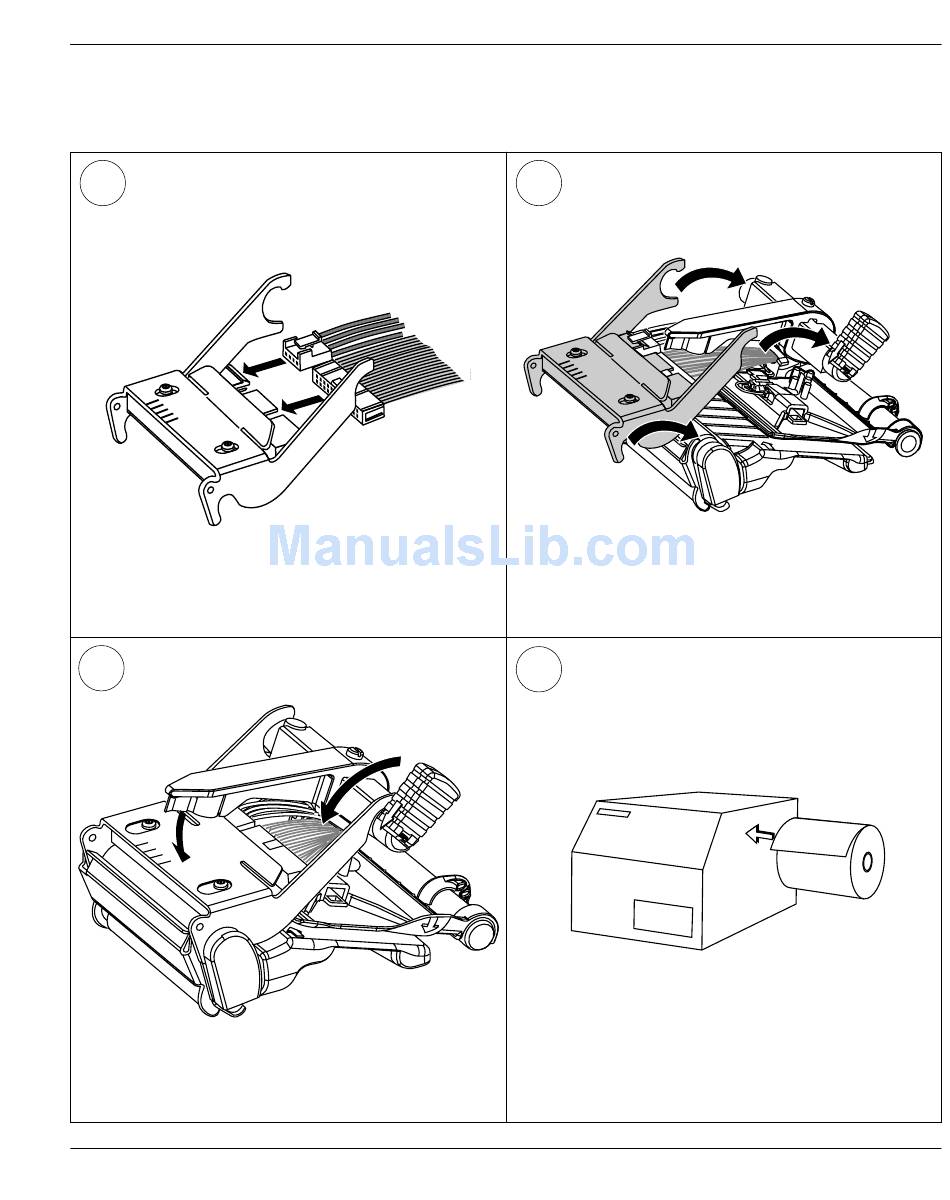

Printhead Replacement, cont.

Put back the printhead in reverse order and

Connect the two cables to the replacement

check that the printhead cables run freely.

printhead.

Load a new supply of media (and ribbon), as

Turn the printhead lift lever counterclockwise

described earlier in this manual.

so the magnet engages the printhead bracket.

Intermec EasyCoder F2 – Installation & Operation IPL Version, Ed. 1
