Chapter 4

Media Load

Peel-Off, cont.

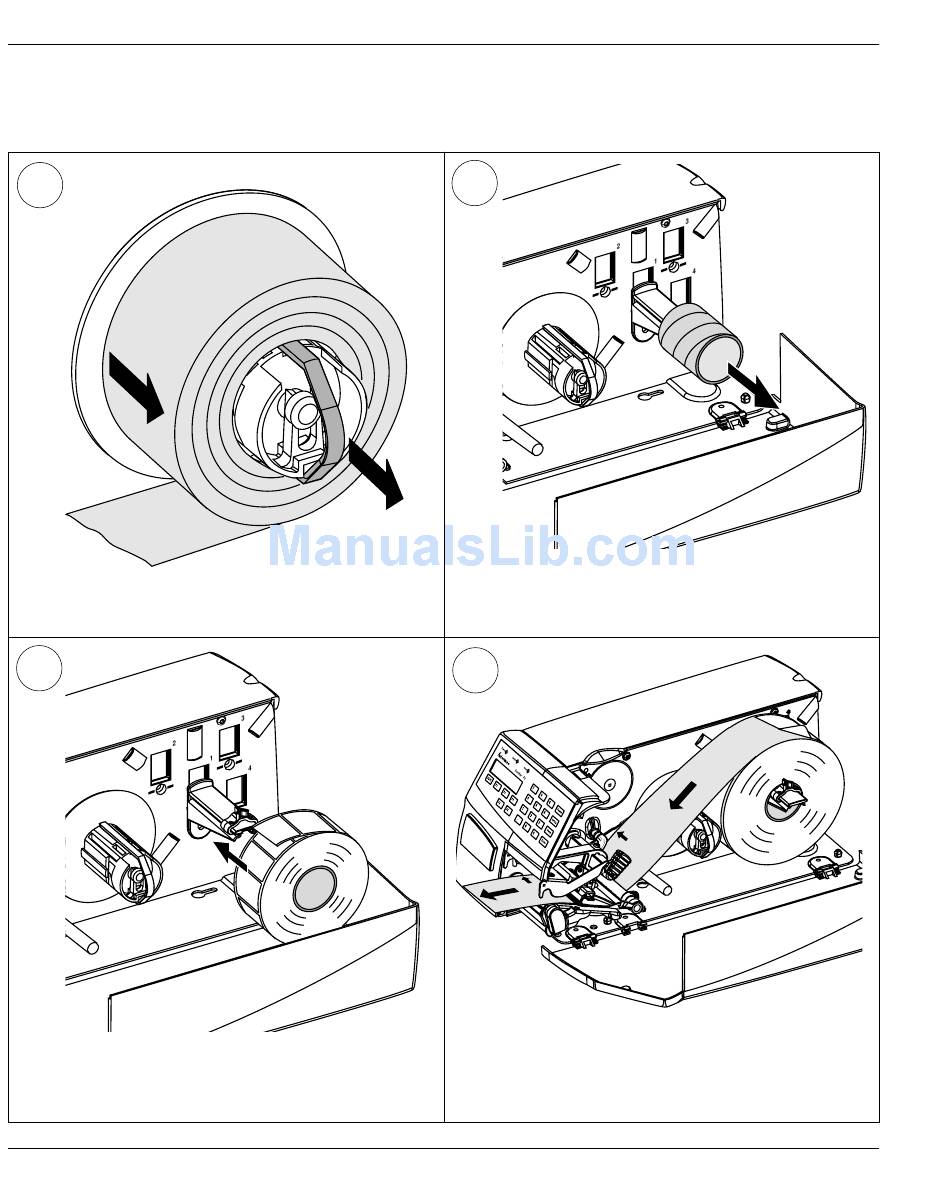

Pull out the handle to collapse the takeup hub,

then remove any liner.

Fit a new roll of labels on the supply post and

adjust the edge guide so the label roll becomes

ﬂ ush with the center section.

Remove any empty core from the media supply

Remove labels from the ﬁ rst 50 cm (20 inches)

of the liner. Route the liner through the print

mechanism and push it inwards.

Intermec EasyCoder F2 – Installation & Operation IPL Version, Ed. 1

roll post.
