Chapter 6 Setting Up the Printer

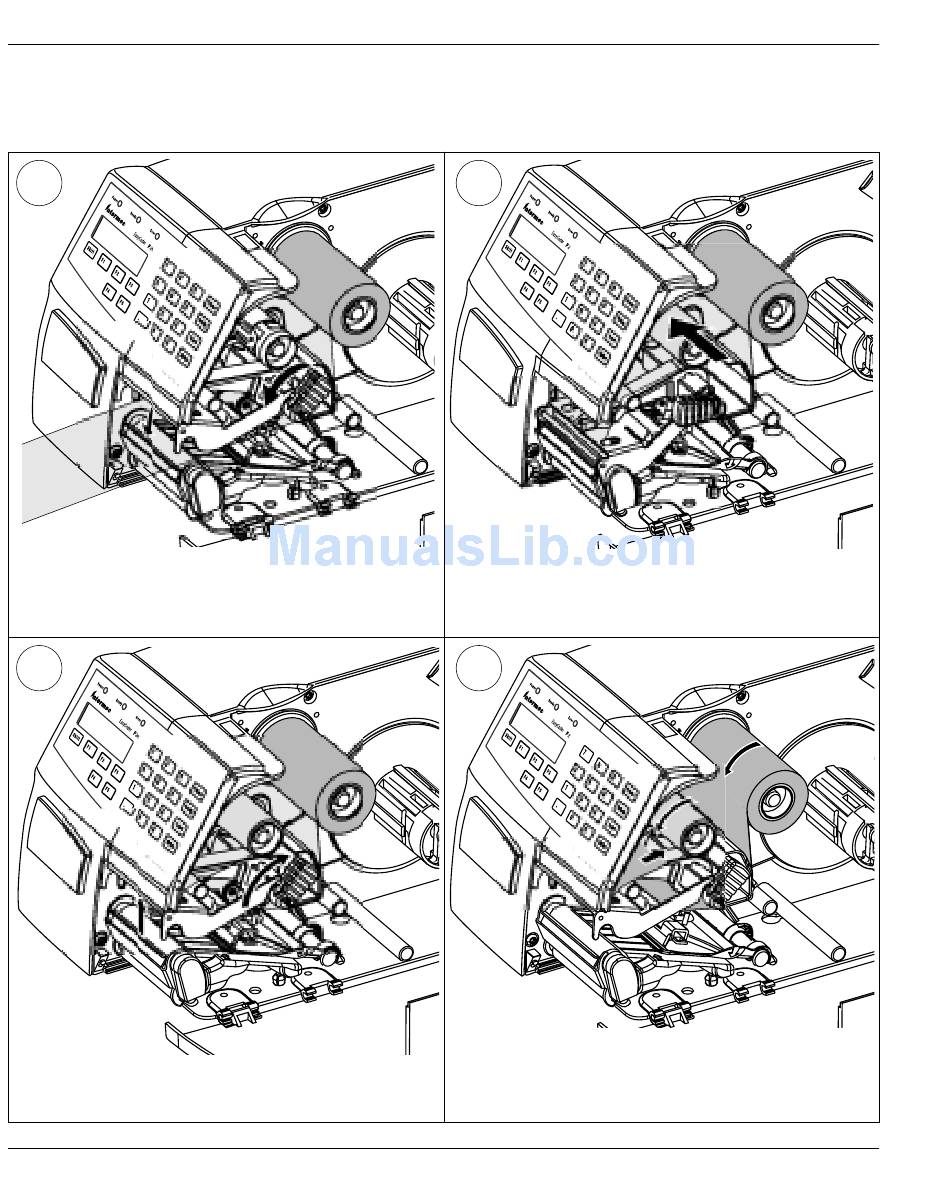

Ribbon Load, cont.

Without releasing the ribbon, turn the print-

head lift lever counterclockwise to engage the

printhead and lock the ribbon.

Turn the printhead lift lever clockwise to raise

the printhead and release the ribbon.

Slide the empty cardboard core onto the ribbon

rewind hub so the ribbon is wound up when the

Manually advance the ribbon until all of the

transparent leader has passed the printhead

Intermec EasyCoder F2 – Installation & Operation IPL Version, Ed. 1

hub rotates counterclockwise.

and the ribbon becomes tight.
