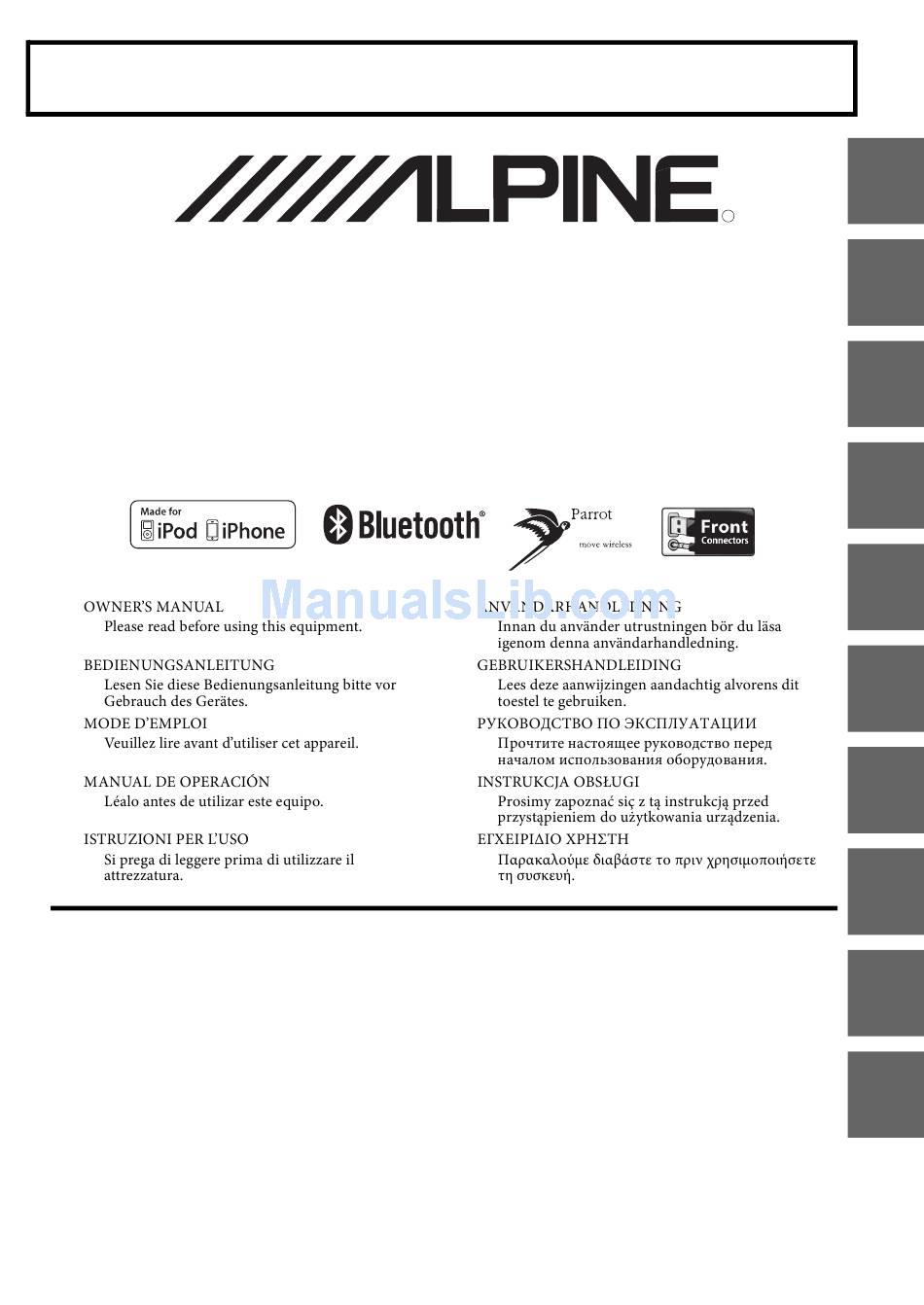

FOR CAR USE ONLY/NUR FÜR AUTOMOBIL GEBRAUCH/POUR APPLICATION AUTOMOBILE UNIQUEMENT/PARA USO EN
AUTOMÓVILES/SOLO PER L'UTILIZZO IN AUTOMOBILE/ENDAST FÖR BILBRUK/ALLEEN VOOR GEBRUIK IN DE AUTO/
ТОЛЬКО ДЛЯ ИСПОЛЬЗОВАНИЯ В АВТОМОБИЛЯХ/DO UŻYCIA TYLKO W SAMOCHODZIE/ΓΙΑ ΧΡΗΣΗ ΜΟΝΟ ΣΕ ΑΥΤΟΚΙΝΗΤΟ
MP3/WMA/AAC CD RECEIVER WITH BLUETOOTH
MP3 CD RECEIVER WITH BLUETOOTH
•
•
•
•
•
ALPINE ELECTRONICS MARKETING, INC.
1-1-8 Nishi Gotanda,
Shinagawa-ku,
Tokyo 141-0031, Japan
Phone 03-5496-8231
ALPINE ELECTRONICS OF AMERICA, INC.
19145 Gramercy Place, Torrance,
California 90501, U.S.A.
Phone 1-800-ALPINE-1 (1-800-257-4631)
ALPINE ELECTRONICS OF CANADA, INC.
777 Supertest Road, Toronto,
Ontario M3J 2M9, Canada
Phone 1-800-ALPINE-1 (1-800-257-4631)
CDE-126BT
CDE-125BT
•
•
•
•
•
ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.
161-165 Princes Highway, Hallam
Victoria 3803, Australia
Phone 03-8787-1200
ALPINE ELECTRONICS GmbH
Wilhelm-Wagenfeld-Str. 1-3, 80807 München, Germany
Phone 089-32 42 640
ALPINE ELECTRONICS OF U.K. LTD.
Alpine House
Fletchamstead Highway, Coventry CV4 9TW, U.K.
Phone 0870-33 33 763
ALPINE ELECTRONICS FRANCE S.A.R.L.
(RCS PONTOISE B 338 101 280)
98, Rue de la Belle Etoile, Z.I. Paris Nord Il,
B.P. 50016, 95945 Roissy Charles de Gaulle
Cedex, France
Phone 01-48638989
R R
®
®
ALPINE ITALIA S.p.A.
Viale C. Colombo 8, 20090 Trezzano
Sul Naviglio (MI), Italy
Phone 02-484781
ALPINE ELECTRONICS DE ESPAÑA, S.A.
Portal de Gamarra 36, Pabellón, 32
01013 Vitoria (Alava)-APDO 133, Spain
Phone 945-283588
ALPINE ELECTRONICS (BENELUX) GmbH
Leuvensesteenweg 510-B6,
1930 Zaventem, Belgium
Phone 02-725-13 15
Designed by ALPINE Japan
68-16909Z37-A
EN
DE
FR
ES
IT
SE
NL
RU
PL
GR

Advertisement

Table of Contents
loading

Related Manuals for Alpine CDE-126BT

Summary of Contents for Alpine CDE-126BT

  • Page 1 • • • • • • ALPINE ELECTRONICS MARKETING, INC. ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD. ALPINE ITALIA S.p.A. 1-1-8 Nishi Gotanda, 161-165 Princes Highway, Hallam Viale C. Colombo 8, 20090 Trezzano Shinagawa-ku, Victoria 3803, Australia Sul Naviglio (MI), Italy...

  • Page 2: Table Of Contents

    ON/OFF ................ 10 Visual Customizing..........18 Receiving RDS Regional (Local) Stations ..10 Changing Lighting Colour PI SEEK Setting ............11 (CDE-126BT only)............18 Scroll Type Setting .............18 Receiving Traffic Information....... 11 Scroll Setting (TEXT SCR) .........18 Receiving Traffic Information While Playing Demonstration ............18...
  • Page 3 Contents ENGLISH BT Hands-Free Calling iPod/iPhone (optional) Setup Before Using..........20 Connecting an iPod/iPhone........25 About BLUETOOTH..........20 Playback ...............26 Before Using Hands-Free Function....20 Searching for a desired Song .......26 How to connect to a BLUETOOTH Quick Search...............26 compatible device (Pairing) ......20 Direct Search Function ...........26 BLUETOOTH SETUP..........

  • Page 4: Operating Instructions

    Operating Instructions HALT USE IMMEDIATELY IF A PROBLEM APPEARS. WARNING WARNING PRECAUTIONS This symbol means important instructions. Failure to heed them can result in serious injury or death. Product Cleaning DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.
  • Page 5 Do not leave the disc in the car or the unit for a long time. Never expose the disc to direct sunlight. To customers using CD-R/CD-RW Correct Handling About media that can be played CORRECT CD-TEXT CDE-126BT      CDE-125BT ...
  • Page 6 An independent On Handling USB Memory license for such use is required. For details, please visit http:// www.mp3licensing.com” CAUTION Alpine accepts no responsibility for lost data, etc., even if data, etc., is lost while using this product.

  • Page 7: Getting Started

    Press  (Release) at the lower left side until the front Getting Started panel pops out. Grasp the left side of the front panel and pull it out. SOURCE/ Rotary encoder Notes • The front panel may become hot in normal usage (especially the connector terminals on the back of the front panel).

  • Page 8: Adjusting Volume

    DX SEEK (Distance mode)  SEEK (Local mode)  OFF (Manual • The function is inoperable when the ILLUMINATI is set to other than mode)  DX SEEK TYPE1 for CDE-126BT, refer to “Changing Lighting Colour (CDE-126BT only)” on page 18. Note •...

  • Page 9: Presetting Stations Automatically

    Presetting Stations Automatically Press BANDTA repeatedly until the desired radio band is displayed. Rotary encoder BAND/TA FUNC./SETUP Press and hold TUNEA.ME for at least 2 seconds. The frequency on the display continues to change while the automatic memory is in progress. The tuner will automatically seek and store 6 strong stations in the selected band.

  • Page 10: Pi Seek Setting

    Press and hold FUNC.SETUP for at least 2 seconds to Receiving Traffic Information While Playing return to normal mode. CD or Radio Notes • Press SOUND to return to the previous mode. • If no operation is performed for 60 seconds, the unit will return to normal mode automatically.

  • Page 11: Cd/Mp3/Wma/Aac

    Or, the search mode is cancelled if no operation is performed for • Three-inch (8 cm) CDs can not be used. 10 seconds. • When CD Text Search is made during M.I.X. play, the M.I.X. play CDE-125BT (compatible with MP3)/CDE-126BT (compatible with mode will be cancelled. MP3/WMA/AAC):...

  • Page 12: Folder/File Name Search (Concerning Mp3/Wma/Aac)

    Note Folder/File Name Search (concerning MP3/ • Press and hold ESC for at least 2 seconds in the search mode to cancel. Or, the search mode is cancelled if no operation is performed for WMA/AAC) 10 seconds. About MP3/WMA/AAC Folder Name Search mode CAUTION During MP3/WMA/AAC playback, press ESC to Except for private use, duplicating audio data (including MP3/...

  • Page 13: Terminology

    ID3 tags/WMA tags Terminology This device supports ID3 tag v1 and v2, and WMA tag. If tag data is in an MP3/WMA/AAC file, this device can display the title (track title), artist name, and album name ID3 tag/WMA tag data. Bit rate This device can only display single-byte alphanumeric characters (up to This is the “sound”...

  • Page 14: Sound Setting

    Press and hold ESC for at least 2 seconds to return to Sound Setting normal mode. Notes • If no operation is performed for 15 seconds, the unit will return to normal mode automatically. BAND/TA • The function is inoperable when DEFEAT is set to ON. Rotary encoder (AUDIO/LOUD) SOURCE/ ...

  • Page 15: Setting The Treble Level

    Setting the Treble Level Other Functions Turn the Rotary encoder to select the desired treble level (-7~+7) You can emphasise the treble level. SOURCE/ The adjustment can also be made by pressing Rotary encoder. Refer to “Adjusting Subwoofer Level/Bass Level/Treble Level/ Balance (Between Left and Right)/Fader (Between Front and Rear)/Defeat”...

  • Page 16: About "Text

    Displayed only when AUX+ SETUP is ON. Optional adapter cable (RCA pin Displayed only when SUBWOOFER is ON. plugs [red, white] 3.5ø miniplugs) CDE-126BT only. or (3.5ø miniplugs). Refer to “Receiving RDS Regional (Local) Stations” on page 10. Refer to “PI SEEK Setting” on page 11.

  • Page 17: Bluetooth Setting

    BLUETOOTH Setting Visual Customizing Setting the BLUETOOTH Connection (BT IN) Changing Lighting Colour (CDE-126BT only) SOURCE BANDTA    Setting item: BT IN  Setting item: ILLUMINATI Setting contents: Setting contents: BT ADAPTER (Initial setting) / BT OFF ILUM TYPE1 (Initial setting) / TYPE2 / TYPE3 / TYPE4...

  • Page 18: Setting The Language (Cyrillic)

    SPEAKER RIGHT REAR Rear right SPEAKER Rear LEFT REAR left SPEAKER LEFT FRONT Front left POW OFF : CDE-126BT: MP3/WMA/AAC Front left Playing MP3 Data (PLAY MODE) Amplifier Front right Rear left Amplifier Rear right CDE-125BT:  Setting item: PLAY MODE...

  • Page 19: Setting The Aux+ Setup Mode

    • Proper function of this unit with all BLUETOOTH compatible devices is not guaranteed. For handling of the BT compatible device, consult your ALPINE dealer or ALPINE website. • Depending on the surroundings, BLUETOOTH wireless connection may be unstable.

  • Page 20: Bluetooth Setup

    The PIN code (“0000”) is displayed on the connected unit. Setting the BT Menu language Note • The PIN code is fixed as “0000”.  Setting item: BT MENU Input the PIN code (“0000”) in a BLUETOOTH compatible Setting contents: device.

  • Page 21: Deleting A Bluetooth Device From The List

    Owner’s Manual are based upon the latest available information and are believed to be accurate at the time of printing. Alpine reserves the right to change or modify any information or  Setting item: SPEAKER SL specifications without notice or obligation.

  • Page 22: Redial Function

    Press ENT. Redial Function The selected telephone will be called. If one name has several numbers registered in the telephone book, press ENT after selecting the name , then turn the Rotary encoder to choose the desired number and press After finishing a call “----------”...

  • Page 23: Voice Dial Operation

    • If a called person that you say is not found, “NO CALL” is displayed for 2 seconds. • If you place a call via voice dial, you cannot display a phone number or name. Adjusting the volume when receiving a Call CDE-126BT    CDE-125BT ...

  • Page 24: Remove Usb Memory

    Connection the USB Memory directly to the USB iPod/iPhone (optional) Connection Terminal, or via the USB cable. USB Connection Terminal This unit USB Memory (sold separately) Rotary encoder 5 2 4 SOURCE/ 1/AF USB Memory Cable (sold (sold separately) separately) /ESC Preset buttons ...

  • Page 25: Playback

    Notes Playback • After pressing and holding ENT for at least 2 seconds while in each hierarchy (except SONG and AUDIOBOOK hierarchy), all songs of the selected hierarchy are played back. • After selecting [ALL] in the search mode with“ ”, press and hold Press SOURCE...

  • Page 26: Select Playlist/Artist/Album/Genre/Composer

    Example 1: Shuffle ALL: Shuffle ALL plays all songs in the iPod/iPhone randomly. Any one Suppose the song you are searching for is located at around the song does not play back again until all songs have been played back. middle (50%) of your library: press button 4 to jump to the 50th song and turn the Rotary encoder to find the desired song.

  • Page 27: Information

    Information Unable to fast forward or backward the CD. In Case of Difficulty CD playback sound skips due to vibration. Basic No function or display. CD playback sound skips without vibration. Error displays (built-in CD player only).  CD-R/CD-RW playback not possible. Radio MP3/WMA/AAC Unable to receive stations.

  • Page 28: Indication For Usb Memory

    2 When the error indication remains after ejecting, press the  button again. Indication for iPod Mode If the error indication still does not turn off after pressing the  button for a few times, consult your Alpine dealer.  RESET ...

  • Page 29: Indication For All Modes

    PICKUP Indication for all Modes GENERAL Specifications CHASSIS SIZE FM TUNER SECTION NOSEPIECE SIZE Note • Due to continuous product improvement, specifications and design are MW TUNER SECTION subject to change without notice. CAUTION LW TUNER SECTION CLASS 1 CD PLAYER SECTION LASER PRODUCT (Bottom side of player) USB SECTION...

  • Page 30: Installation And Connections

    Installation and Connections Before installing or connecting the unit, please read the following and refer to “Operating Instructions” on page 5 for proper use. WARNING ARRANGE THE WIRING SO IT IS NOT CRIMPED OR PINCHED BY A SHARP METAL EDGE. MAKE THE CORRECT CONNECTIONS.

  • Page 31: Installation

    This unit When your vehicle has the Bracket, mount the long hex bolt onto the rear panel of the CDE-126BT/CDE-125BT and put the Rubber Cap on the hex bolt. If your vehicle does not have the Mounting Support, reinforce the head unit Mounting Bracket with the metal mounting strap (not supplied).

  • Page 32: Connections

    Front Left (White/Black) (Grey/Black) Front Right (Grey) (Violet/Black) Rear Right (Violet) Speakers CDE-126BT only Front Left Amplifier Front Right CDE-126BT : Rear or Subwoofers Amplifier CDE-125BT : Front or Subwoofers When Subwoofer is OFF: Output is for Rear speakers. When Subwoofer is ON: Output is for Subwoofer.
  • Page 33 If you add an optional noise suppressor, connect it as far away ignition is turned on or in the accessory position. from the unit as possible. Your Alpine dealer carries various  Ground Lead (Black) noise suppressors, contact them for further information.
