Alpine F1 Status CDA-7990R Owner's Manual

Fm/mw/lw/rds cd player
Hide thumbs Also See for F1 Status CDA-7990R:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Alpine F1 Status CDA-7990R

Summary of Contents for Alpine F1 Status CDA-7990R

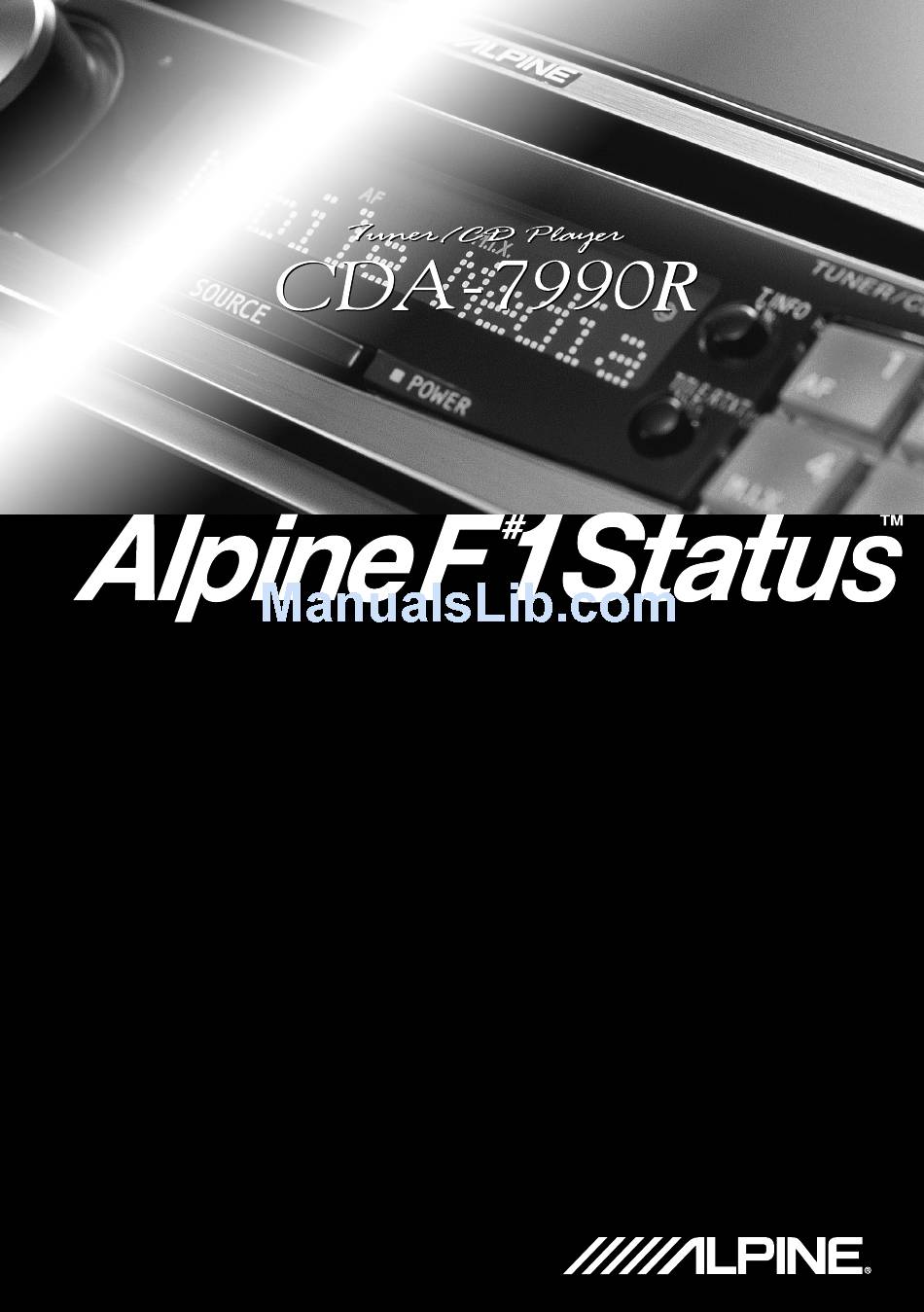

  • Page 2 CDA-7990R FM/MW/LW/RDS CD Player • OWNER’S MANUAL Please read before using this equipment. • BEDIENUNGSANLEITUNG Lesen Sie diese Bedienungsanleitung bitte vor Gebrauch des Gerätes. • MODE D’EMPLOI Veuillez lire avant d’utiliser cet appareil. • MANUAL DE OPERACIÓN Léalo antes de utilizar este equipo.

  • Page 4: Table Of Contents

    Contents WARNING RDS Operation WARNING ..........2 Setting RDS Reception Mode and Receiving RDS Stations ....27 CAUTION ..........3 Recalling Preset RDS Stations ....28 PRECAUTIONS ........3 Receiving RDS Regional (Local) Basic Operation Stations ........... 29 Detaching the Front Panel ......6 Receiving Traffic Information ....

  • Page 5: Warning

    WARNING KEEP SMALL OBJECTS SUCH AS BATTERIES WARNING OUT OF THE REACH OF CHILDREN. Swallowing them may result in serious injury. This symbol means important instruc- If swallowed, consult a physician immediately. tions. Failure to heed them can result in USE THE CORRECT AMPERE RATING WHEN serious injury or death.

  • Page 6: Caution

    Do not attempt to play cracked, warped, or damaged discs. Playing a bad disc could severely damage the playback mechanism. Maintenance If you have problems, do not attempt to repair the unit yourself. Return it to your Alpine dealer or the nearest Alpine Service Station for servicing.
  • Page 7 Never Attempt the Following New Discs Do not grip or pull out the disc while it is being As a protective measure to prevent the CD pulled back into the player by the automatic from jamming, the CD player will automati- reloading mechanism.
  • Page 8 Installation Location Disc Cleaning Make sure the CDA-7990R will not be Fingerprints, dust, or soil on the surface of the installed in a location subjected to: disc could cause the CD player to skip. For • Direct sun and heat routine cleaning, wipe the playing surface with •...

  • Page 9: Basic Operation

    Basic Operation POWER Detaching the Front Panel Press the POWER button for more than 3 seconds to turn off the power. Press the RLS (Release) button at lower left • The front panel may become hot in normal usage (especially the corner until the front panel pops out.

  • Page 10: Attaching The Front Panel

    Attaching the Front Panel First, insert the right side of the front panel into the main unit. Align the groove on the front panel with the projections on the main unit. Push the left side of the front panel until it locks •...

  • Page 11: Turning Power On And Off

    Press the POWER button to turn on the unit. • Controllable with Remote Control This unit can be controlled with an optional Alpine remote The volume level gradually increases to the control. For details, consult your previous level you were listening to before the unit Alpine dealer.

  • Page 12: Adjusting Volume/Subwoofer/Bass/Treble

    Adjusting Volume/Subwoofer/ Bass/Treble/Balance (Between Left and Right)/Fader (Between Front and Rear) Press the MODE (Audio Control) knob repeatedly • * Not displayed when setting the SUB-W mode to OFF. to choose the desired mode. (For the setting of the SUB- Each press changes the modes as follows: W mode, refer to page 17.) •...

  • Page 13: Adjusting The Bass/Treble Center Frequencies

    Basic Operation SETUP TUNE Adjusting the Bass/Treble Center Frequencies You can change the Bass/Treble center frequencies on this unit. This gives you flexibility in creating your ideal sound field. Press and hold the SETUP button for at least 3 seconds. •...
  • Page 14 Press the TUNE button to select the desired setting. 1. BC (Setting the Bass Center Frequency): BC 60Hz BC 70Hz BC 80Hz BC 90Hz BC 200Hz BC 150Hz BC 130Hz BC 100Hz Emphasizes the displayed Bass frequency ranges. 2. BW (Setting the Bass Band Width): (Q-Factor) BW WIDE1 BW WIDE2...

  • Page 15: Setting When Using The Remote Control

    REM CONT ON • REM CONT ON: Set to ON when using the optional Remote Control to operate the CDA-7990R. • REM CONT OFF: Resist the inference from the noise such as ultraviolet rays exist in the natural to provide a much higher quality sound.

  • Page 16: Adjusting Source Signal Level

    When the setting is completed, press the SETUP button to return to the normal mode. Adjusting Source Signal Level If the difference in volume level between the CD player and FM radio is too great, adjust the FM signal level as follows. Press and hold the SETUP button for at least 3 seconds.

  • Page 17: Changing Backlighting Colour

    Basic Operation SETUP TUNE Changing Backlighting Colour Press and hold the SETUP button for at least 3 seconds. Press the UP button repeatedly to select • If you press the DN button “ILLUMI”. the display scrolls in reverse sequence. Each press of the UP button changes the modes as shown: BASS/TRE...

  • Page 18: Switching The Tuner Mode

    Switching the Tuner Mode The CDA-7990R incorporates the MAX TUNE Pro for the highest quality tuner audio. Moreover, you can choose between two settings to suit your own personal sound preferences and usage. Press and hold the SETUP button for at least 3 seconds.

  • Page 19: Cd Text Scroll Setting

    Basic Operation SETUP TUNE MODE (Audio Control) CD Text Scroll Setting This CD player has the ability to scroll the disc and track name recorded on CD-Text discs. The scrolling feature will work with names greater than 12 characters. This feature will not work for the 12 character titles that were input manually.

  • Page 20: Subwoofer On And Off

    Subwoofer On and Off Press and hold the SETUP button for more than 3 seconds. Press the UP button repeatedly to select • If you press the DN button the display scrolls in reverse “SUB-W”. sequence. Each press of the UP button changes the modes as shown: BASS/TRE...

  • Page 21: Digital Optical Output On And Off

    Basic Operation SETUP TUNE SOURCE Digital Optical Output On and Off When connecting to the Multimedia Manager (PXA-H900), set the D-OUT mode to ON. Set to OFF when not connecting PXA-H900. Press and hold the SETUP button for at least 3 seconds.

  • Page 22: Setting The Aux Mode

    Setting the AUX Mode You can input TV/video sound by connecting an optional Ai- NET/RCA Interface cable (KCA-121B) to this component. Press and hold the SETUP button for more than 3 seconds. • If you press the DN button Press the UP button repeatedly to select the display scrolls in reverse “AUX-IN”...

  • Page 23: Turning Mute Mode On/Off

    Basic Operation B. OUT indicator SETUP TUNE B.OUT (Black out) Turning Mute Mode On/Off If a device having the interrupt feature is connected, audio will be automatically muted whenever the interrupt signal is received from the device. This function can be turned ON or OFF from the head unit by following procedure below.

  • Page 24: Blackout Mode On And Off

    B. OUT indicator OFF. Recalling the Stored Settings • Refer to the Owner’s manual of Settings stored in the Alpine Multimedia Manager (PXA-H900) the optional Remote Control. using the optional Remote Control, can be recalled at any time. Press the A. PROC button on the Remote control.

  • Page 25: Radio Operation

    Radio Operation TUNE BAND SOURCE Manual Tuning Press the SOURCE button until a radio frequency appears in the display. Press the BAND button repeatedly until the desired radio band is displayed. Each press changes the band: F1(FM1) F2(FM2) F3(FM3) Press the TUNE button repeatedly until “DX •...

  • Page 26: Automatic Seek Tuning

    Automatic Seek Tuning Press the SOURCE button until a radio frequency appears in the display. Press the BAND button repeatedly until the desired radio band is displayed. Each press changes the band: F1(FM1) F2(FM2) F3(FM3) Press the TUNE button to illuminate the DX and SEEK indicators in the display.

  • Page 27: Manual Storing Of Station Presets

    Radio Operation Preset buttons A. ME BAND FUNC Function indicator SOURCE Manual Storing of Station Presets Select the radio band and tune in a desired radio • Perform the preset selection after station you wish to store in the preset memory. confirming if the function indicator lights in green.

  • Page 28: Automatic Memory Of Station Presets

    Repeat the procedure to store up to 5 other • If you store a station in a preset stations onto the same band. memory which already has a station, the current station will be To use this procedure for other bands, simply cleared and replaced with the select the band desired and repeat the proce- new station.

  • Page 29: Tuning To Preset Stations

    Radio Operation Preset BAND FUNC Function indicator SOURCE Tuning to Preset Stations Press the SOURCE button to select the radio • Perform the preset selection after mode. confirming if the function indicator lights in green. Press the FUNC button to turn the function indicator to green Press the BAND button repeatedly until the when function indicator lights in...

  • Page 30: Rds Operation

    RDS Operation Setting RDS Reception Mode and Receiving RDS Stations The RDS (Radio Data System) is a radio information system using the 57 kHz subcarrier of regular FM broadcast. The RDS allows you to receive a variety of information such as traffic information, station names, and to automatically re-tune to a stronger transmitter that is broadcasting the same programme.

  • Page 31: Recalling Preset Rds Stations

    RDS Operation SETUP Preset buttons TUNE FUNC Function indicator Recalling Preset RDS Stations Press the FUNC button to light the function indicator in red and set the Function mode to ON. Press the AF button to activate the RDS mode. The display shows “AF”...

  • Page 32: Receiving Rds Regional (Local) Stations

    Receiving RDS Regional (Local) Stations Press and hold the SETUP button for at least 3 seconds to activate the setting mode. • If you press the DN button Press the UP button repeatedly to select the display scrolls in reverse “REGIONAL”.

  • Page 33: Receiving Traffic Information

    RDS Operation T. INFO FUNC Function indicator Receiving Traffic Information Press the T.INFO button to activate the Traffic Information mode. To cancel the Traffic information mode, press the T.INFO button again. Press the DN or UP button to select your •...

  • Page 34: Pty (Programme Type) Tuning

    PTY (Programme Type) Tuning Press the FUNC button to light the function indicator in red and set the Function mode to ON. Press the PTY button to activate the PTY mode. • If no button is pressed within 5 seconds after pressing the PTY The Programme Type of the station being cur- button, the PTY mode will be rently received will be displayed for 5 seconds.

  • Page 35: Receiving Traffic Information While Playing Cd Or Radio

    RDS Operation T. INFO P. PTY FUNC Function indicator Receiving Traffic Information While Playing CD or Radio Press the T.INFO button repeatedly until the T.INFO indicator appears in the display. Press the DN or UP button to select a • The receiver is equipped with the EON (Enhanced Other Net- traffic information station if necessary.

  • Page 36: Priority Pty (Programme Type)

    Priority PTY (Programme Type) This function allows presetting of a programme type such as music category, news, etc. You can listen to a programme in the preset programme type as the unit automatically gives priority to the preset programme type when it begins broadcasting, and interrupts the programme you are currently listening.

  • Page 37: Turning Emergency Alarm On Or Off

    RDS Operation SETUP TUNE R.TEXT Turning Emergency Alarm On or Off Press and hold the SETUP button for at least 3 seconds. • If you press the DN button Press the UP button repeatedly to select the display scrolls in reverse “PTY31”.

  • Page 38: Displaying Radio Text

    Displaying Radio Text Text messages from a radio station can be displayed. Tune in a radio station that transmits text mes- sages. Press the R.TEXT button to activate the Radio Text mode. The display shows “R/T WAIT” for a few seconds, then starts scrolling the text mes- sage.

  • Page 39: Cd Player Operation

    CD Player Operation Function indicator SOURCE Playback Insert a disc with the label side facing up. Insert a disc with the label side facing up. • Three-inch (8 cm) CD’s can be used. The disc will be pulled into the unit automatically. •...

  • Page 40: Music Sensor (Skip)

    To pause playback, press the button. Press- ing the button again will resume playback. To eject the disc, press the button. Music Sensor (Skip) Momentarily press the DN button once during • The music sensor feature is CD play to return to the beginning of the current functional in the play or pause mode.

  • Page 41: Repeat Play

    CD Player Operation REPEAT FUNC Function indicator M.I.X. Repeat Play Press the REPEAT button to play back repeatedly • If a CD Changer is connected the track being played. and the RPT ALL mode is selected, the unit repeatedly The RPT indicator appears and the track will be plays back all tracks on the disc played repeatedly.

  • Page 42: Random Play)

    M.I.X. (Random Play) Press the M.I.X. button in the play or pause mode. • If a CD Changer equipped with the ALL M.I.X. function is The M.I.X. indicator will illuminate and the tracks connected, ALL M.I.X. will also on the disc will be played back in a random be selectable.

  • Page 43: Scanning Programmes

    CD Player Operation SCAN FUNC Function indicator TITLE Scanning Programmes • In case a 6-disc CD changer is Press the SCAN button to activate the Scan connected: mode. In CD changer mode, press the The first 10 seconds of each track will be played FUNC button to light the back in succession.

  • Page 44: Displaying The Title/Text

    Displaying the Title/Text It is possible to display the CD title if the title has been previously inputted. For details, see Titling Discs (pages 42, 43). Text information, such as the disc name and the track name, will be displayed if playing a CD text compatible disc. Press the TITLE button.

  • Page 45: Titling Discs

    CD Player Operation BAND MODE (Audio Control) TITLE Titling Discs It is possible to title your favourite CD’s. Press the TITLE button and select the title display mode. For details, see “Displaying the Title/Text” (page 41). Press and hold the TITLE button for at least 3 seconds.
  • Page 46 Rotate the MODE (Audio Control) knob to select the desired letter/numeral/symbol available for naming. (“A” for example). Press the MODE (Audio Control) button to store the first character. The first character will stop blinking and the display will automatically ad- vance to the next character.

  • Page 47: Searching For Titled Discs/Cd-Text

    CD Player Operation BAND T.S.M. TITLE Searching for Titled Discs/CD- TEXT If a CD is titled or contains CD-TEXT, you can do a search for it. (To title CDs, refer to “Titling Discs” on pages 42, 43.) Press and hold the T.S.M. button for at least 2 seconds.

  • Page 48: Erasing Disc Title

    Erasing Disc Title Press the TITLE button to select the disc titling mode. Then, press and hold for at least 3 sec- onds. Press and hold the button for at least 2 seconds to activate the title scanning mode. The title in the display will blink.

  • Page 49: Controlling Cd Changer (Optional)

    An optional 6-disc or 12-disc CD Changer may be connected to • The controls on the CDA-7990R for CD Changer operation are the CDA-7990R if it is Ai-NET compatible. With a CD Changer operative only when a CD connected to the Ai-NET input of the CDA-7990R, the CD Changer is connected.

  • Page 50: Multi-Changer Selection

    1 to 6 will represent discs 7 to 12 respec- tively. Multi-Changer Selection Alpine’s Ai-NET system will support up to 6 CD Changers. When operating two or more changers, the KCA-400C (Multi-Changer Switching device) must be used. If you use 1 Switching device, you can connect up to 4 CD Changers.

  • Page 51: Information

    Otherwise, make sure the rest area, the antenna may not be grounded and of your system is properly connected or connected properly. consult your authorized Alpine dealer. - Check your antenna connections; make sure the antenna is properly grounded at its mounting location.
  • Page 52 ERROR - 01 damage to the mechanism. • Malfunction in the CD Changer. CD playback sound skips due to - Consult your Alpine dealer. Press the vibration. magazine eject button and pull out the • Improper mounting of the unit.

  • Page 53: Specifications

    Specifications FM TUNER SECTION Tuning Range 87.5 – 108.0 MHz Mono Usable Sensitivity 0.7 V Alternate Channel Selectivity 90 dB Signal-to-Noise Ratio 65 dB Stereo Separation 35 dB MW TUNER SECTION Tuning Range 531 – 1,602 kHz Sensitivity (IEC Standard) 25.1 V/28 dB LW TUNER SECTION Tuning Range 153 –...
  • Page 54 More musical selections, more versatility, more convenience. An Alpine CD Changer adds more musical choices to your sound system. All models can be controlled from Alpine head units and deliver excellent sound quality. The CHA-S624 is a high-performance 6-disc changer with a new M DAC, Ai-NET compatibility, Optical Digital Output, 150 Disc Title Memory and CD TEXT.
  • Page 57 Tel.: 1-800-ALPINE-1 (1-800-257-4631) ALPINE ELECTRONICS OF CANADA, INC. Suite 203, 7300 Warden Ave. Markham, Ontario L3R 9Z6, Canada Tel.: 1-800-ALPINE-1 (1-800-257-4631) ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD. 6-8 Fiveways Boulevarde Keysborough, Victoria 3173, Australia Tel.: (03) 9769-0000 ALPINE ELECTRONICS GmbH...
