Alpine cda-7873 Owner's Manual

Fm/am cd player; fm/am cd receiver
Hide thumbs Also See for cda-7873:
Table of Contents

Advertisement

Quick Links

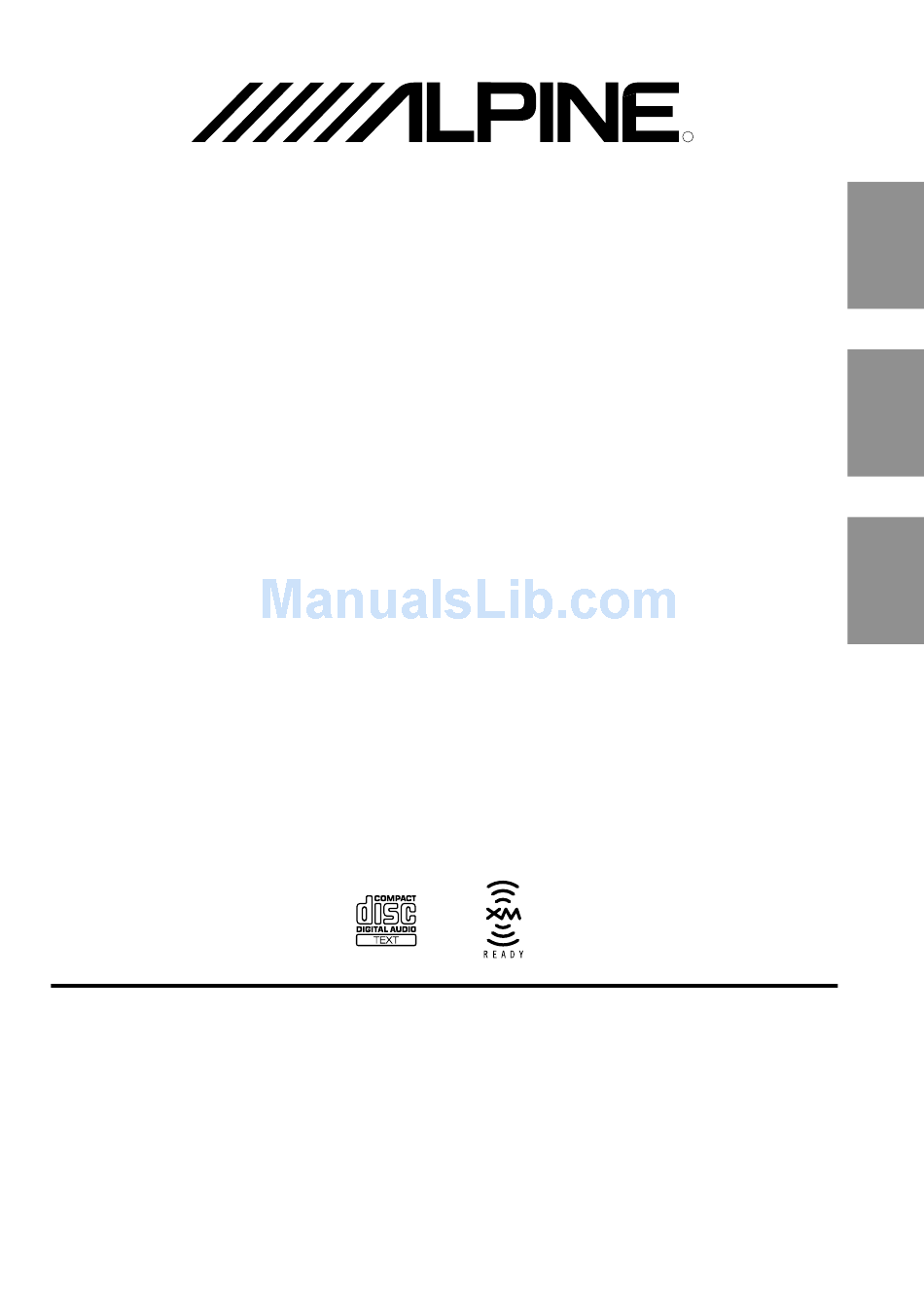

ALPINE ELECTRONICS, INC.
Tokyo office: 1-1-8 Nishi Gotanda,
Shinagawa-ku,
Tokyo 141-8501, Japan
Tel.: (03) 3494-1101
ALPINE ELECTRONICS OF AMERICA, INC.
19145 Gramercy Place, Torrance,
California 90501, U.S.A.
Tel.: 1-800-ALPINE-1 (1-800-257-4631)
ALPINE ELECTRONICS OF CANADA, INC.
Suite 203, 7300 Warden Ave. Markham,
Ontario L3R 9Z6, Canada
Tel.: 1-800-ALPINE-1 (1-800-257-4631)
Dalian Ikemiya Printing Co., Ltd.
4 Jin Zhou Street Economic & Technical Development
Dalian China
CDA-7977
FM/AM CD Player
CDA-7876
CDA-7875
CDA-7873
FM/AM CD Receiver
• OWNER'S MANUAL
Please read before using this equipment.
• MODE D'EMPLOI
Veuillez lire avant d'utiliser cet appareil.
• MANUAL DE OPERACIÓN
Léalo antes de utilizar este equipo.
ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.
6-8 Fiveways Boulevarde Keysborough,
Victoria 3173, Australia
Tel.: (03) 9769-0000
ALPINE ELECTRONICS GmbH
Kreuzerkamp 7-11 40878 Ratingen, Germany
Tel.: 02102-45 50
ALPINE ITALIA S.p.A.
Via C. Colombo 8, 20090 Trezzano Sul Naviglio
MI, Italy
Tel.: 02-48 47 81
R R
ALPINE ELECTRONICS FRANCE S.A.R.L.
(RCS PONTOISE B 338 101 280)
98, Rue De La Belle Etoile, Z.I. Paris Nord Il
B.P. 50016 F-95945, Roissy, Charles De Gaulle
Cedex, France
Tel.: 01-48 63 89 89
ALPINE ELECTRONICS OF U.K., LTD.
13 Tanners Drive, Blakelands, Milton Keynes
MK14 5BU, U.K.
Tel.: 01908-61 15 56
ALPINE ELECTRONICS DE ESPAÑA, S.A.
Portal De Gamarra 36, Pabellón 32
01013 Vitoria (Alava)-Apdo. 133, Spain
Tel.: 34-45-283588
Designed by ALPINE Japan
Printed in China (Y)
68P01434K28-O
EN
FR
ES
ES
IT
SE

Advertisement

Table of Contents
loading

Related Manuals for Alpine cda-7873

Summary of Contents for Alpine cda-7873

  • Page 1 FM/AM CD Player Please read before using this equipment. Veuillez lire avant d'utiliser cet appareil. Léalo antes de utilizar este equipo. ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD. 6-8 Fiveways Boulevarde Keysborough, Victoria 3173, Australia Tel.: (03) 9769-0000 ALPINE ELECTRONICS GmbH Kreuzerkamp 7-11 40878 Ratingen, Germany Tel.: 02102-45 50...
  • Page 2 More musical selections, more versatility, more convenience. An Alpine CD Changer adds more musical choices to your sound system. All models except CHM-S620 can be controlled from Alpine head units and deliver excellent sound quality. The CHA-S624 is a high- performance 6-disc changer with a new M DAC, Ai-NET compatibility, Optical Digital Output, 150 Disc Title Memory and CD TEXT.

  • Page 3: Table Of Contents

    ... 11 Switching the Display Modes (CDA-7977/ CDA-7876 only) ... 11 Changing the Audio Level Display Pattern (CDA-7875/CDA-7873 only) ... 11 Displaying the Title/Text ... 12 Titling Discs/Stations ... 13 Searching for Titled Discs/Titled Stations ... 13 Erasing Disc Title/Station Title ... 13...

  • Page 4: Warning

    HALT USE IMMEDIATELY IF A PROBLEM APPEARS. Failure to do so may cause personal injury or damage to the product. Return it to your authorized Alpine dealer or the nearest Alpine Service Center for repairing. DO NOT MIX NEW BATTERIES WITH OLD BATTERIES.
  • Page 5 However, most of them will influence the thickness and/or diameter of the disc. Using such accessories can cause the disc to be out of standard specifications and may create operational problems. We recommend not using these accessories on discs played in Alpine CD players. Transparent Sheet CORRECT CORRECT...

  • Page 6: Basic Operation

    RESET MUTE ANGLE 8 9 • Controllable with Remote Control (CDA-7873 only) This unit can be controlled with an optional Alpine remote control. For details, consult your Alpine dealer. Point the optional remote control transmitter at the remote control sensor.

  • Page 7: Display Angle Adjustment

    Display Angle Adjustment Movable display The movable display may be adjusted to 3 different angles depending upon user preference. Press the ANGLE 89 button to adjust the angle of the movable display. NOTES • The display will close a half minute after the ignition key is turned to the OFF position.

  • Page 8: Setting Time

    Basic Operation TUNE g DN Setting Time In the Clock priority mode, press and hold the CLK (clock) button for at least 3 seconds while the time is displayed. The time indication will blink. Rotate the MODE (Audio Control) knob to adjust the hours while the time indication is blinking.

  • Page 9: Sound (Beep) Guide Function

    Press the TUNE button to toggle mode between SUB-W ON and SUBW OFF. Press the SETUP button after setting the SUB-W Press the MODE button repeatedly to select the SUB-W mode. → SUB-W → BALANCE VOLUME ← FADER ← Press the g DN or f UP button after selecting the SUB-W mode, and the subwoofer output phase is toggled SUBW NOR (0°) or SUBW REV (180°).

  • Page 10: Setting The Aux Mode (V-Link)

    Basic Operation SOURCE g DN f UP CENTER f Setting the AUX Mode (V-Link) You can input TV/video sound by connecting an optional Ai-NET/RCA Interface cable (KCA-121B) or Versatile Link Terminal (KCA-410C) to this component. Press and hold the SETUP button for at least 3 seconds.

  • Page 11: Setting The Bass Control

    Setting the Bass Control You can change the Bass Frequency emphasis to create your own tonal preference. Press the CENTER f button to select the BASS (bass Center frequency) control mode. → BASS → TREBLE → OFF Setting the bass Center frequency: Press the g DN or f UP button to select the desired bass center frequency.

  • Page 12: Setting Bass Forward

    3 seconds. DISP/B.OUT BAND SETUP Switching the Tuner Mode The CDA-7977/CDA-7876/CDA-7875/CDA-7873 incorporates the MAX TUNE SQ for the highest quality tuner audio. Moreover, you can choose between two settings to suit your own personal sound preferences and usage.

  • Page 13: Blackout Mode On And Off (Cda-7977 Only)

    Changing the Audio Level Display Pattern CDA-7977 only You can select the Audio Level Display from three display patterns. You can also deactivate the display. Press DISP button to switch the display pattern. → Pattern1 → Pattern2 → Pattern3 → OFF CDA-7875/CDA-7873 only...

  • Page 14: Displaying The Title/Text

    Basic Operation g DN Displaying the Title/Text It is possible to display the CD/Station title if the title has been previously inputted. For details, see Titling Disc/Stations (page 13). Text information, such as the disc name and the track name, will be displayed if playing a CD text compatible disc.

  • Page 15: Titling Discs/Stations

    Titling Discs/Stations It is possible to title your favorite CD's or radio stations. Press the TITLE button and select the title display mode. For details, see Displaying the Title/Text (page 12). Press and hold the TITLE button for at least 3 seconds.

  • Page 16: Radio Operation

    Radio Operation SOURCE TUNE/A.ME g DN Manual Tuning Press the SOURCE button until a radio frequency appears in the display. Press the BAND button repeatedly until the desired radio band is displayed. Each press changes the band: → FM1 → FM2 → AM Press the TUNE button repeatedly until “DX SEEK”...

  • Page 17: Manual Storing Of Station Presets

    Manual Storing of Station Presets Select the radio band and tune in a desired radio station you wish to store in the preset memory. Press and hold any one of the Preset buttons (1 through 6) for at least 2 seconds until the station frequency on the display blinks.

  • Page 18: Cd Player Operation

    CD Player Operation SOURCE g DN f UP Opening and Closing the Movable display Press the c button. The movable display will open. To close the movable display, press the c button again. The movable display will close. NOTES • Do not apply shock to the movable display when it is open as it may result in malfunction of the unit.

  • Page 19: Music Sensor (Skip)

    Music Sensor (Skip) Momentarily press the g DN button once during CD play to return to the beginning of the current track. If you wish to access the beginning of a track further back, repeatedly press until you reach the desired track. Press the f UP button once to advance to the beginning of the next track.

  • Page 20: Controlling Cd Changer (Optional)

    Controlling CD Changer (Optional) An optional 6-disc or 12-disc CD Changer may be connected to the CDA-7977/CDA-7876/CDA- 7875/CDA-7873 if it is Ai-NET compatible. With a CD Changer connected to the Ai-NET input of the CDA-7977/CDA-7876/CDA-7875/CDA-7873, the CD Changer will be controllable from the CDA- 7977/CDA-7876/CDA-7875/CDA-7873.

  • Page 21: Multi-Changer Selection

    Multi-Changer Selection Alpine's Ai-NET system will support up to 6 CD Changers. When operating two or more changers, the KCA-400C (Multi-Changer Switching device) must be used. If you use 1 Switching device, you can connect up to 4 CD Changers. If you use 2 Switching devices, you can connect up to 6 CD Changers.

  • Page 22: Xm Radio Operation

    * XM and its corresponding logos are trademarks of XM Satellite Radio Inc. NOTES • The controls on the CDA-7977/CDA-7876/CDA-7875/ CDA-7873 for XM Receiver operation are operative only when an XM Receiver is connected. • The XM1 or XM2 band illuminates when in XM mode. BAND...

  • Page 23: Checking The Xm Radio Id Number

    XM Receiver. It can also be displayed on the screen of the CDA- 7977/CDA-7876/CDA-7875/CDA-7873 in the following way. While receiving XM1/XM2, press the g DN or f UP button to select channel “0.”...

  • Page 24: Category Search

    XM Radio Operation g DN f UP Category Search Category Search functionality allows you to search for a specific channel by the category of programming it offers, or to surf within a given category. In XM mode, press the CAT button to display the category of the channel that is currently selected for 5 seconds.

  • Page 25: Remote Control Operation

    Controls on Remote Control CDA-7977/CDA-7876/CDA-7875 only NOTE Although the remote control is not supplied with the CDA-7873, you can use it, if purchased separately. 1 Power Button Press the button to turn the power on/off. 2 Source Button Press to select the audio source.

  • Page 26: Battery Replacement

    Battery Replacement CDA-7977/CDA-7876/CDA-7875 only Applicable battery: Use two “AAA” sized dry batteries or equivalent. Opening the battery cover Slide out the battery cover while firmly pressing the direction of arrow. Replacing the battery Put the batteries in the case observing the polarities as illustrated.

  • Page 27: Information

    This guide will help you isolate the problem if the unit is at fault. Otherwise, make sure the rest of your system is properly connected or consult your authorized Alpine dealer. Basic No function or display. • Vehicle's ignition is off.

  • Page 28: Indication For Cd Player

    ERROR - 01 • Malfunction in the CD Changer. - Consult your Alpine dealer. Press the magazine eject button and pull out the magazine. Check the indication. Insert the magazine again. If the magazine cannot be pulled out, consult your Alpine dealer.

  • Page 29: Specifications

    50 g (1.8 oz) GENERAL Power Requirement 14.4 V DC (11–16 V allowable) 60 W × 4 (CDA-7876/CDA- Maximum Power Output 7875/CDA-7873 only) Maximum Pre-Output Voltage 5 V/10 k ohms (CDA-7977 only) 2V/10k ohms (CDA-7876/ CDA-7875/CDA-7873 only) Maximum Subwoofer Output Voltage...

  • Page 30: Installation And Connections

    Do not tap into these leads to provide power for this unit. When connecting the CDA-7977/CDA-7876/CDA-7875/ CDA-7873 to the fuse box, make sure the fuse for the intended circuit of the CDA-7977/CDA-7876/CDA-7875/CDA-7873 has the appropriate amperage. Failure to do so may result in damage to the unit and/or the vehicle.

  • Page 31: Installation

    Connect each input lead coming from an amplifier or equalizer to the corresponding output lead coming from the left rear of the CDA-7977/CDA-7876/CDA- 7875/CDA-7873. Connect all other leads of the CDA- 7977/CDA-7876/CDA-7875/CDA-7873 according to details described in the CONNECTlONS section.

  • Page 32: Connections

    For details on how to set the Subwoofer to ON/OFF, see “Subwoofer On and Off” on page 6. POWER ANT Blue REMOTE TURN-ON AUDIO INTERRUPT IN ILLUMINATION Orange IGNITION Ignition Key BATTERY Yellow Black (CDA-7876/CDA-7875/ Speakers CDA-7873 only) " Gray SPEAKER Gray/ RIGHT FRONT Black Violet/ Black SPEAKER RIGHT REAR Violet & Green SPEAKER Green/...
  • Page 33 • Connect the ground lead securely to a bare metal spot (remove any paint, dirt or grease if necessary) of the car chassis. • If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine dealer carries various noise suppressors, contact them for further information.
  • Page 35 GARANTIE LIMITÉE Fidèles à leur engagement de ne fournir que des produits de qualité, ALPINE ELECTRONIQUE DE L'AMERIQUE INC. et ALPINE ELECTRONIQUE DU CANADA INC. (Alpine) sont heureuses de vous offrir cette garantie. Nous vous suggérons de le lire attentivement et en entier. Si vous avez la moindre question, veuillez contacter l'un de nos concessionnaires ou appeler directement Alpine au numéros Liste ci-dessous.

  • Page 36: Limited Warranty

    LIMITED WARRANTY ALPINE ELECTRONICS OF AMERICA, INC. AND ALPINE OF CANADA INC. ("Alpine"), are dedicated to quality craftsmanship and are pleased to offer this Warranty. We suggest that you read it thoroughly. Should you have any questions, please contact your Dealer or Alpine at one of the telephone numbers listed below.
