If you purchase the optional heart rate monitor (see page 25), follow the additional step below to install
the receiver included with the heart rate monitor.
25. See step 17. Remove the Front and Rear Leg
Covers (29, 30, 31, 32) if necessary.
See steps 11 and 10. Remove the Front and
Rear Upright Covers (25, 24) if necessary.
Remove the paper from the adhesive pad on
the back of the Receiver (A). Press the Receiver
onto the inside of the Rear Upright Cover (24)
below the Accessory Tray (26).

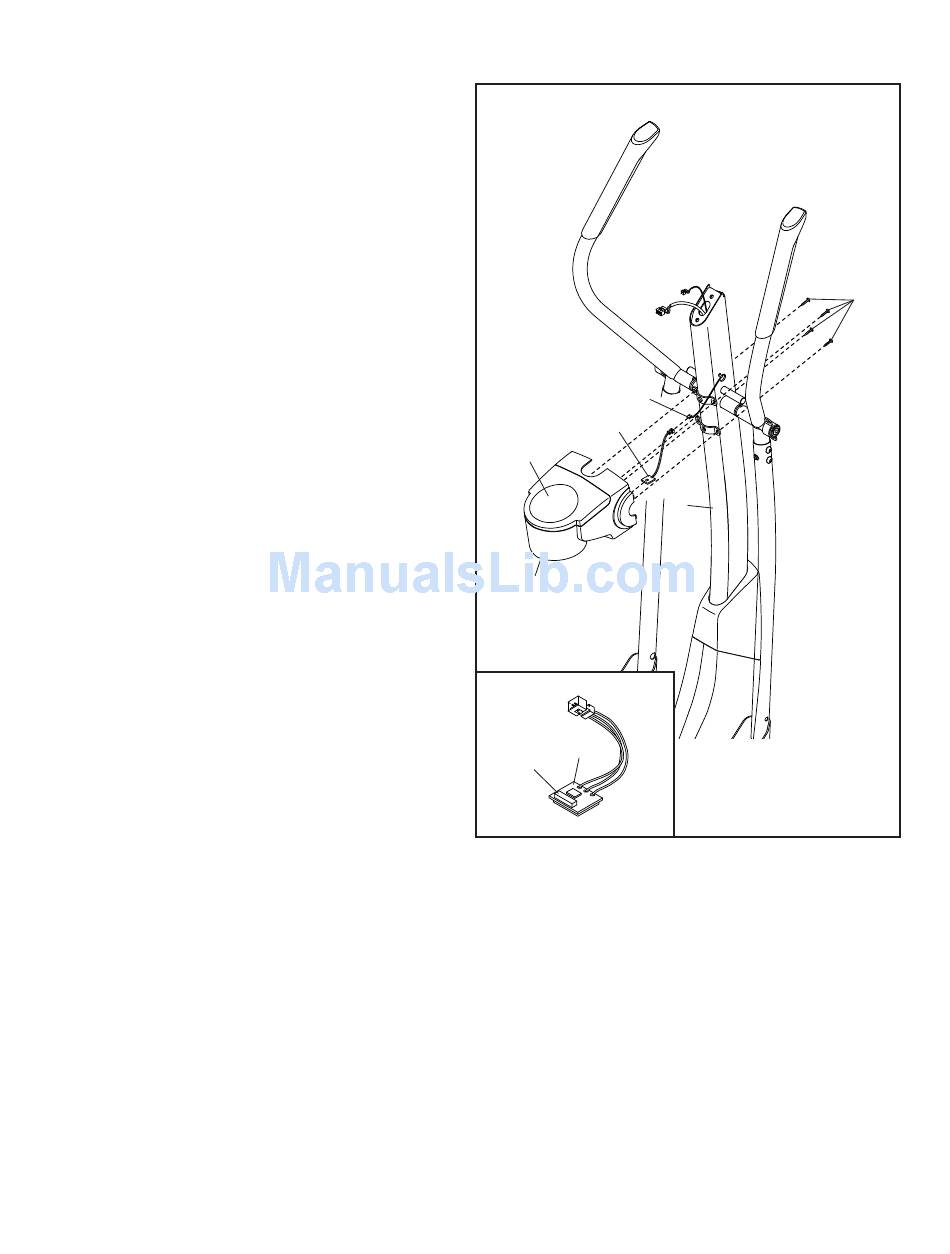

See the inset drawing. Make sure that the
antenna on the Receiver (A) is oriented so
that it is in a horizontal position parallel to
the floor.
Connect the wire on the Receiver (A) to the
Extension Wire (121).
Next, attach the Rear Upright Cover (24) to the
Upright (5) with four M4 x 16mm Screws (93).
Then, see step 11 and atttach the Front Upright
Cover (25) if necessary.
Next, see step 17 and attach the Front and Rear
Leg Covers (29, 30, 31, 32) if necessary.
Note: If you are installing the receiver as part of
the elliptical assembly, go to step 11 and con-
tinue assembly.
Note: Discard any other wires that are included
with the heart rate monitor.
