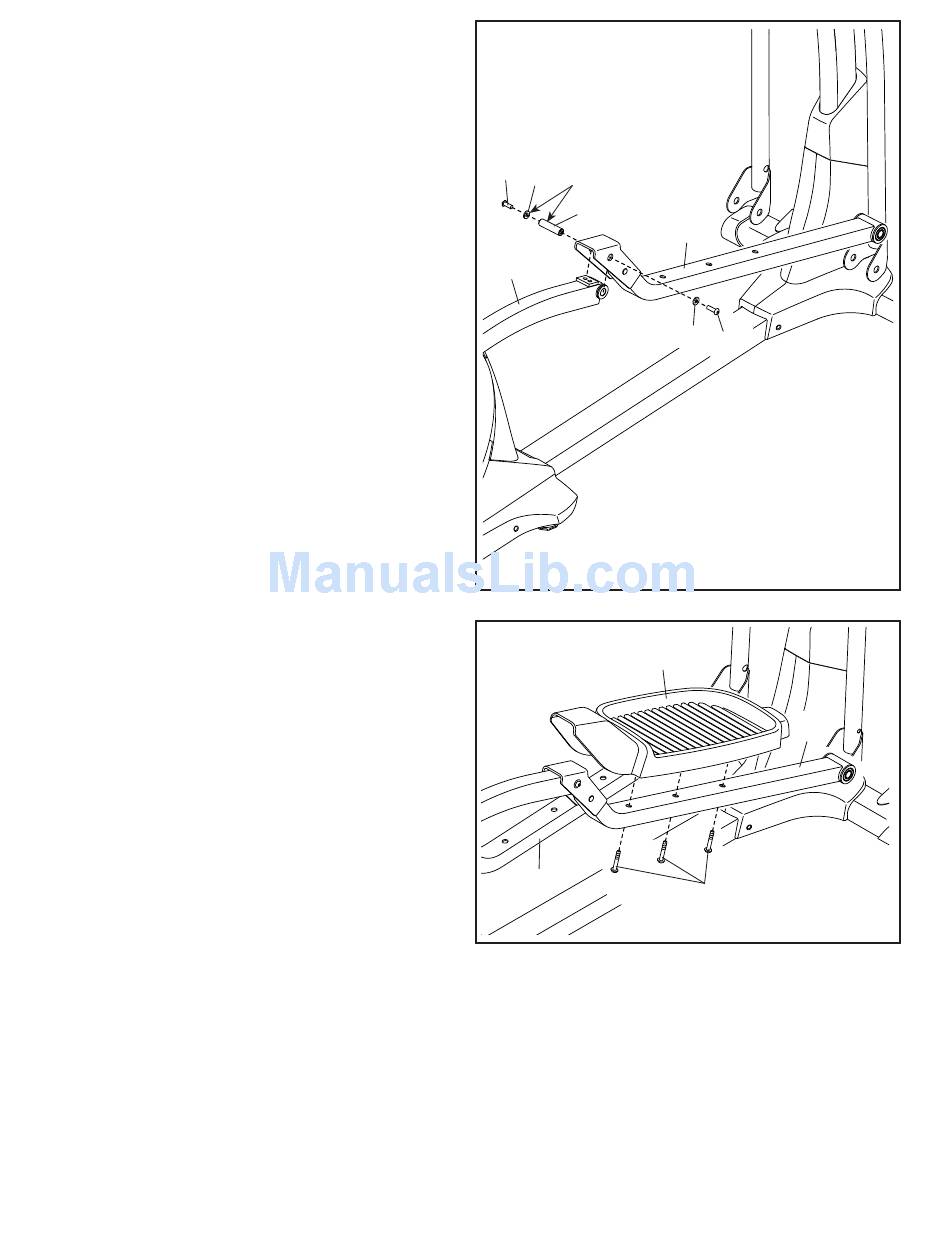

12. Identify the Short Pedal Arm Axles (115) and the
Long Pedal Arm Axles (not shown).
Apply a small amount of grease to a Short Pedal
Arm Axle (115) and to an M8 x 23mm x 1.5mm
Washer (91).
Next, tighten an M8 x 16mm Screw (102) and
the M8 x 23mm x 1.5mm Washer (91) a few
turns into one end of the Short Pedal Arm
Axle (115).
Orient a Pedal Arm (12) as shown. While a sec-
ond person holds the front end of the Right Pivot
Arm (51) inside the bracket on the Pedal Arm,
insert the Short Pedal Arm Axle (115) through
both parts.
Tighten another M8 x 16mm Screw (102) and
an M8 x 23mm x 1.5mm Washer (91) a few
turns into the Short Pedal Arm Axle (115). Then,
tighten both Screws at the same time.
Repeat this step on the other side of the
elliptical.
13. Identify the Right Pedal (14) and orient it as
shown.
Attach the Right Pedal (14) to the right Pedal
Arm (12) with three M8 x 50mm Screws (112).
Attach the Left Pedal (not shown) to the left
Pedal Arm (12) in the same way.
