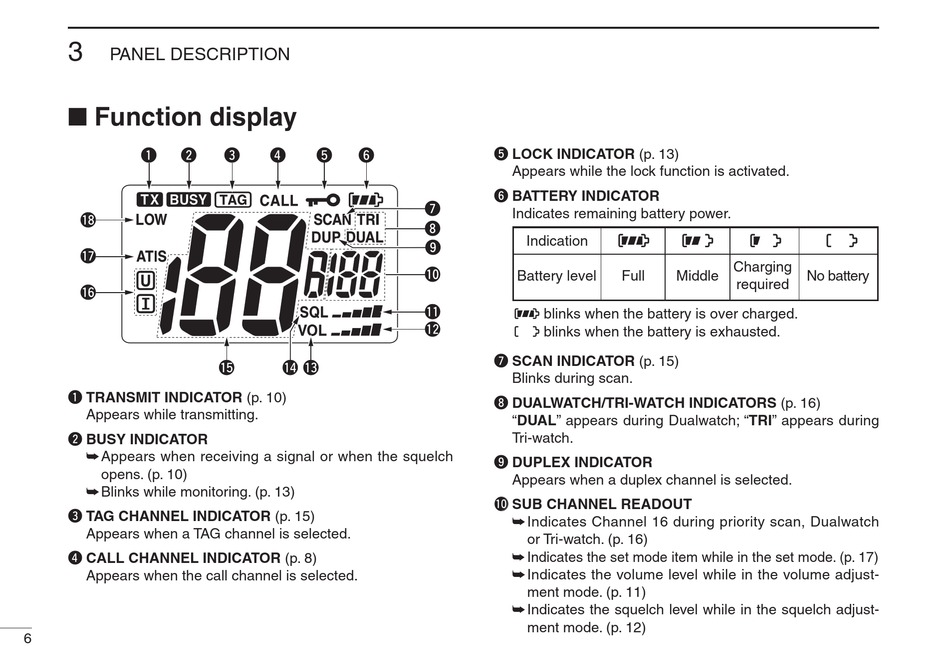

PANEL DESCRIPTION

■ Function display

q w
!8
!7
!6
q TRANSMIT INDICATOR (p. 10)
Appears while transmitting.
w BUSY INDICATOR
➥ Appears when receiving a signal or when the squelch
opens. (p. 10)
➥ Blinks while monitoring. (p. 13)
e TAG CHANNEL INDICATOR (p. 15)
Appears when a TAG channel is selected.
r CALL CHANNEL INDICATOR (p. 8)
Appears when the call channel is selected.
6
e r t y
!5 !4 !3
t LOCK INDICATOR (p. 13)
Appears while the lock function is activated.
y BATTERY INDICATOR
u
Indicates remaining battery power.
i
Indication
o
!0
Battery level
!1
blinks when the battery is over charged.
!2
blinks when the battery is exhausted.
u SCAN INDICATOR (p. 15)
Blinks during scan.
i DUALWATCH/TRI-WATCH INDICATORS (p. 16)
"DUAL" appears during Dualwatch; "TRI" appears during
Tri-watch.
o DUPLEX INDICATOR
Appears when a duplex channel is selected.
!0 SUB CHANNEL READOUT
➥ Indicates Channel 16 during priority scan, Dualwatch
or Tri-watch. (p. 16)
➥ Indicates the set mode item while in the set mode. (p. 17)
➥ Indicates the volume level while in the volume adjust-
ment mode. (p. 11)
➥ Indicates the squelch level while in the squelch adjust-
ment mode. (p. 12)
Charging
Full Middle
required
No battery
