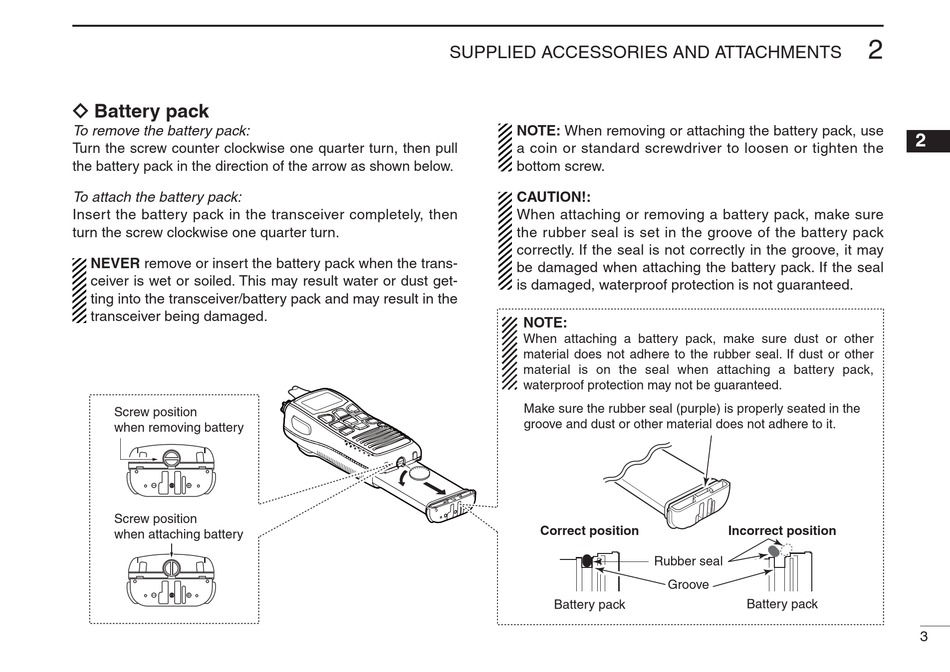

Supplied Accessories And Attachments - Icom IC-M35 Instruction Manual

ï Battery pack
To remove the battery pack:
Turn the screw counter clockwise one quarter turn, then pull
the battery pack in the direction of the arrow as shown below.
To attach the battery pack:
Insert the battery pack in the transceiver completely, then
turn the screw clockwise one quarter turn.
NEVER remove or insert the battery pack when the trans-
ceiver is wet or soiled. This may result water or dust get-
ting into the transceiver/battery pack and may result in the
transceiver being damaged.
Screw position
when removing battery
Screw position
when attaching battery

SUPPLIED ACCESSORIES AND ATTACHMENTS

NOTE: When removing or attaching the battery pack, use
a coin or standard screwdriver to loosen or tighten the
bottom screw.
CAUTION!:
When attaching or removing a battery pack, make sure
the rubber seal is set in the groove of the battery pack
correctly. If the seal is not correctly in the groove, it may
be damaged when attaching the battery pack. If the seal
is damaged, waterproof protection is not guaranteed.
NOTE:
When attaching a battery pack, make sure dust or other
material does not adhere to the rubber seal. If dust or other
material is on the seal when attaching a battery pack,
waterproof protection may not be guaranteed.
Make sure the rubber seal (purple) is properly seated in the
groove and dust or other material does not adhere to it.
Correct position
Battery pack
Incorrect position
Rubber seal
Groove
Battery pack
