8

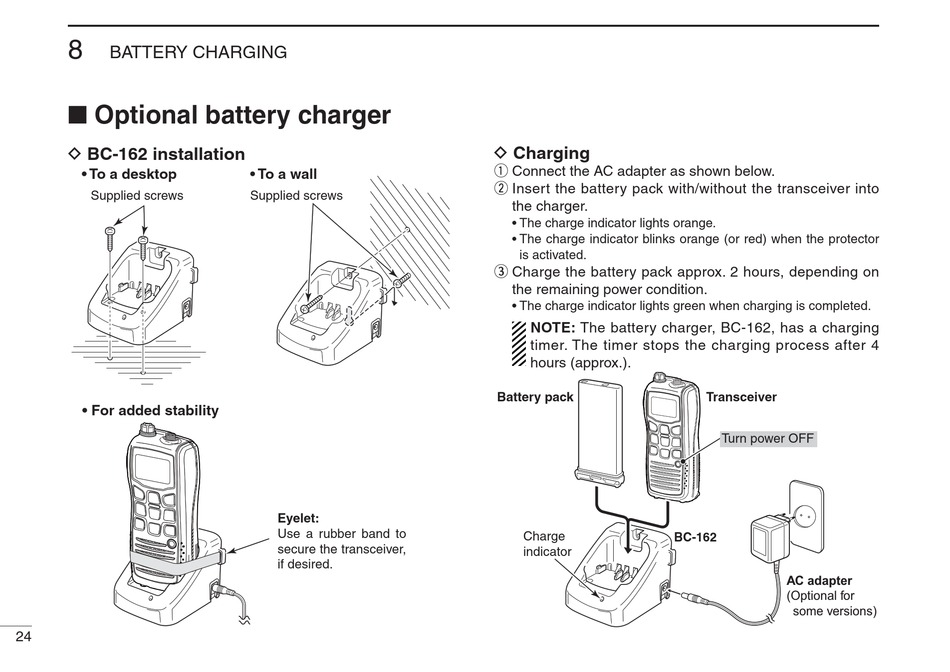

BATTERY CHARGING

■ Optional battery charger

D BC-162 installation
• To a desktop
Supplied screws
• For added stability
24
• To a wall
Supplied screws
Eyelet:
Use a rubber band to
secure the transceiver,
if desired.
D Charging
q Connect the AC adapter as shown below.
w Insert the battery pack with/without the transceiver into
the charger.
• The charge indicator lights orange.
• The charge indicator blinks orange (or red) when the protector
is activated.
e Charge the battery pack approx. 2 hours, depending on
the remaining power condition.
• The charge indicator lights green when charging is completed.
NOTE: The battery charger, BC-162, has a charging
timer. The timer stops the charging process after 4
hours (approx.).
Battery pack
Charge
BC-162
indicator
Transceiver
Turn power OFF
AC adapter
(Optional for
some versions)
