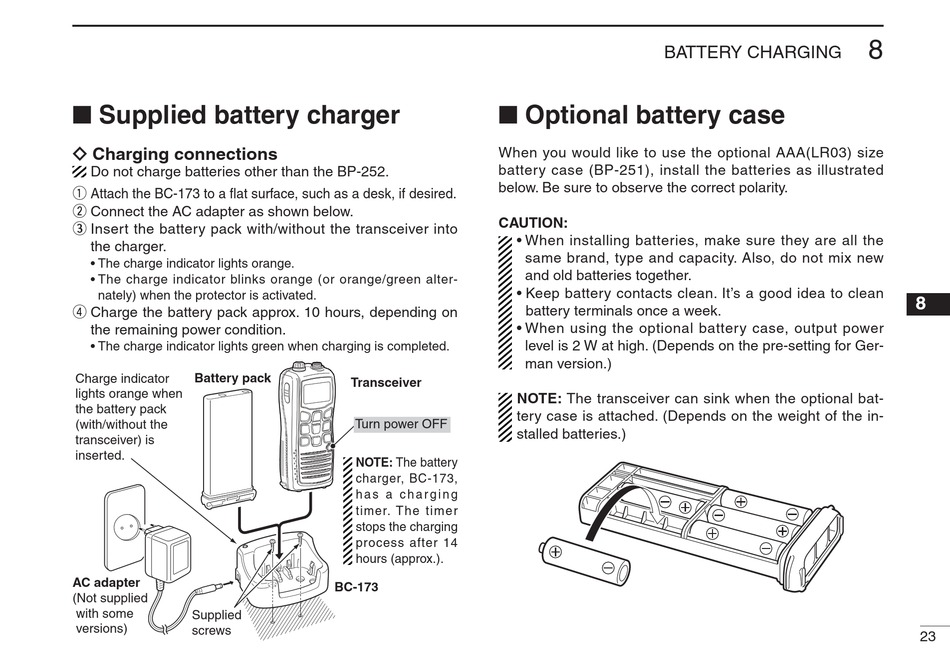

■ Supplied battery charger

ï Charging connections
Do not charge batteries other than the BP-252.
q Attach the BC-173 to a fl at surface, such as a desk, if desired.
w Connect the AC adapter as shown below.
e Insert the battery pack with/without the transceiver into
the charger.
• The charge indicator lights orange.
• The charge indicator blinks orange (or orange/green alter-
nately) when the protector is activated.
r Charge the battery pack approx. 10 hours, depending on
the remaining power condition.
• The charge indicator lights green when charging is completed.
Charge indicator Battery pack
lights orange when
the battery pack
(with/without the
transceiver) is
inserted.
AC adapter
(Not supplied
with some
Supplied
versions)
screws

■ Optional battery case

When you would like to use the optional AAA(LR03) size
battery case (BP-251), install the batteries as illustrated
below. Be sure to observe the correct polarity.
CAUTION:
Transceiver
Turn power OFF
NOTE: The battery
charger, BC-173,
h a s a c h a r g i n g
timer. The timer
stops the charging
process after 14
hours (approx.).
BC-173
BATTERY CHARGING
• When installing batteries, make sure they are all the
same brand, type and capacity. Also, do not mix new
and old batteries together.
• Keep battery contacts clean. It's a good idea to clean
battery terminals once a week.
• When using the optional battery case, output power
level is 2 W at high. (Depends on the pre-setting for Ger-
man version.)
NOTE: The transceiver can sink when the optional bat-
tery case is attached. (Depends on the weight of the in-
stalled batteries.)
