Each Remote Control connector includes eleven logic inputs, eleven logic
outputs, an analog gain control input, a +5 V supply capable of providing up
to 500 mA, and a logic ground. Internal to the SoundStructure device is a fuse
that will trigger if the current draw on Pin 1 exceeds 500 mA. The fuse will
reset itself once the excessive load is removed.
As there are two logic connectors, there are a total of twenty-two logic inputs,
twenty-two logic outputs, two analog gain inputs, and two +5 V supplies and
two logic grounds per SoundStructure device. The pinouts and signal

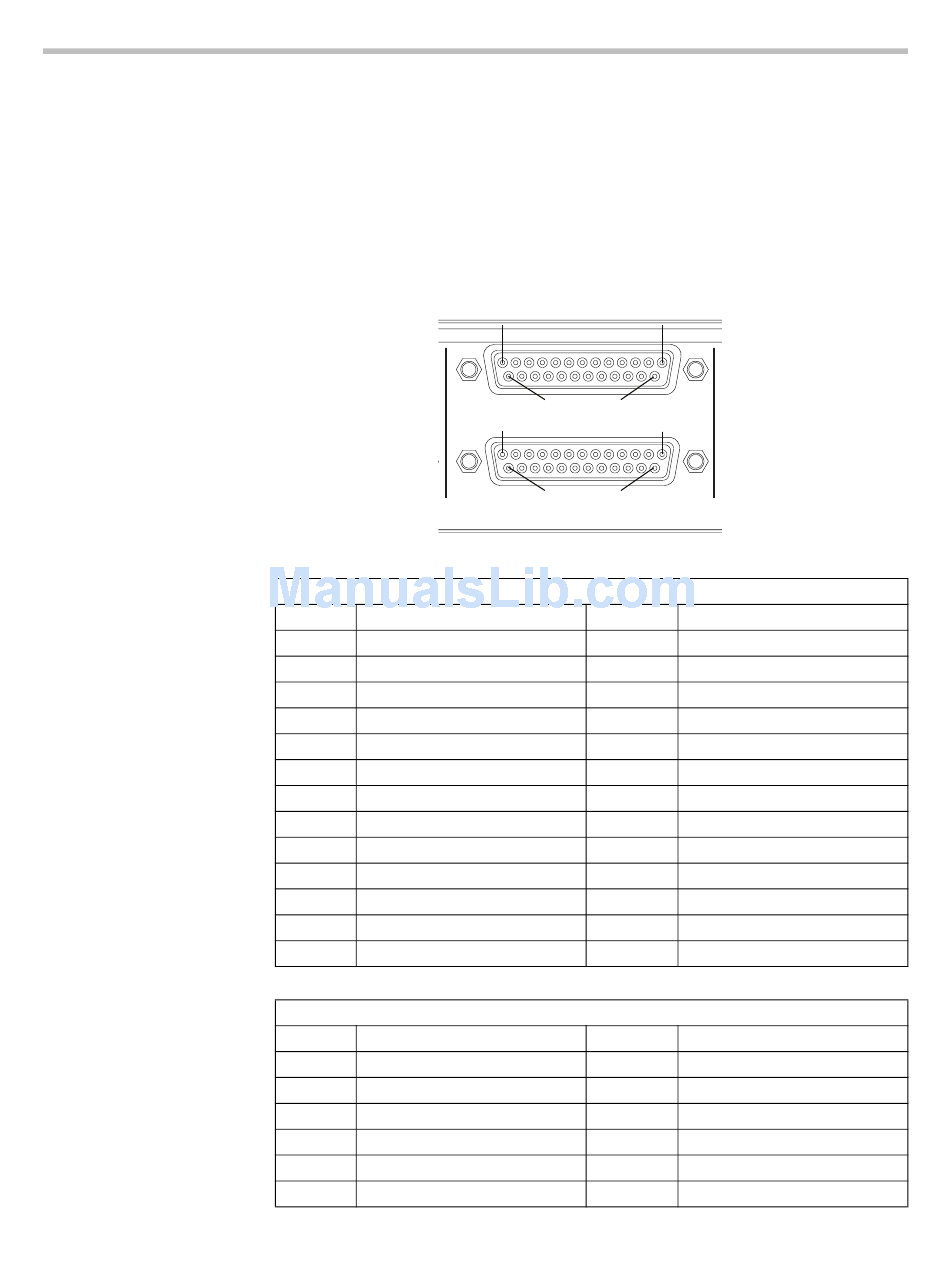

definition are shown in the following figures.
Pin Signal
1 +5 V
2 Logic Output 1
3 Logic Output 2
4 Logic Output 3
5 Logic Output 4
6 Logic Output 5
7 Logic Output 6
8 Logic Output 7
9 Logic Output 8
10 Logic Output 9
11 Logic Output 10
12 Logic Output 11
13 Analog Gain 1
Pin Signal
1 +5 V
2 Logic Output 12
3 Logic Output 13
4 Logic Output 14
5 Logic Output 15
6 Logic Output 16
Installing The SoundStructure C16, C12, C8, And SR12
Pin 13
Pin 1
Pin 25 Pin 14
REMOTE CONTROL 1
Pin 13 Pin 1
Pin 25 Pin 14
REMOTE CONTROL 2
Remote Control 1
Pin
14
15
16
17
18
19
20
21
22
23
24
25
Remote Control 2
Pin
14
15
16
17
18
19
Signal
Logic Input 1
Logic Input 2
Logic Input 3
Logic Input 4
Logic Input 5
Logic Input 6
Logic Input 7
Logic Input 8
Logic Input 9
Logic Input 10
Logic Input 11
Ground
Signal
Logic Input 12
Logic Input 13
Logic Input 14
Logic Input 15
Logic Input 16
Logic Input 17
2 - 17
