Hardware Installation Guide for the Polycom SoundStructure C16, C12, C8, And SR12
LAN
LAN
2 - 12
the device with no OBAM OUT connection. The device ID is important for
ensuring that a system is cabled properly so that it matches the configuration
that will be uploaded to the system.

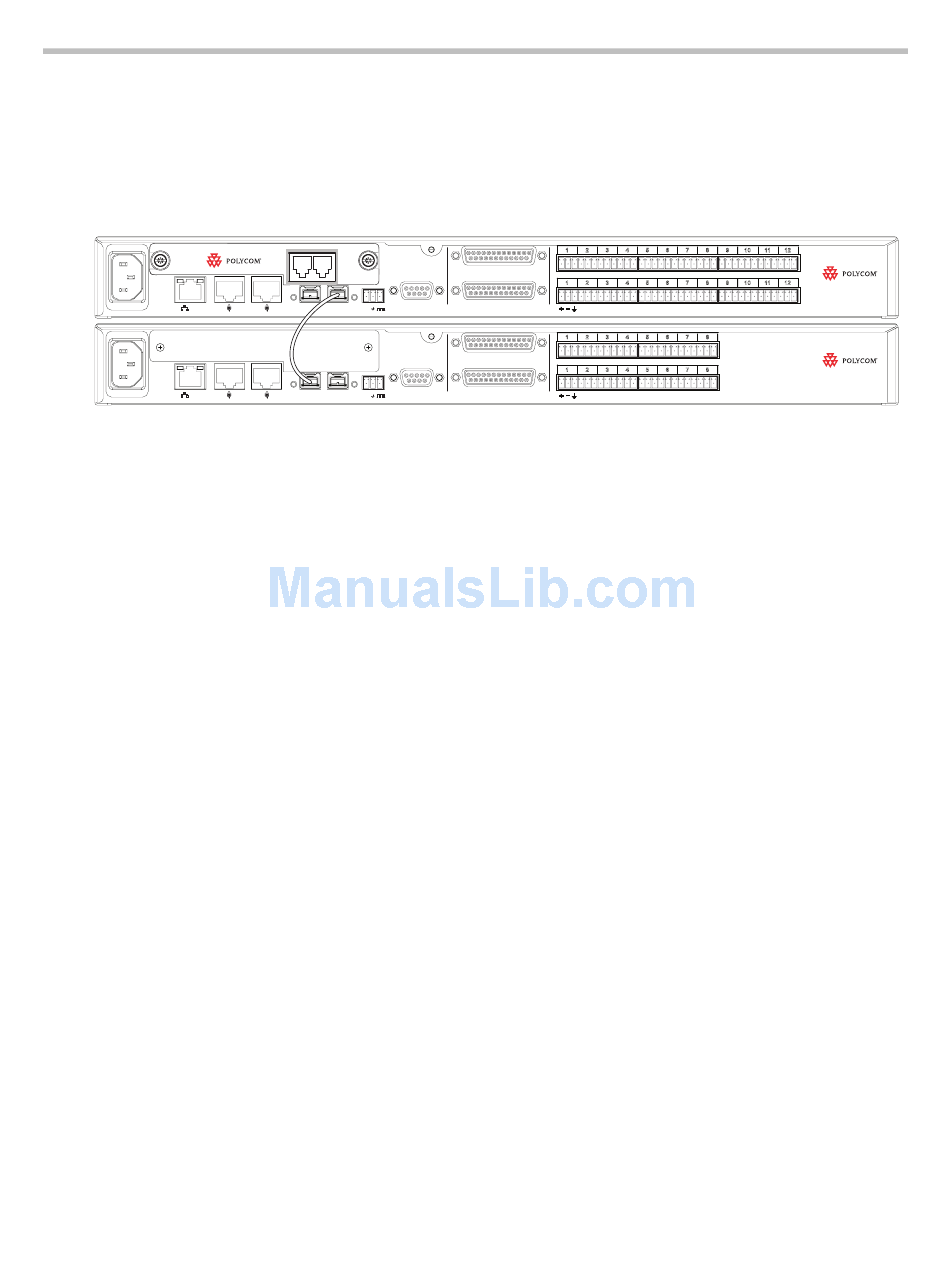

As an example, consider the following figure that shows a SoundStructure C12
linked with a C8.
PHONE
LINE
PIN 2: TXD
PIN 3: RXD
PIN 5: GROUND
PIN 7: CTS
PIN 8: RTS
RS-232
IR
C-LINK2
OBAM
IN
OUT
12V
PIN 2: TXD
PIN 3: RXD
PIN 5: GROUND
PIN 7: CTS
PIN 8: RTS
RS-232
C-LINK2
OBAM
IR
IN
OUT
12V
The SoundStructure Studio software can be used to create a design that will be
uploaded into the devices. In this example, the configuration file requires
devices to be linked together with the C12 as the first device (device ID 1) and
the C8 as the second device (device ID 2). The wiring report summarizes the
cabling connections for the input and output signals. A typical wiring report
generated for the SoundStructure devices is shown in the following text.
This wiring report shows the signal connections to both the SoundStructure
C12 at device ID 1, and the SoundStructure C8 at device ID 2. The report also
indicates a telephony interface is plugged into the C12 and a Polycom HDX
video codec is connected via the C-Link2 interface to the C12. This report also
summarizes how the individual inputs and outputs should be connected to
the rear-panel of the SoundStructure devices, for instance Table Mic 1 should
be connected to input 1 on the SoundStructure C12.
SoundStructure system: New SoundStructure
C12 (bus id: 1)
C-Series Mic Input
1: Table Mic 1
2: Table Mic 2
3: Table Mic 3
4: Table Mic 4
5: Table Mic 5
6: Table Mic 6
7: Table Mic 7
8: Table Mic 8
9: Table Mic 9
10: Table Mic 10
11: Table Mic 11
12: Table Mic 12
C-Series Line Output
1: Amplifier 1 (Left)
2: Amplifier 1 (Right)
3: Amplifier 2 (Left)
1
2
3
4
5
REMOTE CONTROL 1
1
2
3
4
5
REMOTE CONTROL 2
1
2
3
4
5
REMOTE CONTROL 1
1
2
3
4
5
REMOTE CONTROL 2
6
7
8
9
10
11
12
OUTPUTS
6
7
8
9
10
11
12
SoundStructure C12
INPUTS
6
7
8
OUTPUTS
6
7
8
SoundStructure C8
INPUTS
TM
TM
