standard 8P8C crimping tools. Note that the maximum length between the
Polycom HDX video conferencing system and the SoundStructure device is
one hundred feet (30m).
To connect optional Polycom HDX microphones to a SoundStructure device,
connect the Polycom HDX microphone cable adapter to the right CLink2 port
(when viewed from the rear) of the SoundStructure device and connect the

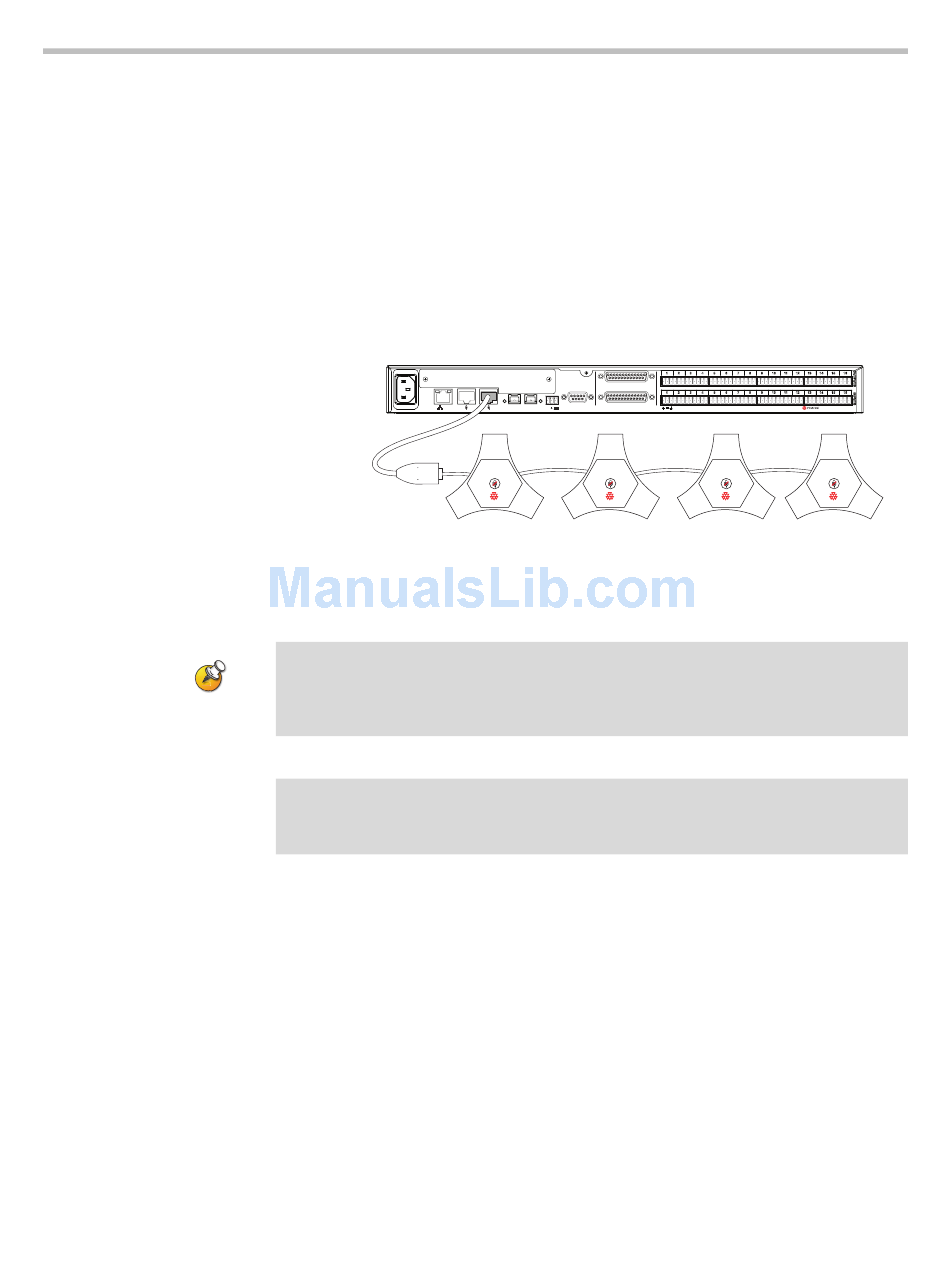

Polycom HDX microphone cable to the cable adapter as shown in the
following figure. Chapter 6 of SoundStructure Design Guide has additional
information on how to use the HDX microphones with SoundStructure.
Connect any HDX microphones to the right Conference Link2 port (when facing the
rear panel).
Warning
Connect the Polycom HDX video conference system to the left Conference Link2
port (when facing the rear panel).
Warning
Do not use Conference Link2 to connect multiple SoundStructure devices together.
The OBAM link (when enabled with version 1.2.0 firmware) may be used for
connecting multiple SoundStructure devices.
Installing The SoundStructure C16, C12, C8, And SR12
PIN 2: TXD
PIN 3: RXD
PIN 5: GROUND
PIN 7: CTS
PIN 8: RTS
REMOTE CONTROL 1
RS-232
REMOTE CONTROL 2
LAN
C-LINK2
OBAM
IR
IN
OUT
12V
POLYCOM
POLYCOM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
SoundStructure C16
TM
POLYCOM
POLYCOM
2 - 9
