Ultra Start 640 Series Install Manual

Advanced remote vehicle security systems
Hide thumbs Also See for 640 Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
INSTALL GUIDE
Rev. 2006.02
Advanced Remote Vehicle Security Systems
www.ultrastarters.com
Technical Support- 866.698.5872
FCC/ID Notice
This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions:
1. This device may not cause harmful interference, and
2.This device must accept any interference received, including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the part responsible for compliance void the
user's authority to operate this devise.

Advertisement

Table of Contents
loading

Related Manuals for Ultra Start 640 Series

Summary of Contents for Ultra Start 640 Series

  • Page 1 INSTALL GUIDE Rev. 2006.02 Advanced Remote Vehicle Security Systems www.ultrastarters.com Technical Support- 866.698.5872 FCC/ID Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions: 1. This device may not cause harmful interference, and 2.This device must accept any interference received, including interference that may cause undesired operation.

  • Page 2: Table Of Contents

    INSTALL GUIDE PAGE 2 Table of Contents Table of Contents Page 2 Components Page 3 This Model Covers the Following Series System Service Mode (Valet) Installation Tips Page 4 Mounting The Module Install the Antenna Connecting The Starter Disable Connecting The Dome Light Supervision Mounting The Siren Wire Connectors Pages 5-6...

  • Page 3: Components

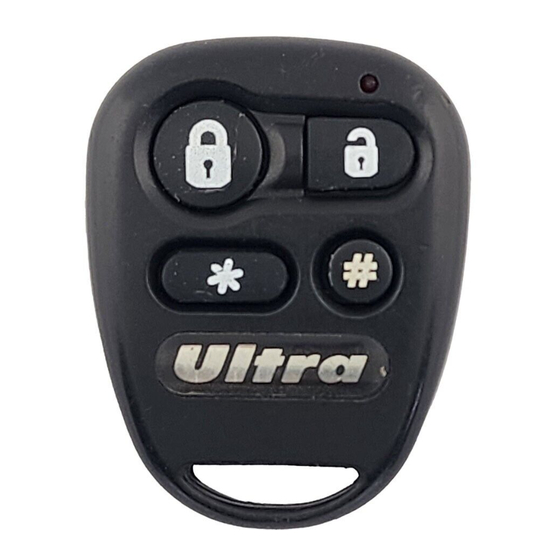

    - One 2way Transmitter (660/670 series) - One 3 Button FM 1way Transmitter (670 series) - Two 4 Button AM 1way Transmitters (640 series, Only 1 with 660 series) - Two 6 Button AM 1way Transmitter (606 series) - Antenna With Integrated LEDs and Program/Valet Switch...

  • Page 4: Mounting The Module

    INSTALL GUIDE PAGE 4 Recommended Installation Procedures Before Staring the Installation: - Discuss the optional system features with the customer. - Take a few minutes to review the installation and owners manuals. - Do a walk around the vehicle and check for any damage. Mounting the Module Never mount the module in the engine compartment.

  • Page 5: Wire Connectors Pages

    INSTALL GUIDE PAGE 5 Wiring Diagram Built-in Starter Disable Relay (Normally Connected 87a & 30) 3amp (+) Siren Siren Output (+) Brown 500ma Channel 4 Pink Programmable 500ma Horn/ Channel 5 Wht/Blue Programmable Main Power Constant Power (+) Input Chassis Ground (-) Input Ground Black...
  • Page 6 INSTALL GUIDE PAGE 6 2 Pin Connector (Brown wire with female connectors) Starter Disable harness. See page 4 for installation instructions 14 Pin Connector Brown (+) Siren Output Positive output for siren* Pink Channel 4 Output Programmable - See menu 2** Wht/Blue Channel 5 Output Programmable - See menu 2***...

  • Page 7: Plug In The Module

    INSTALL GUIDE PAGE 7 Quick Start Install Step 1 - Connect All Of the Following Wires 14 Pin Power Connector Black Ground Input System ground input. Yellow Ignition Input Input from vehicles ignition wire. Main Power Input Constant power input. White (+) Park lights Programmable - menu 2, setting 3.

  • Page 8: System Reset

    INSTALL GUIDE PAGE 8 System Reset STEP 1 - Within three seconds turn the key ON-OFF-ON-OFF-ON (Leave the Key ON). STEP 2 - Press and release the Program Button. STEP 3 - Park Lights will come ON STEP 4 - Press the Program Button a second time and hold for 8 seconds until the park lights flash 3 times and siren chirps 3 times.

  • Page 9: Programming Pages

    INSTALL GUIDE PAGE 9 Programming Overview Program mode allows you to adjust the settings and options of your system. Your system has been intelligently designed by installers with years of experience. The system’s default settings do not require any program changes in most cases.
  • Page 10 INSTALL GUIDE PAGE 10 Menu 1 - User Settings Setting 1- Ignition Auto Lock 1 Ignition Lock & Unlock Enabled 1 Light Flash Doors Lock/Unlock when the key is turned On/Off 2 Ignition Lock Only 2 Light Flashes Doors Lock when ignition key is turned ON only 3 Ignition Auto Lock Disabled 3 Light Flashes Doors do not Lock or Unlock with Ignition key Press the Program Switch 1 time to select setting 1 (This will be confirmed by 1 LED flashes)
  • Page 11 INSTALL GUIDE PAGE 11 Menu 2- Alarm Settings Setting 1 - Car Finder/ 5th Channel 1 Car Finder OFF 1 Light Flash Car Finder Mode Disabled *2 Car Finder ON 2 Light Flashes Car Finder Mode activated when button is held. Press the Program Switch 1 time to select setting 1 (This will be confirmed by 1 LED flashes) Press and hold the Program Switch until you receive the appropriate # of park light flashes and/or siren chirps.
  • Page 12 INSTALL GUIDE PAGE 12 Menu 2- Alarm Settings continued... Setting 5 - 4th Channel Settings (640/660/670) (606) 1 Pulsed Output 1 Flash Pulsed for 0.75 seconds upon 4th Channel Activation 2 Latched Output 2 Flashes Latched until repeated or ignition “ON” *3 Active Output 3 Flashes Active for as long as the button is held on Transmitter.

  • Page 13: Anti Car Jacking Mode

    INSTALL GUIDE PAGE 13 Anti Car Jacking Mode Only program this feature if it specifically requested by the customer. Ensure that user is fully trained on the operation of this feature. When car jack mode is activated the system will no longer respond to the remote transmitters.

  • Page 14: Transmitter Programming

    INSTALL GUIDE PAGE 14 Transmitter Programming Step 1 - Within three seconds turn the ignition ON-OFF-ON-OFF-ON Leaving ON. Step 2 - Press and hold the Program Switch - Parking Lights will come ON **if park-lights do not come on at this point, turn key off for 5 seconds, then repeat step 1.
  • Page 15 INSTALL GUIDE PAGE 15 Dome Light Supervision (Positive or Negative) *IMPORTANT: Test vehicles dome light system for proper output) Ground (negative) / +12V (positive) Black/White Dome Light Supervision Output...

  • Page 16: Diagnostics

    INSTALL GUIDE PAGE 16 Diagnostics If the alarm system is triggered while armed, the system will retain in memory the cause of the trigger. The diagnostics can then be used to determine what the cause of the trigger was. When disarming the alarm, the siren/horn will chirp 3 times instead of the usual 2 times to indicate the alarm had been triggered.

This manual is also suitable for:

660 series670 series606 series
