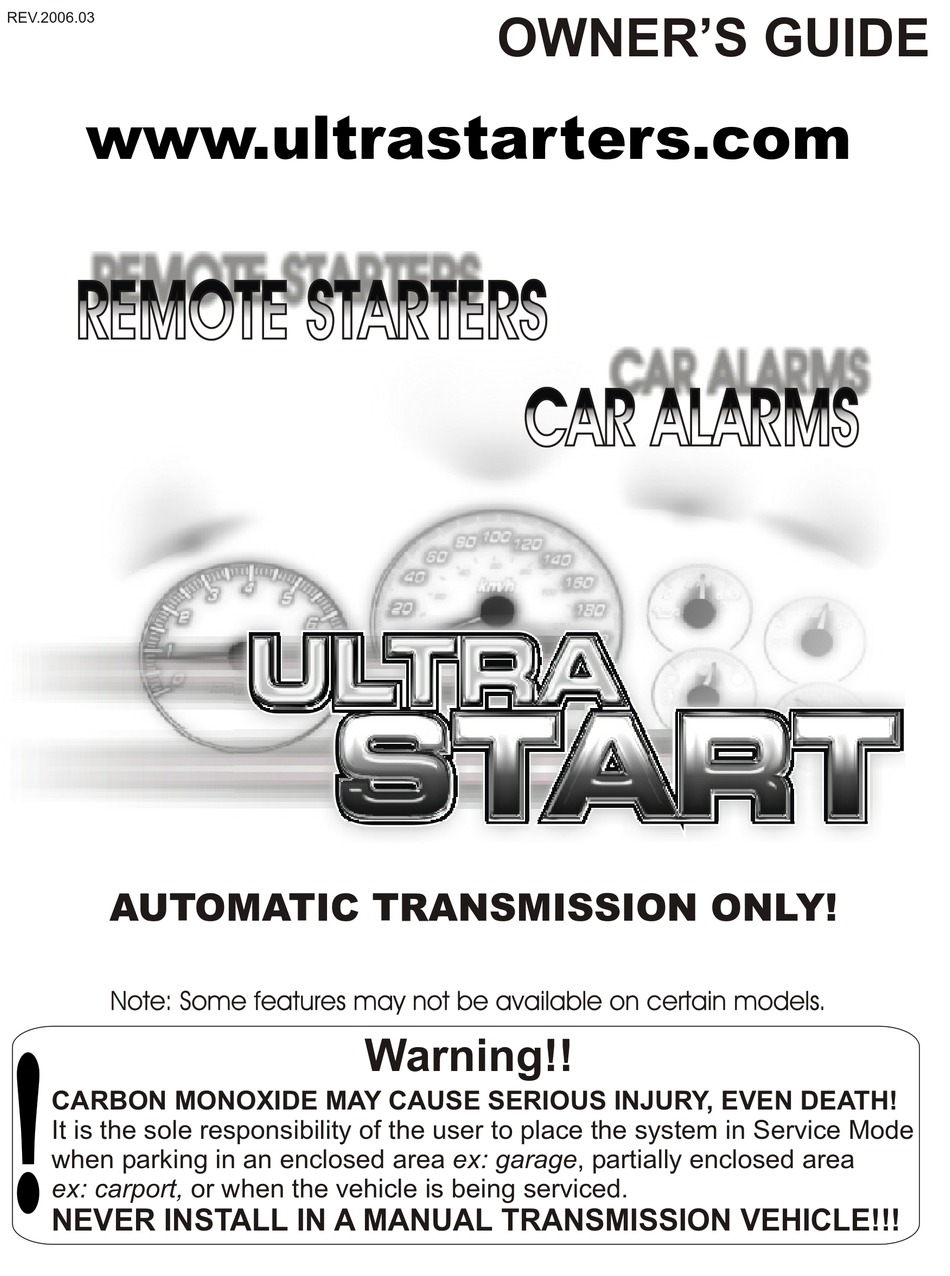

REV.2006.03
www.ultrastarters.com
AUTOMATIC TRANSMISSION ONLY!
The system must be placed into Service Mode before any service work
CARBON MONOXIDE MAY CAUSE SERIOUS INJURY, EVEN DEATH!
is started on the vehicle. It is the sole responsibility of the vehicle owner
It is the sole responsibility of the user to place the system in Service Mode
to ensure that this is done. The manufacturer accepts no liability or
when parking in an enclosed area ex: garage, partially enclosed area
responsibility for accidental starting of the vehicle.
ex: carport, or when the vehicle is being serviced.
CARBON MONOXIDE - Never Start in an Enclosed Building (Garage,
NEVER INSTALL IN A MANUAL TRANSMISSION VEHICLE!!!
OWNER'S GUIDE
Warning!!

Advertisement

Table of Contents
loading

Summary of Contents for Ultra Start 1270

  • Page 1 REV.2006.03 OWNER’S GUIDE www.ultrastarters.com AUTOMATIC TRANSMISSION ONLY! Warning!! The system must be placed into Service Mode before any service work CARBON MONOXIDE MAY CAUSE SERIOUS INJURY, EVEN DEATH! is started on the vehicle. It is the sole responsibility of the vehicle owner It is the sole responsibility of the user to place the system in Service Mode to ensure that this is done.
  • Page 2: Table Of Contents

    OWNER’S GUIDE PAGE 2 Table Of Contents Table Of Contents Page 2 This Guide Covers... Page 3 Welcome Feature List Safety Page 4 Remote Transmitters & Antenna Page 5 Remote Starter Functions Page 6 Remote Starting Extended Runtime Remote Stop Idle Mode Turbo Timer Mode Other Notes...
  • Page 3: This Guide Covers

    OWNER’S GUIDE PAGE 3 This Guide Covers The Following Systems: 1270 - 2270 - 3265 - 3270 - 4265 - 4270. About Ultra Start It is our continuing objective to design and manufacture the absolute best Remote Car Starters, Vehicle Security Systems, Keyless Entry Systems and Security Bypass units available in today’s competitive...
  • Page 4: Safety

    OWNER’S GUIDE PAGE 4 Safety VERY IMPORTANT SAFETY NOTES! The owner/user MUST INSTALL a CARBON MONOXIDE DETECTOR in the living area near to where the vehicle is being stored or parked. It is the sole responsibility of the owner/user to keep the remote transmitters away from the reach of children and handle with care so that the system does not unintentionally start.
  • Page 5: Remote Transmitters & Antenna

    OWNER’S GUIDE PAGE 5 2-WAY LED 2-WAY LCD...
  • Page 6: Remote Starter Functions

    OWNER’S GUIDE PAGE 6 Remote Star ter Functions Remote Starting (if remote start fails to start see page 19) 1. Press and release the button. 2. The park lights will flash and the siren* or horn (optional) will chirp once to confirm.
  • Page 7: Other Notes

    OWNER’S GUIDE PAGE 7 Other Notes:...
  • Page 8: Optional Features

    OWNER’S GUIDE PAGE 8 Remote Transmitter Functions Arm/ Lock (optional) 1. Press and release the button. 2. The park lights will flash and the siren* or horn (optional) will chirp one time. 3. The system will arm and doors will lock (optional). NOTE: The LEDs on the antenna will start flashing within five seconds.
  • Page 9 3. Press and release the or the button to deactivate. NOTE: Panic will be active for 60 seconds or until deactivated by the remote transmitter. *1270 and 2270 series ONLY. **Not available on the 3265 and 4265 series. ***Alarm series ONLY!
  • Page 10: Timer Mode

    OWNER’S GUIDE PAGE 10 Timer Mode Timer Mode will start the vehicle at a user selectable start interval. The vehicle can be set to start once every 2, 3 or 4 hours, for a maximum of 12 starts. The vehicle will start at the selected start interval and run for the programmed runtime*.
  • Page 11: Remote Transmitter Learn

    “UNLOCK” the remote transmitter the button must be pressed simultaneously with the function chosen. 2nd Car* function allows the operation of two Ultra Start systems (in two separate vehicles) with one remote transmitter. Example: Press and release simultaneously to remote start.
  • Page 12: Se Rvice Mode

    OWNER’S GUIDE PAGE 12 System Service Mode (Valet Mode) System Service Mode will disable the remote starter. This will only effect the remote start portion of the system. The optional lock, unlock and trunk release features will still be operational. When the vehicle is to have any under hood or service work done, the system must be placed into Service Mode.
  • Page 13: Lcd Display

    OWNER’S GUIDE PAGE 13 LCD DISPLAY 3265/4265 series These icon’s display the current status of the system. The icons may not all be present on the screen at all times, certain icons will only turn on when a feature is activated. STATUS ICON’S PROGRAMMABLE ICON’S STATUS CHECK MODE...
  • Page 14 OWNER’S GUIDE PAGE 14 LCD DISPLAY 3265/4265 series RUN TIMER- This icon activates during remote starting. The bar graph will count down in 2 minute increments, indicating how much time is left on the remote starter’s runtime. NOTE: At rest four bars will scan back and fourth. EXHAUST and WHEEL’S- These icons activate during remote starting.
  • Page 15 OWNER’S GUIDE PAGE 15 LCD DISPLAY 3265/4265 series TRUNK ICON- This icon indicates that the trunk has been opened. SIREN and LOCK ICONS*- These icons indicate that the alarm has been triggered by the door, hood or ignition inputs. SIREN and HAMMER ICONS*- These icons indicate that the alarm has been triggered by the shock sensor input.
  • Page 16: Setting The Time

    OWNER’S GUIDE PAGE 16 LCD DISPLAY 3265/4265 series Setting The Time Press and hold the buttons until the remote transmitter chimes and the minute portion of the clock begins to flash. To change from minutes to hours, press and release the button.
  • Page 17 OWNER’S GUIDE PAGE 17 LCD DISPLAY 3265/4265 series Programable Icons- The six squares found at the bottom of the display are user/dealer programmable (see page 16 to enter). TIMER ICON- When the vehicle starts in Timer Mode, this icon will appear in conjunction with the usual icons that indicate that the vehicle is running by the remote starter.
  • Page 18: Shock Sensor

    OWNER’S GUIDE PAGE 18 Shock Sensor- Alarm series ONLY! Shock Sensor Programming/ Adjustment To enter shock sensor programming: Press and hold the and the buttons for three seconds. The park lights will flash and the siren will three times. While the park lights are “ON”, strike the vehicle with the amount of force wanted to trigger the alarm.
  • Page 19: Diagnostics

    OWNER’S GUIDE PAGE 19 Diagnostics If the remote starter does not activate when the button is pressed the park lights will flash a diagnostic code to indicate what shutdown input has been triggered. PARK LIGHTS STATUS LED DIAGNOSTIC CODE 3 Slow Flashes LED’s On Solid System Is In Service Mode 4 Slow Flashes...
  • Page 20: Fcc Notice

    OWNER’S GUIDE PAGE 20 Limited Lifetime Warranty The manufacturer warrants to the original purchaser of their remote starters and alarms, that the product shall be free from defects in material and workmanship. However, should this product be proven to be defective, within a two year period from the original date of purchase, the manufacturer will, without charge to the purchaser (excluding any charges incurred to have the product delivered to the manufacturer), repair or replace any part of the remote starter and/or alarm which the manufacturer agrees to be defective.
