NordicTrack E4.1 Elliptical User Manual page 10

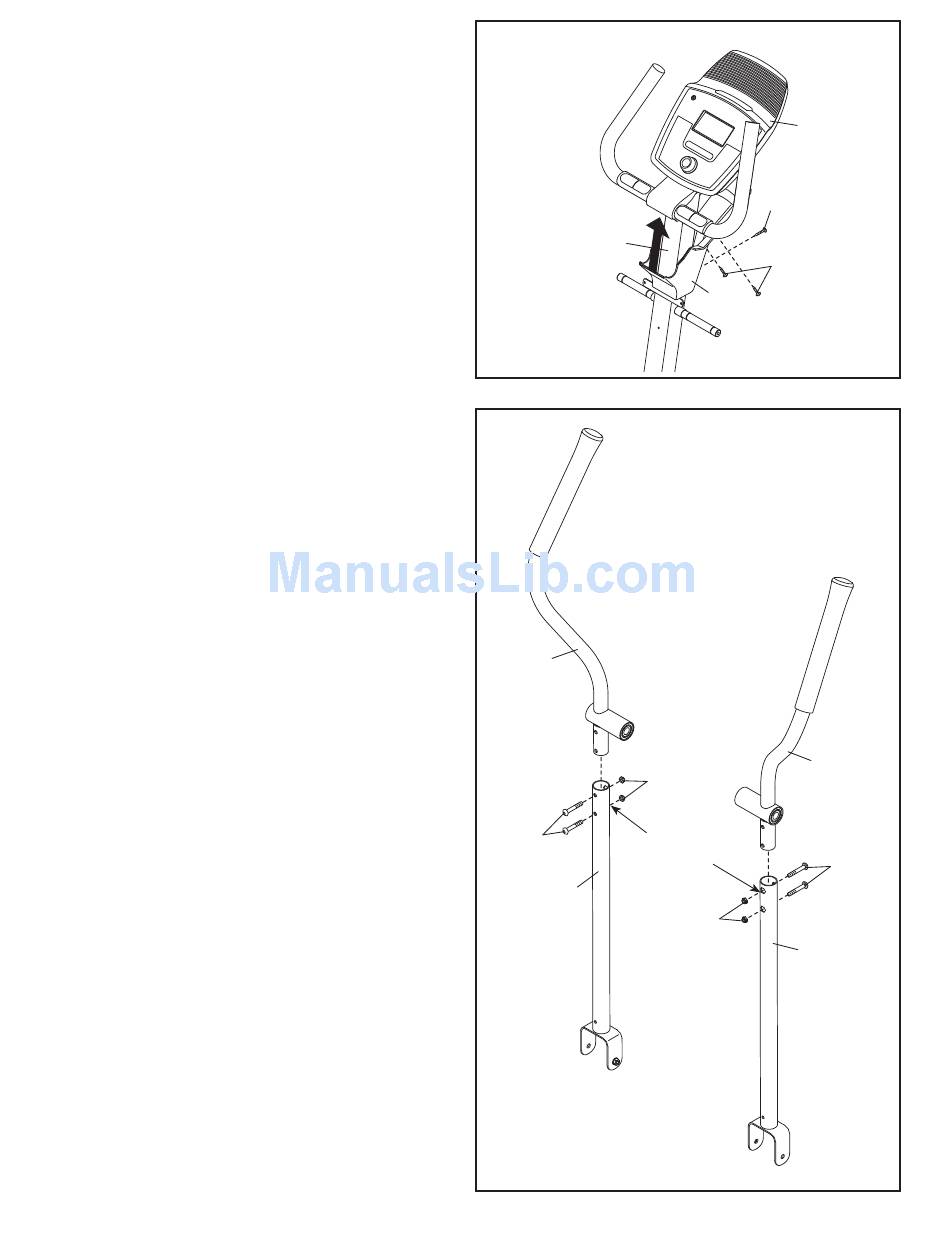

8. Slide the Console Cover (32) upward to the
Console (4).
Attach the Console Cover (32) to the Upright (2)
with an M4 x 16mm Screw (92).
Then, attach the Console Cover (32) to the
Console (4) with two M4 x 16mm Screws (92).
9. Identify the Left and Right Upper Body Arms
(8, 9).
Orient the Left Upper Body Arm (8) and an
Upper Body Leg (6) as shown. Make sure that
the hexagonal holes are in the indicated
location.
Insert the Left Upper Body Arm (8) into the
Upper Body Leg (6).
Attach the Left Upper Body Arm (8) with two M8
x 45mm Bolts (76) and two M8 Jam Nuts (77).
Make sure that the Jam Nuts are in the hex-
agonal holes. Do not tighten the Bolts yet.
Attach the Right Upper Body Arm (9) to the
other Upper Body Leg (6) in the same way.
8
2
9
8
76
6
10
4
92
92
32
9
77
Hexagonal
Holes
77
6
76
