GE Profile PT925 Technical Service Manual page 46

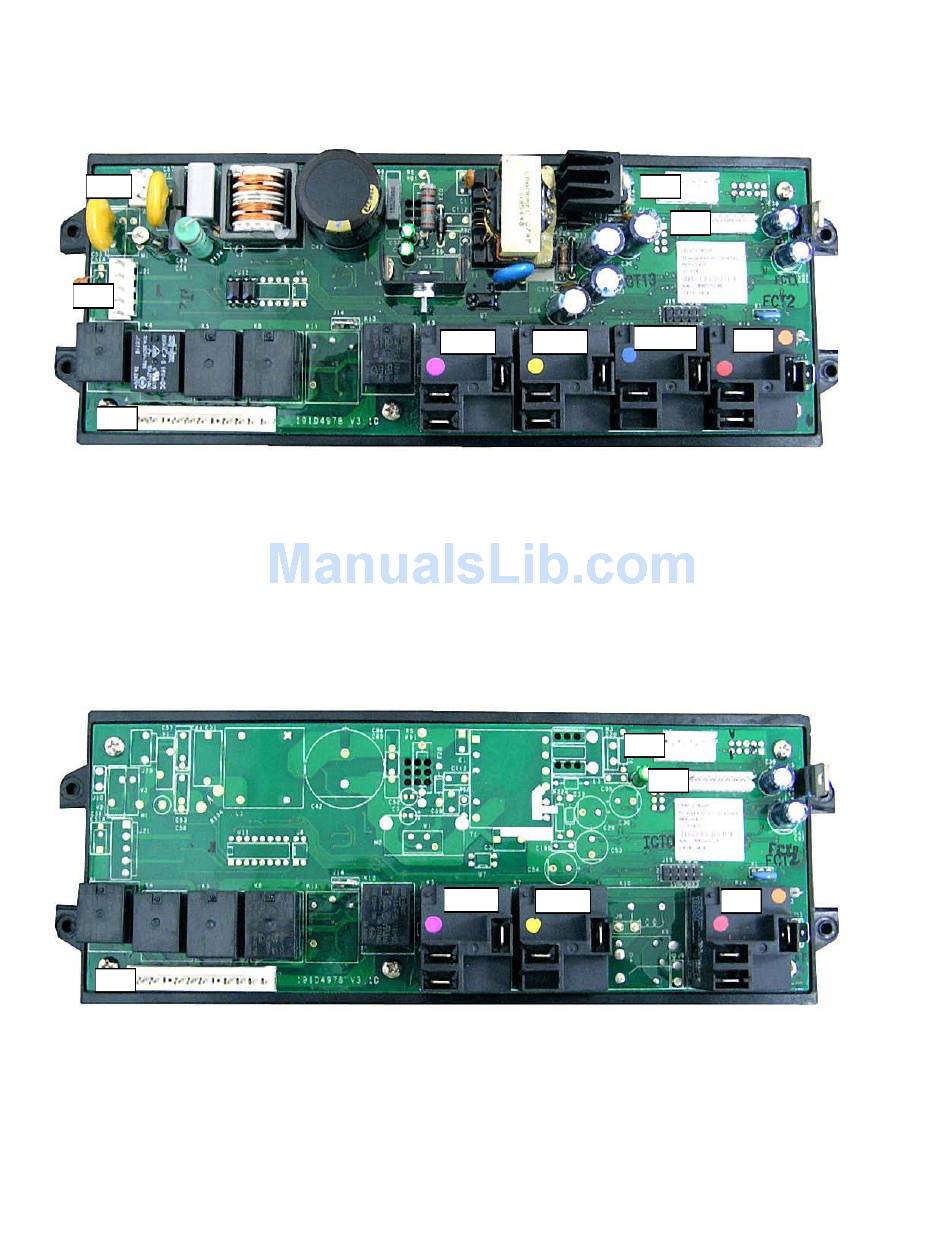

Relay Boards
Note: There is one relay board for each oven.
Lower Oven Relay Board
J20
J21
J7
J7 Lower Oven: Oven Light, CONVX Fan, Lock
Motor
J16 Lower Oven Door Lock, Sail Switch
J17 Communication Cable, Lower Oven Clean
Upper Oven Relay Board
J7
J7 Upper Oven: Oven Light, Cooling Fan, Lock
Motor
J16 Upper Oven Door Lock
Broil Bake
J20 Lower Oven and Upper Oven: Thermal Limit
Switches
J21 Lower Oven and Upper Oven: Door Switches
Broil
Bake
J17 Communication Cable, Upper Oven Clean
– 46 –
J16
J17
CONVX
DLB
J16
J17
DLB
