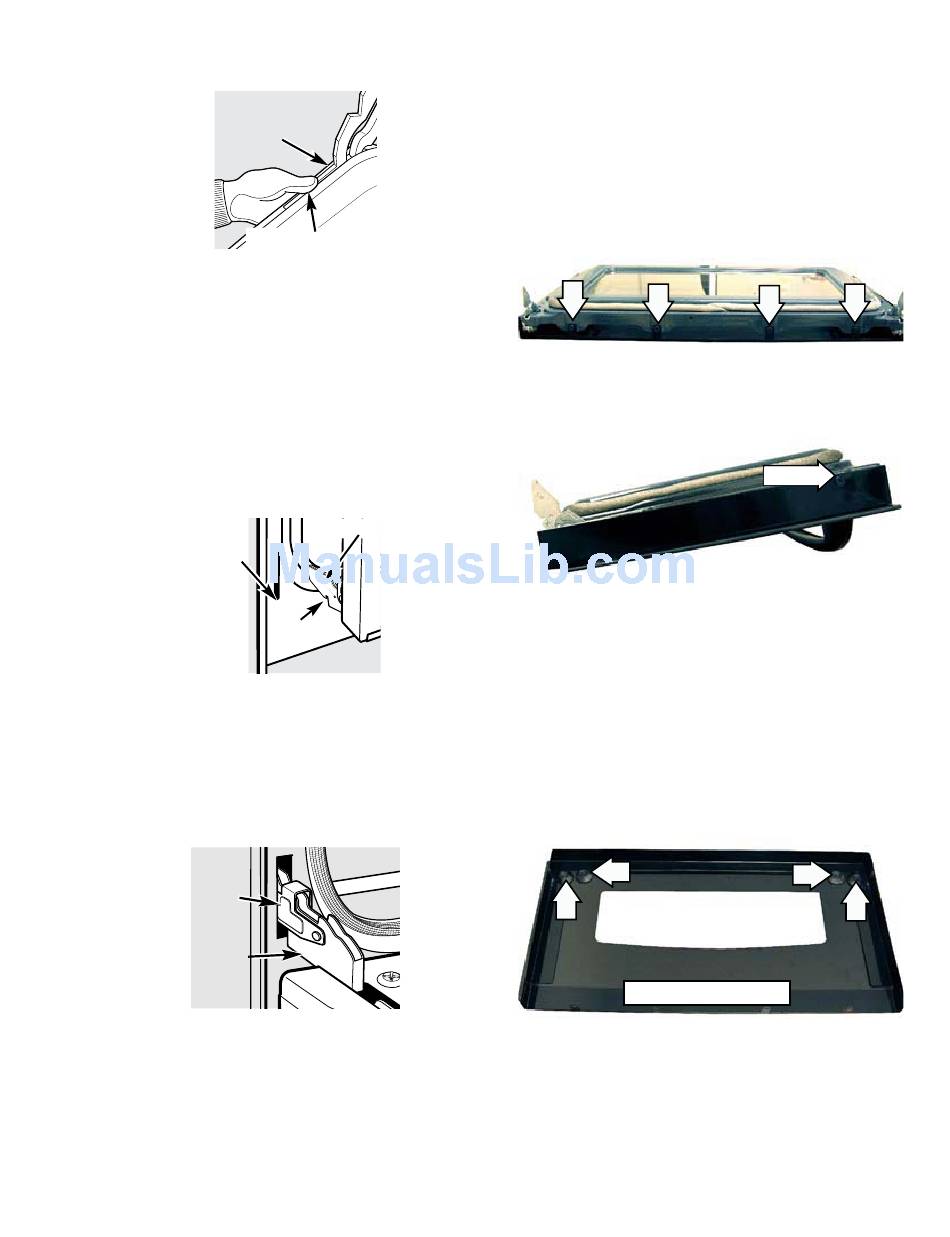

GE Profile PT925 Technical Service Manual page 29

7. On both sides of the door, press down on the
release buttons on each hinge.
Door
Frame
Release buttons
8. Lift the door up until it is clear of the hinge.
To replace the door:
1. Firmly grasp both sides of the door at the top.
2. With the door at the same angle as the removal
position, seat the indentation of the hinge arm
into the bottom edge of the hinge slot. The
notch in the hinge arm must be fully seated into
the bottom of the slot.
Bottom
edge
of slot
Indentation
3. Fully open the door. If the door will not fully
open, the indentation is not seated correctly in
the bottom edge of the slot.
4. Push the hinge locks up against the front frame
of the oven to the locked position.
Hinge
lock
Hinge
arm
5. Close the oven door.
Hinge arm
– 29 –
To remove the lower outer door assembly:
1. Remove the lower door. (See
2. Place the inner door assembly, gasket side up,
on a protective surface.
3. Remove the four T15 Torx screws from the
bottom of the outer door assembly.
4. Remove the two T15 Torx screws (1 on each
side) from the outer door assembly.
Note: The inner door assembly is heavier than the
outer door assembly.
5. Separate the inner door assembly from the
outer door assembly.
6. Remove the four 1/4-in. hex-head screws and
brackets that hold the door handle to the outer
door assembly.
Door Shown with Inner Door Assembly Removed
Outer Door Assembly
Caution: Care must be taken if reinstalling the door
handle. Overtightening the screws can damage the
handle. Hand-tighten the screws and make sure the
handle fits snugly against the door panel. (Do not
use an electric driver.)
.)
Door Assemblies
1 of 2
(Continued next page)
